MUN2111T1 - onsemi
Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon
Technical Details

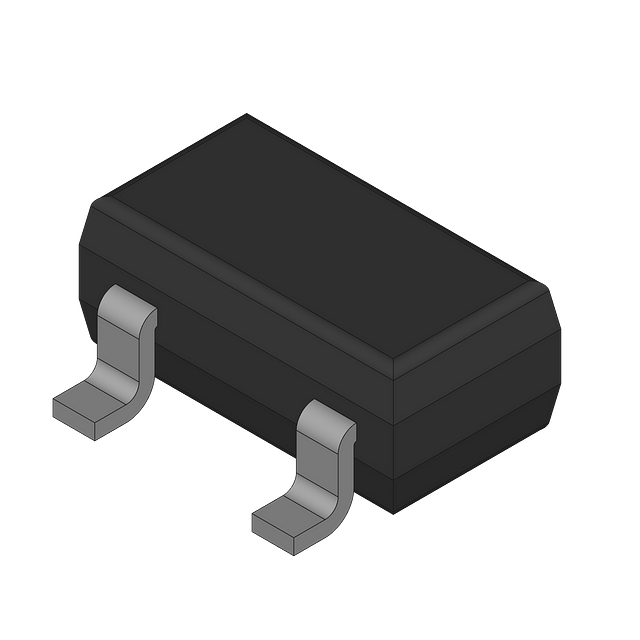

| Case/Package | TO-236-3 |
| China RoHS | Non-Compliant |
| Collector Emitter Breakdown Voltage | 50V |
| Collector Emitter Voltage (VCEO) | 50V |
| Continuous Collector Current | 100mA |
| Country of Origin | Mainland China |
| Current Rating | -100mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| hFE Min | 35 |
| Introduction Date | 1993-01-01 |
| Lead Free | Contains Lead |
| Lifecycle Status | Obsolete |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 200mW |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Polarity | PNP |
| Power Dissipation | 230mW |
| REACH SVHC | No |
| RoHS | Non-Compliant |
| Voltage Rating (DC) | -50V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
Images
Rochester Electronics
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 143230
|
$ | 0.0305 | 0.0253 | 0.0226 | |||||
| Verical |
US: 81000
|
$ | ||||||||
| Verical |
US: 42000
|
$ | ||||||||
| Verical |
US: 17500
|
$ | ||||||||
| Avnet |
US: 0
|
$ | ||||||||
