Discrete Semiconductors > Transistors > BJTs

MUN2213T1G - onsemi

Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon

Technical Details

Case/Package	SC
China RoHS	Compliant
Collector Emitter Breakdown Voltage	50V
Collector Emitter Saturation Voltage	250mV
Collector Emitter Voltage (VCEO)	50V
Contact Plating	Tin
Continuous Collector Current	100mA
Country of Origin	Mainland China
Current Rating	100mA
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Halogen Free	Halogen Free
Height	1.09mm
hFE Min	80
Introduction Date	1996-07-29
Lead Free	Lead Free
Length	2.9mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Breakdown Voltage	50V
Max Collector Current	100mA
Max Operating Temperature	150°C
Max Output Current	100mA
Max Power Dissipation	200mW
Min Operating Temperature	-55°C
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Operating Supply Voltage	50V
Packaging	Tape and Reel
Polarity	NPN
Power Dissipation	230mW
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8541210080, 8541210080\|8541210080, 8541210080\|8541210080\|8541210080, 8541210080\|8541210080\|8541210080\|8541210080
Voltage Rating (DC)	50V
Width	1.5mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

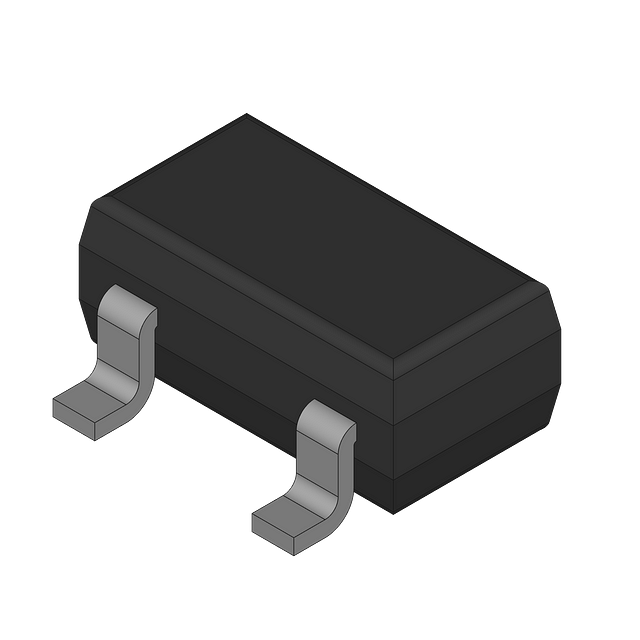

Images

onsemi MUN2213T1G | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

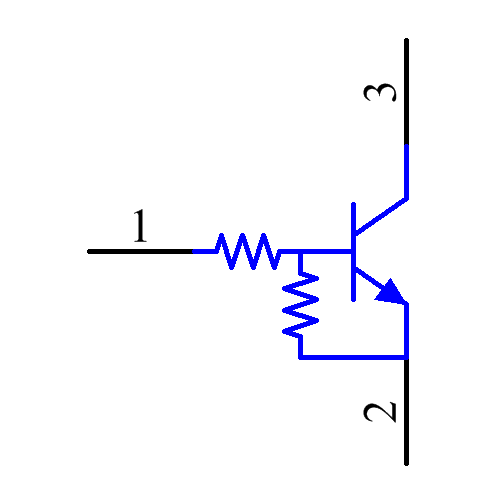

Symbol

MUN2213T1G Symbol - onsemi

MUN2213T1G Symbol - onsemi

MUN2213T1G Symbol - onsemi

MUN2213T1G Symbol - onsemi

‹ ›

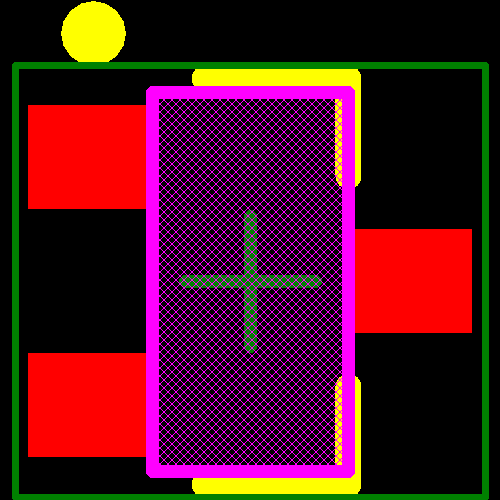

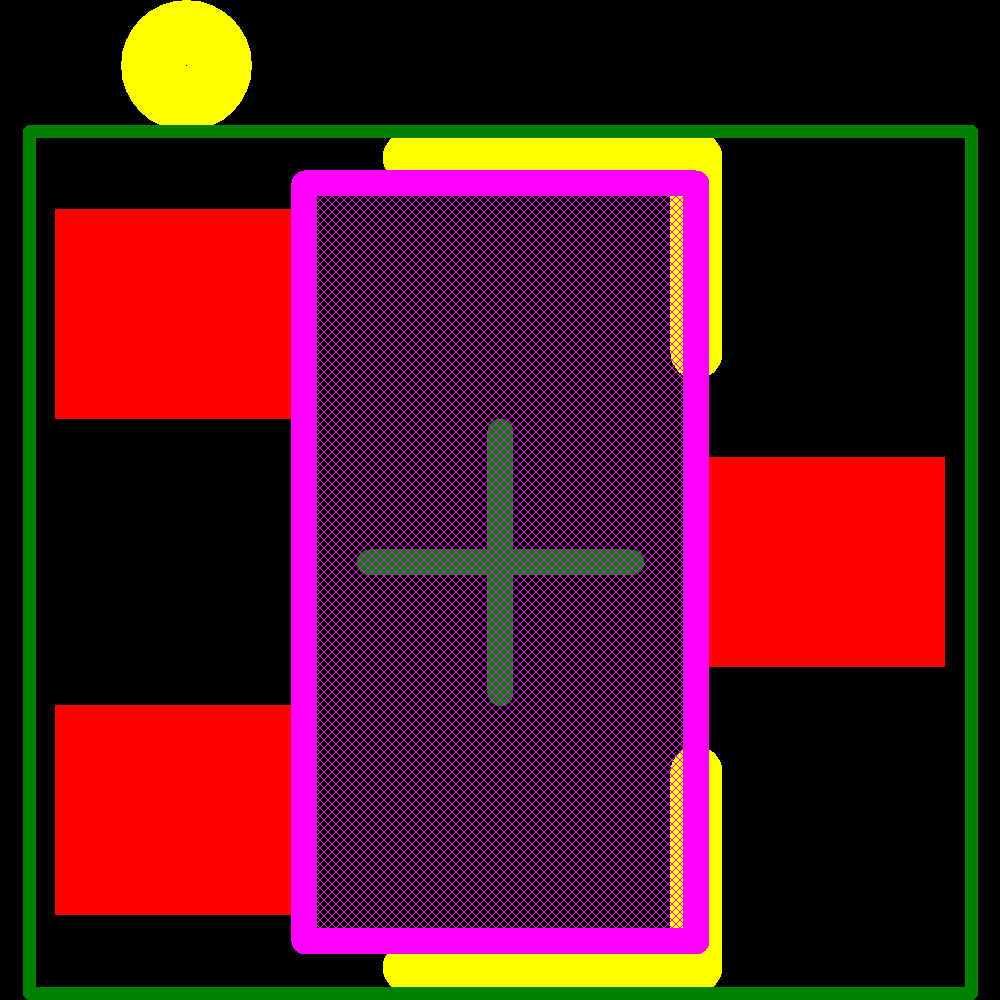

Footprint

MUN2213T1G Footprint - onsemi

MUN2213T1G Footprint - onsemi

MUN2213T1G Footprint - onsemi

MUN2213T1G Footprint - onsemi

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
onsemi	MUN2214T1	Obsolete
onsemi	MUN2213T1	Obsolete
onsemi	MUN2214T3	Obsolete
onsemi	MUN2214T1G	Production
onsemi	MUN2214T3G	Production
NXP Semiconductors	PDTC123EK,115	Obsolete
NXP Semiconductors	PBRN113EK,115	Obsolete
NXP Semiconductors	PDTD123TK,115	Obsolete
NXP Semiconductors	PDTC144TK,115	Obsolete
NXP Semiconductors	PDTC115EK,115	Obsolete

See more alternatives See less alternatives
