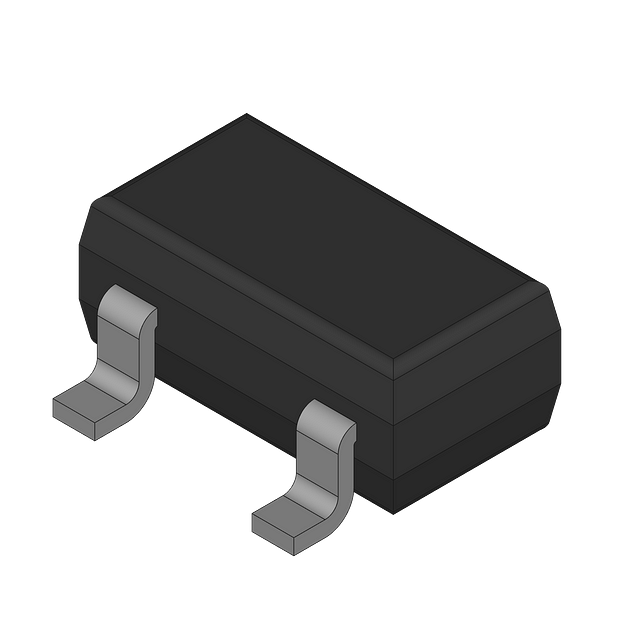

MUN2241T1 - onsemi
Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon
Technical Details
| Case/Package | TO-236-3 |
| China RoHS | Non-Compliant |
| Collector Emitter Breakdown Voltage | 50V |
| Collector Emitter Voltage (VCEO) | 50V |
| Continuous Collector Current | 100mA |
| Country of Origin | Mainland China |
| Current Rating | 100mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| hFE Min | 160 |
| Introduction Date | 1996-07-29 |
| Lead Free | Contains Lead |
| Lifecycle Status | Obsolete |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 338mW |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Packaging | Tape & Reel (TR) |
| Polarity | NPN |
| Power Dissipation | 230mW |
| REACH SVHC | No |
| RoHS | Non-Compliant |
| Voltage Rating (DC) | 50V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Production | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete |
