Discrete Semiconductors > Transistors > BJTs

MUN5133T1G - onsemi

Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon

Technical Details

Case/Package	SC
China RoHS	Compliant
Collector Emitter Breakdown Voltage	50V
Collector Emitter Voltage (VCEO)	50V
Continuous Collector Current	100mA
Current Rating	-100mA
Element Configuration	Single
Halogen Free	Halogen Free
hFE Min	80
Lead Free	Lead Free
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Breakdown Voltage	50V
Max Collector Current	100mA
Max Operating Temperature	150°C
Max Power Dissipation	310mW
Min Operating Temperature	-55°C
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Packaging	Tape and Reel
Polarity	PNP
Power Dissipation	310mW
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8541210080, 8541210080\|8541210080, 8541210080\|8541210080\|8541210080, 8541210080\|8541210080\|8541210080\|8541210080
Voltage Rating (DC)	-50V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

onsemi MUN5133T1G | Farnell

Farnell

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

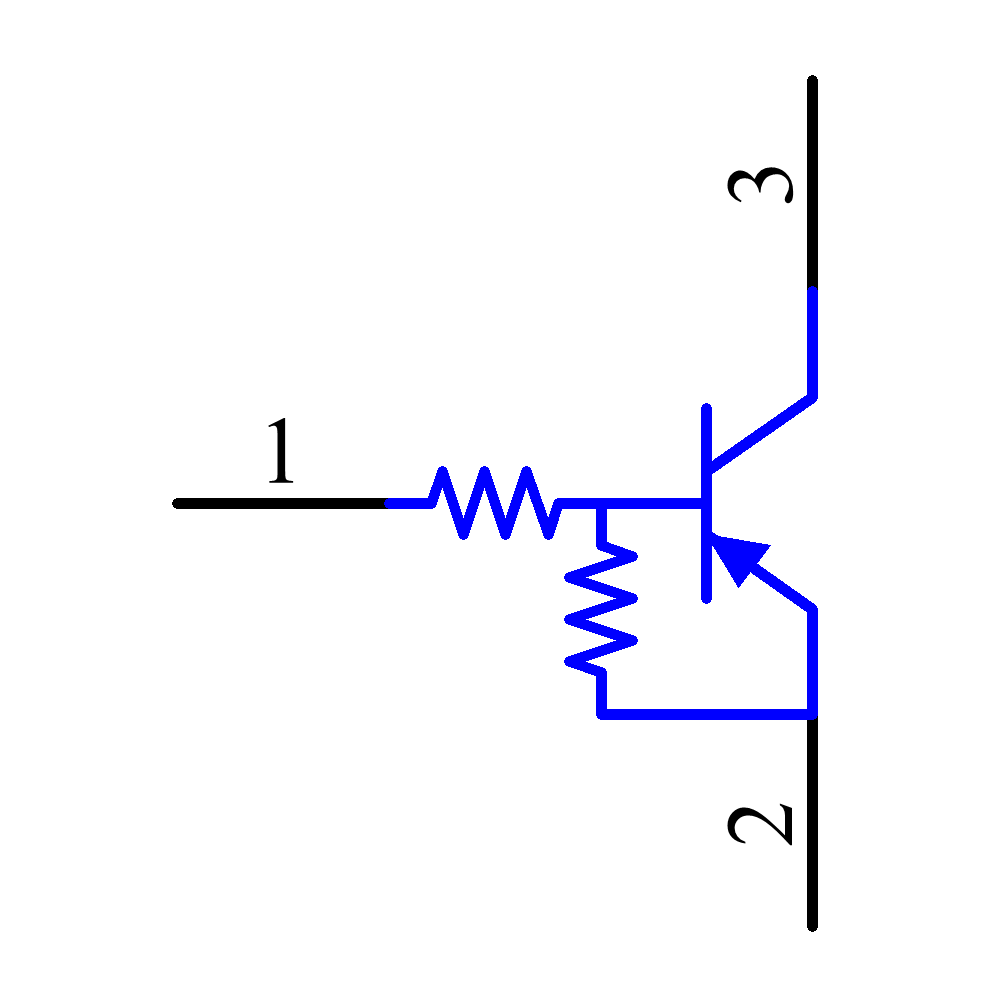

Symbol

MUN5133T1G Symbol - onsemi

MUN5133T1G Symbol - onsemi

MUN5133T1G Symbol - onsemi

MUN5133T1G Symbol - onsemi

‹ ›

Footprint

MUN5133T1G Footprint - onsemi

MUN5133T1G Footprint - onsemi

MUN5133T1G Footprint - onsemi

MUN5133T1G Footprint - onsemi

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
onsemi	MUN5113T1G	Obsolete
onsemi	MUN5113T3G	Obsolete
onsemi	MUN5114T1G	Production
onsemi	MUN5114T1	Obsolete
onsemi	MUN5113T1	Obsolete
onsemi	MUN5133T1	Obsolete
onsemi	MUN5113T3	Obsolete
onsemi	SMUN5115T1G	Production
Toshiba	RN2311	Obsolete
Toshiba	RN2308	Production
