Discrete Semiconductors > Transistors > BJTs

MUN5212T1G - onsemi

Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon

Technical Details

Case/Package	SC
China RoHS	Compliant
Collector Emitter Breakdown Voltage	50V
Collector Emitter Voltage (VCEO)	50V
Continuous Collector Current	100mA
Country of Origin	Mainland China
Current Rating	100mA
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Halogen Free	Halogen Free
hFE Min	60
Introduction Date	1996-07-29
Lead Free	Lead Free
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Breakdown Voltage	50V
Max Collector Current	100mA
Max Operating Temperature	150°C
Max Power Dissipation	310mW
Min Operating Temperature	-55°C
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Packaging	Tape and Reel
Polarity	NPN
Power Dissipation	310mW
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8541210080, 8541210080\|8541210080, 8541210080\|8541210080\|8541210080, 8541210080\|8541210080\|8541210080\|8541210080
Voltage Rating (DC)	50V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

onsemi MUN5212T1G | Future Electronics

Future Electronics

Datasheets

Future Electronics

Lifecycle Status Indicator

Production

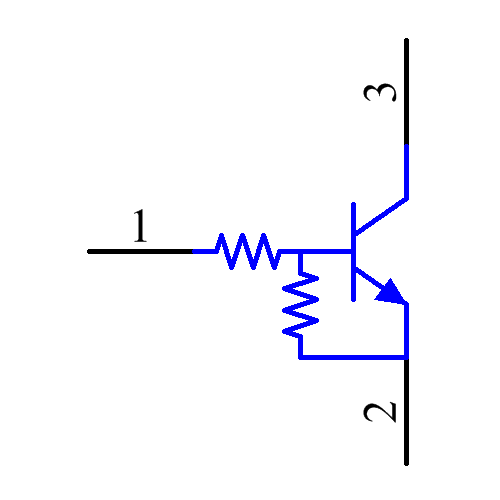

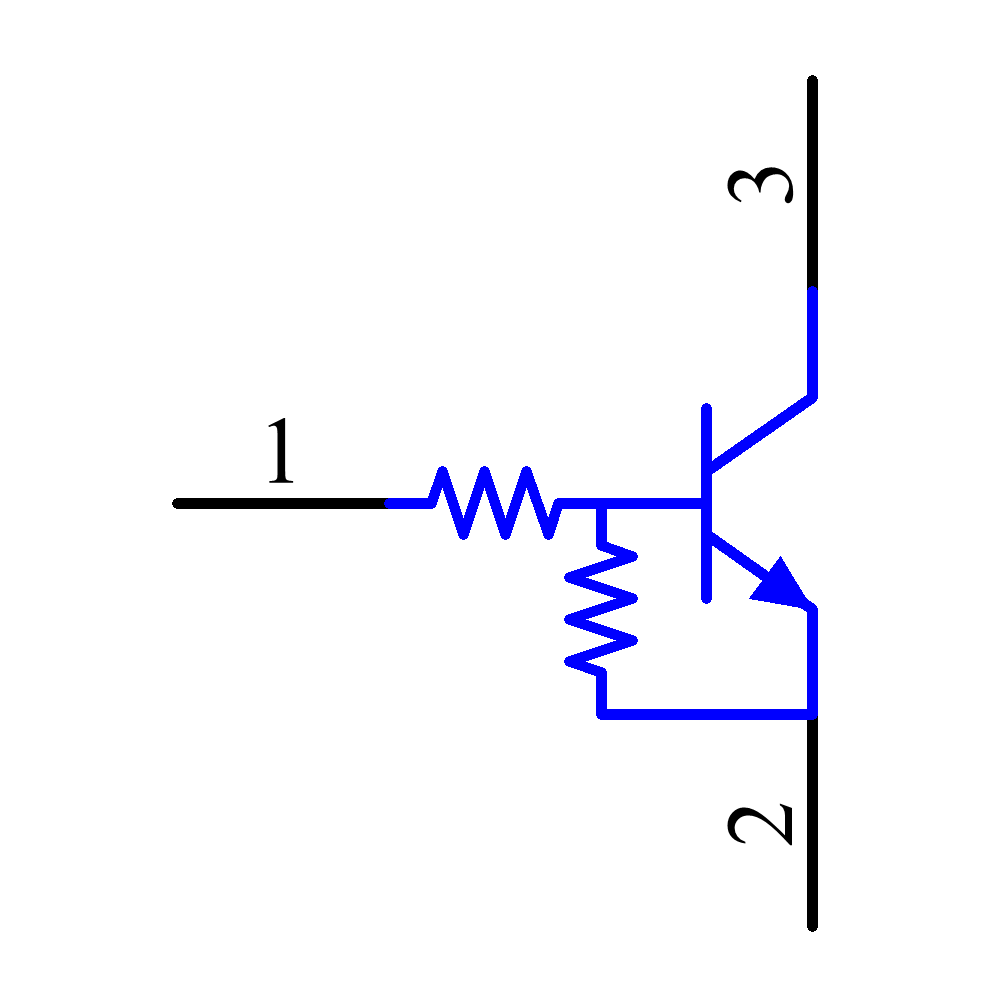

Symbol

MUN5212T1G Symbol - onsemi

MUN5212T1G Symbol - onsemi

MUN5212T1G Symbol - onsemi

MUN5212T1G Symbol - onsemi

‹ ›

Footprint

MUN5212T1G Footprint - onsemi

MUN5212T1G Footprint - onsemi

MUN5212T1G Footprint - onsemi

MUN5212T1G Footprint - onsemi

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
onsemi	MUN5212T1	Obsolete
MCC	DTC143EUA-TP	Production
MCC	DTC114TUA-TP	Production
Diodes Inc.	DDTC143FUA-7	Obsolete
onsemi	DTC114TE	Production
Renesas	GA1L4M-T1-A	Obsolete
Renesas	GA1L4Z-T1-A	Obsolete
Nexperia	PDTC114EU,135	Production
Nexperia	PDTC114EU,115	Production
Nexperia	PDTC123JU,115	Production

See more alternatives See less alternatives
