MUN5233DW1T1G - onsemi

Bipolar Pre-Biased / Digital Transistor, BRT, Dual NPN, 50 V, 100 mA, 4.7 kohm, 47 kohm

Technical Details

Case/Package	SOT-363-6
China RoHS	Compliant
Collector Emitter Breakdown Voltage	50V
Collector Emitter Voltage (VCEO)	50V
Continuous Collector Current	100mA
Current Rating	100mA
Element Configuration	Dual
hFE Min	80
Lead Free	Lead Free
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Breakdown Voltage	50V
Max Collector Current	100mA
Max Operating Temperature	150°C
Max Output Current	100mA
Max Power Dissipation	385mW
Min Operating Temperature	-55°C
Number of Elements	2
Number of Pins	6
Number of Terminals	6
Operating Supply Voltage	50V
Packaging	Tape and Reel
Polarity	NPN
Power Dissipation	187mW
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8541210080, 8541210080\|8541210080, 8541210080\|8541210080\|8541210080, 8541210080\|8541210080\|8541210080\|8541210080
Voltage Rating (DC)	50V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

onsemi MUN5233DW1T1G | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

Symbol

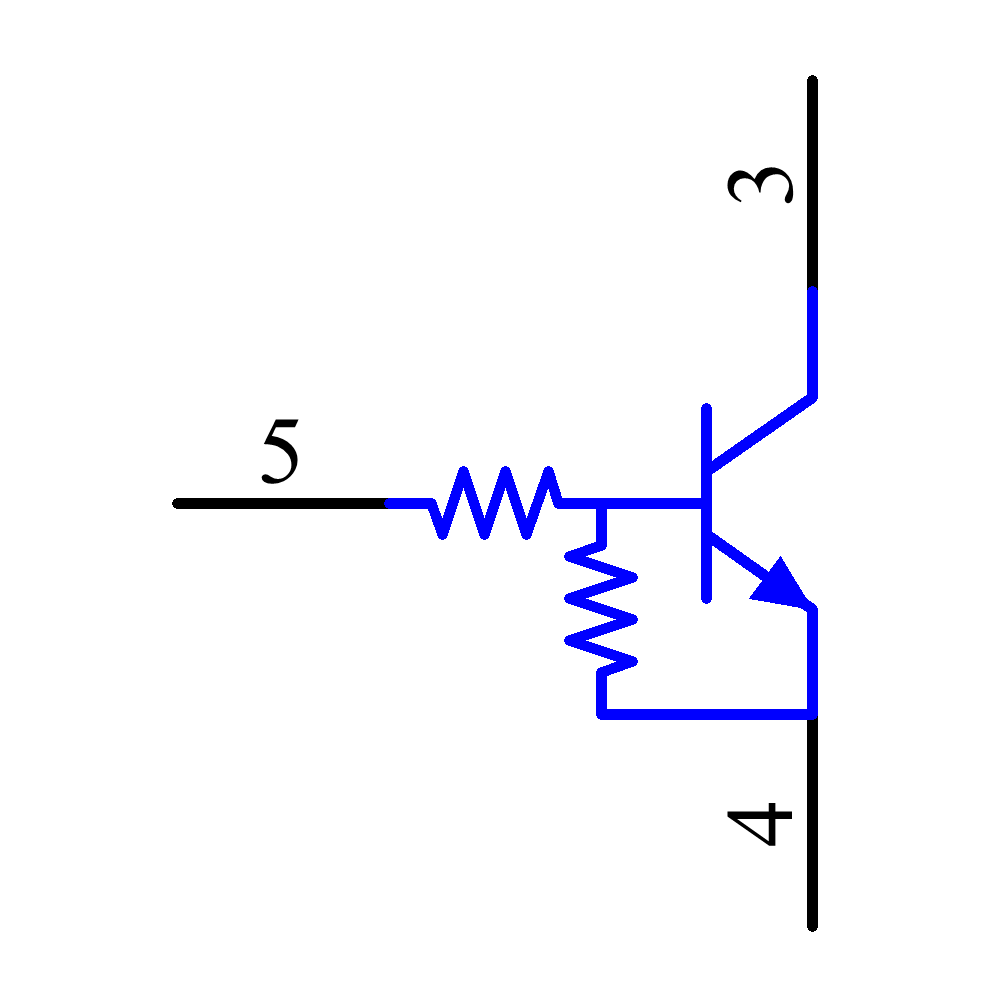

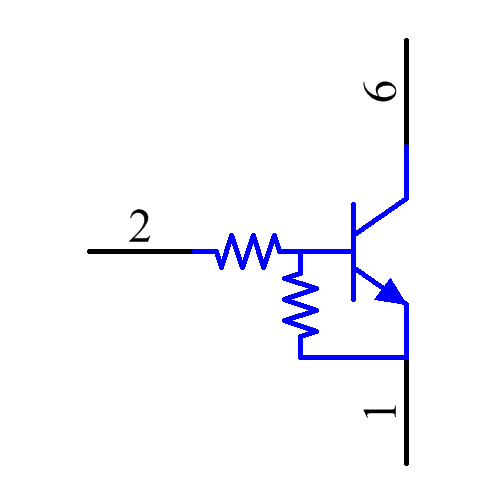

MUN5233DW1T1G Symbol - onsemi

MUN5233DW1T1G Symbol - onsemi

MUN5233DW1T1G Symbol - onsemi

MUN5233DW1T1G Symbol - onsemi

MUN5233DW1T1G Symbol - onsemi

MUN5233DW1T1G Symbol - onsemi

MUN5233DW1T1G Symbol - onsemi

MUN5233DW1T1G Symbol - onsemi

‹ ›

Footprint

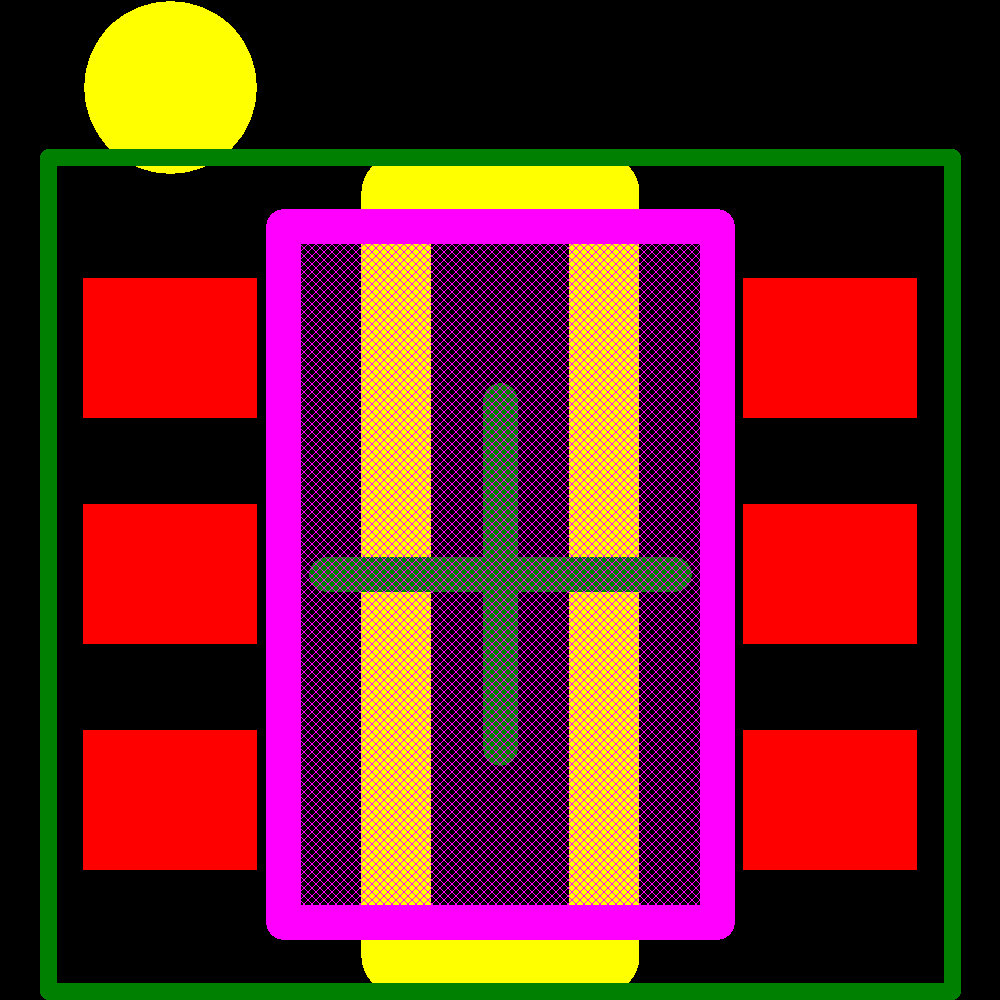

MUN5233DW1T1G Footprint - onsemi
