Technical Details
| Case/Package | SOT-363-6 |
| China RoHS | Compliant |
| Collector Emitter Breakdown Voltage | 50V |
| Collector Emitter Voltage (VCEO) | 50V |
| Continuous Collector Current | 100mA |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Dual |
| hFE Min | 60 |
| Introduction Date | 1997-09-01 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 385mW |
| Min Operating Temperature | -55°C |
| Number of Elements | 2 |
| Number of Pins | 6 |
| Number of Terminals | 6 |
| Packaging | Tape and Reel |
| Polarity | NPN, PNP |
| Power Dissipation | 187mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

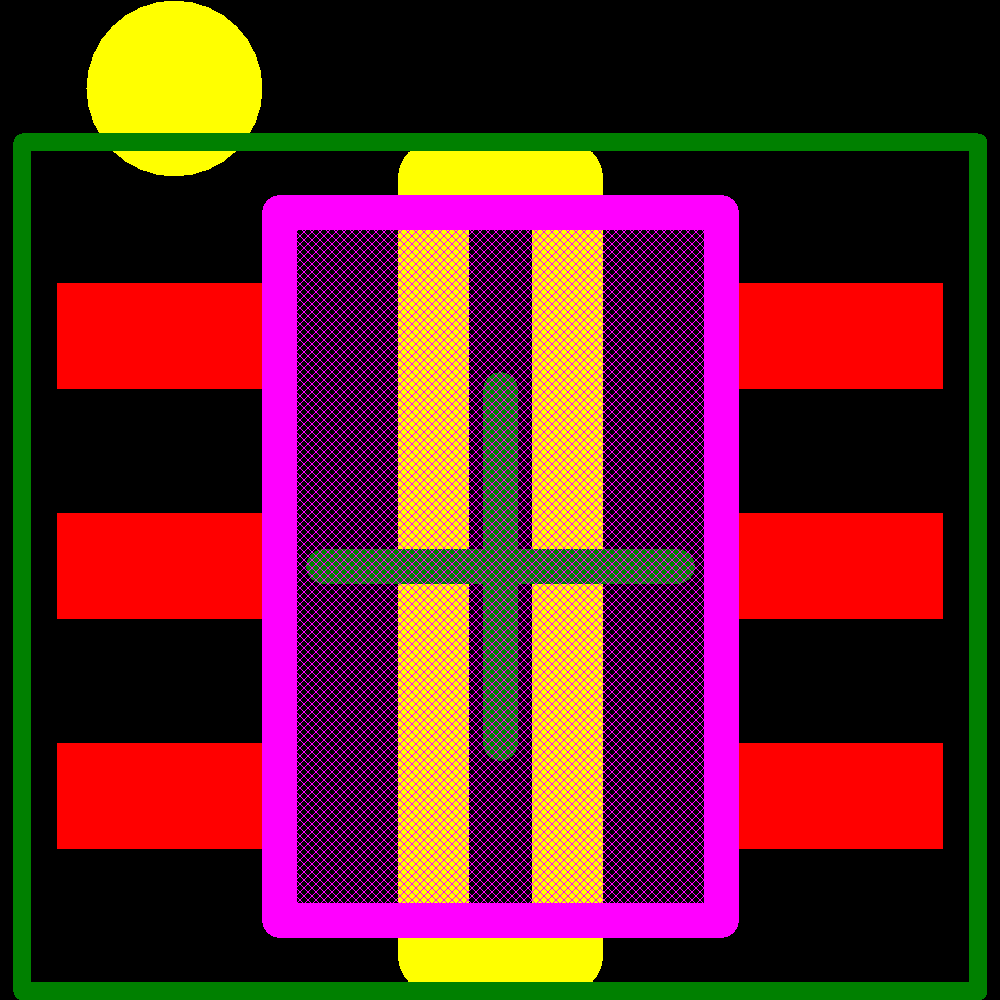

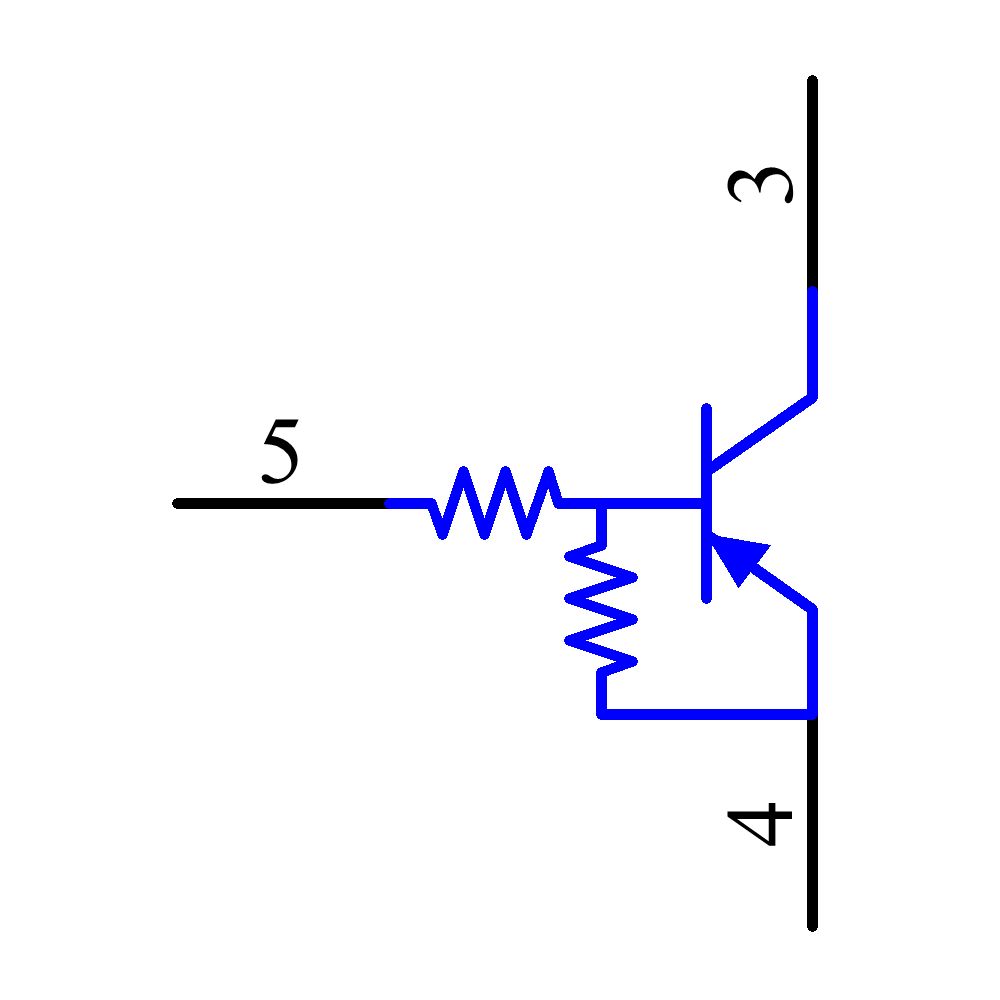

Images
