NCL30001DR2G - onsemi

NCL30001 Series 11.3 V Isolated Step-Down Single Stage Power Factor - SOIC-16

Technical Details

Case/Package	SOP
China RoHS	Compliant
Frequency	250kHz
Halogen Free	Halogen Free
Height	1.5mm
Height - Seated (Max)	1.75mm
Lead Free	Lead Free
Length	9.9mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Duty Cycle	90%
Max Operating Temperature	125°C
Max Supply Current	7.2mA
Max Supply Voltage	11.3V
Max Switching Frequency	110kHz
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Channels	1
Number of Circuits	1
Number of Outputs	1
Number of Pins	16
Number of Terminals	16
Operating Supply Voltage	15V
Output Voltage	20V
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Switching Frequency	100kHz
Temperature Grade	Automotive
Terminal Pitch	1.27mm
Topology	Buck
Width	3.9mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

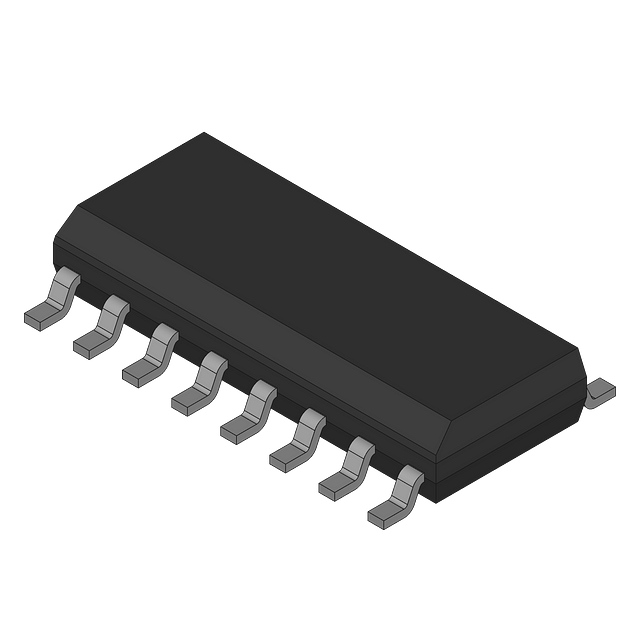

onsemi NCL30001DR2G | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production
