NCP1117DT18G - onsemi
1.0 A Positive LDO Linear Voltage Regulator (Fixed and Adjustable), V out : 1.8 V
Technical Details
| Accuracy | 1% |
| Case/Package | TO-252 |
| China RoHS | Non-Compliant |
| Country of Origin | Malaysia |
| Current Rating | 1A |
| Dropout Voltage | 1.07V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Halogen Free | Halogen Free |
| Height | 2.38mm |
| Height - Seated (Max) | 2.38mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Input Bias Current | 4.2mA |
| Introduction Date | 2001-10-11 |
| Lead Free | Lead Free |
| Length | 6.54mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Input Voltage | 11.8V |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 125°C |
| Max Output Current | 2.2A |
| Min Current Limit | 1A |
| Min Input Voltage | 3.2V |
| Min Operating Temperature | 0°C |
| Min Output Voltage | 1.8V |
| Mount | Surface Mount |
| Nominal Output Voltage | 1.8V |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 3 |
| Number of Regulators | 1 |
| Number of Terminals | 2 |
| Output Current | 1A |
| Output Type | Fixed |
| Output Voltage | 1.8V |
| Output Voltage Accuracy | 1% |
| Polarity | Positive |
| Quiescent Current | 10mA |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reference Voltage | 1.25V |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000, 8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000 |
| Terminal Pitch | 2.29mm |
| Voltage Tolerance | 2.5% |
| Width | 6.095mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

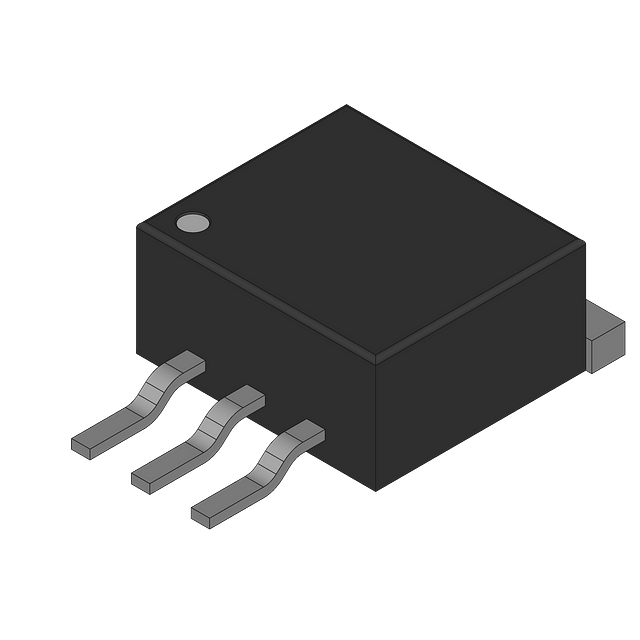

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Production | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| Texas Instruments | Unknown | ||
| onsemi | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Obsolete |
