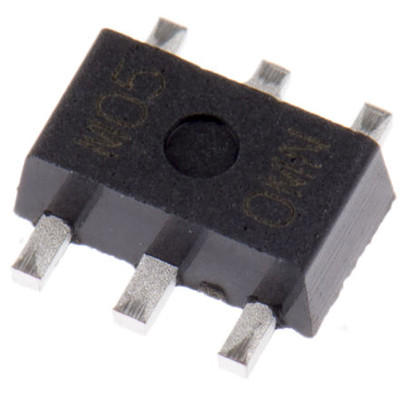

NCP4641H050T1G - onsemi
NCP4641 Series 150 mA 5 V Fixed Output SMT Linear Voltage Regulator - SOT-89-5
Technical Details
| Accuracy | 2% |
| Case/Package | SOT-89 |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Dropout Voltage | 200mV |
| Halogen Free | Halogen Free |
| Height | 1.6mm |
| Height - Seated (Max) | 1.6mm |
| Lead Free | Lead Free |
| Length | 4.5mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Input Voltage | 36V |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Output Current | 150mA |
| Max Power Dissipation | 900mW |
| Min Input Voltage | 4V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 5V |
| Mount | Surface Mount |
| Nominal Output Voltage | 5V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 5 |
| Number of Regulators | 1 |
| Number of Terminals | 5 |
| Output Current | 150mA |
| Output Type | Fixed |
| Output Voltage | 5V |
| Output Voltage Accuracy | 2% |
| Packaging | Cut Tape |
| Polarity | Positive |
| Power Dissipation | 900mW |
| Power Supply Rejection Ratio (PSRR) | 27dB |
| Quiescent Current | 20µA |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Terminal Pitch | 1.5mm |
| Voltage Tolerance | 2% |
| Width | 2.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
Images
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Farnell |
GB: 0
|
$ | 1.5922 | 1.5922 | 1.2411 | 1.0792 | 0.6641 | 0.6478 | ||
| Farnell |
GB: 0
|
$ | 1.0792 | 0.6641 | 0.6478 | |||||
