NCV8403A Series 42 V 15 A Surface Mount Self-Protected Low Side Driver - SOT-223

 Datasheets

Technical Details

Case/Package SOP
China RoHS Non-Compliant
Country of Origin Malaysia
Drain to Source Breakdown Voltage 51V
Drain to Source Resistance 53mΩ
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
Fault Protection Over Temperature, Over Voltage
Gate to Source Voltage (Vgs) 14V
Halogen Free Halogen Free
Height - Seated (Max) 1.75mm
Harmonized Tariff Schedule (HTS) Code 8542.39.00.60
Interface On/Off
Introduction Date 2011-11-10
Lead Free Lead Free
Length 6.5mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Operating Temperature 150°C
Max Output Current 17A
Min Operating Temperature -40°C
Number of Channels 1
Number of Circuits 1
Number of Elements 1
Number of Outputs 1
Number of Pins 4
Number of Terminals 4
Number of Transmitters 1
Operating Supply Voltage 10V
Output Configuration Low Side
Packaging Tape and Reel
Power Dissipation 1.13W
Radiation Hardening No
REACH SVHC No
Resistance 53mΩ
RoHS Compliant
Schedule B 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|85
Terminal Pitch 2.3mm
Width 3.5mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

onsemi NCV8403ASTT1G | Onlinecomponents.com

Onlinecomponents.com

Datasheets

 RS
 RS
 RS

Lifecycle Status Indicator

   Production

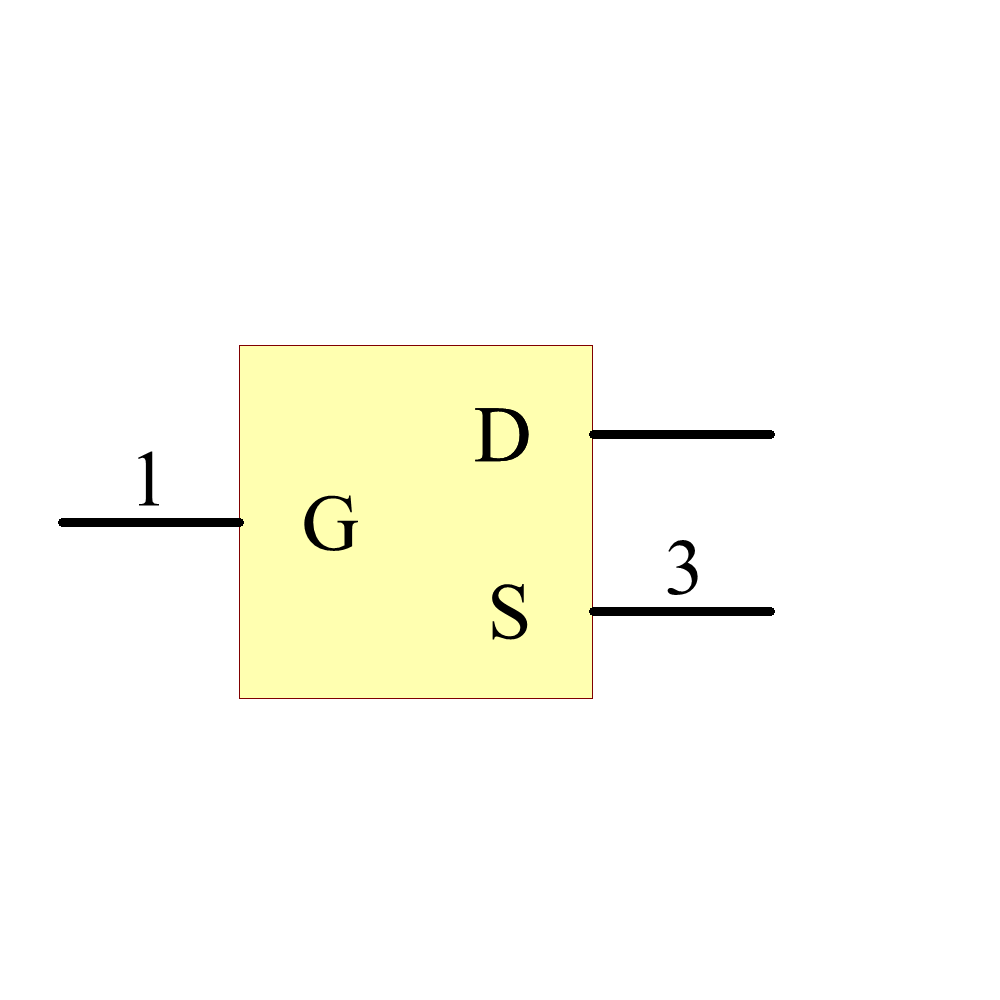

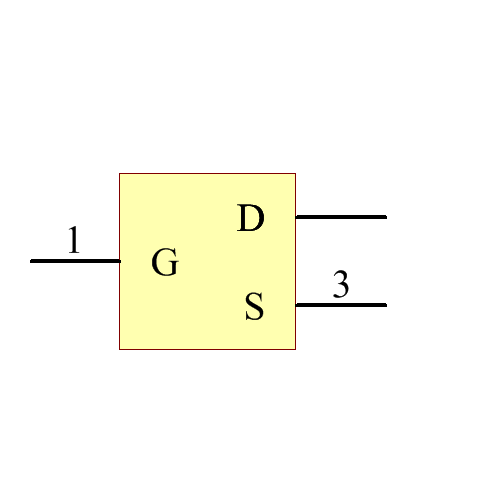

Symbol

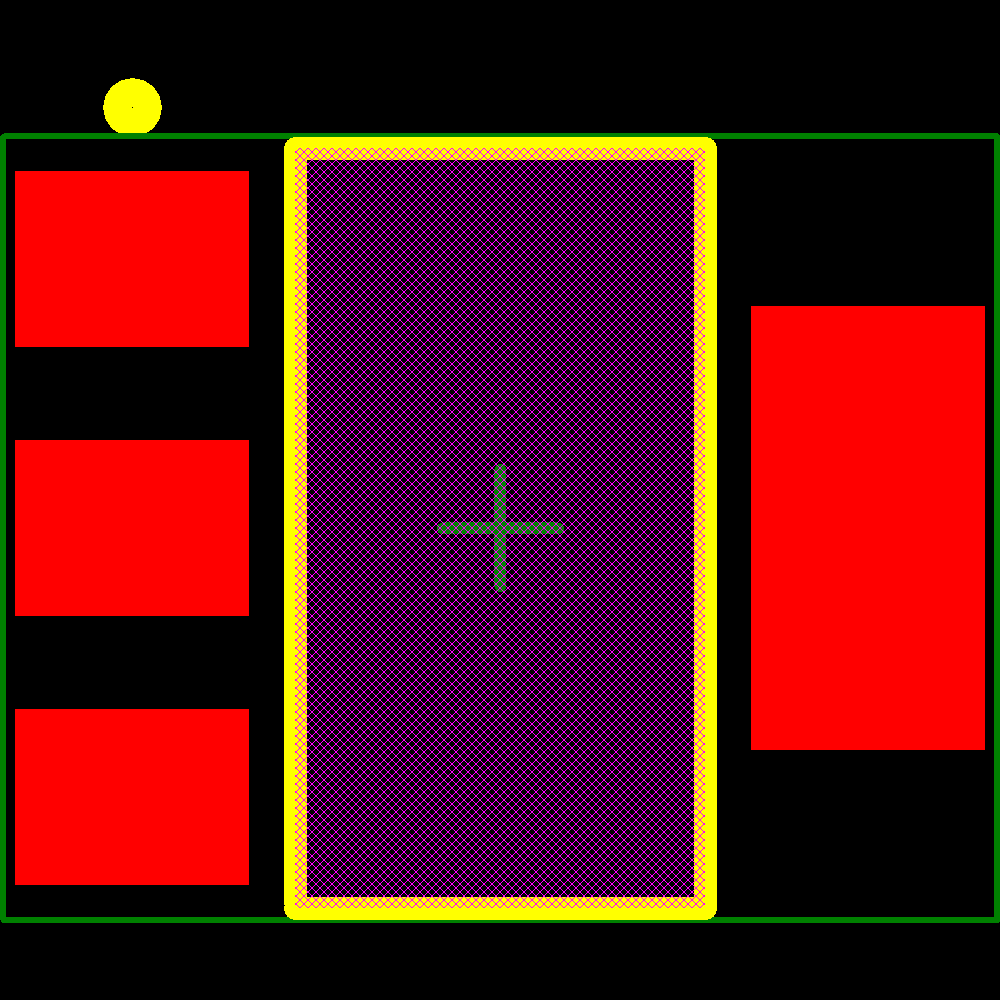

Footprint
