NJVMJB44H11T4G - onsemi

Bipolar Power Transistor, NPN, 10 A, 80 V, 50 Watt

Technical Details

Case/Package	D2PAK
China RoHS	Non-Compliant
Collector Base Voltage (VCBO)	10V
Collector Emitter Breakdown Voltage	80V
Collector Emitter Saturation Voltage	1V
Collector Emitter Voltage (VCEO)	80V
Country of Origin	Malaysia
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Emitter Base Voltage (VEBO)	5V
Frequency	50MHz
Gain Bandwidth Product	50MHz
Height	4.83mm
hFE Min	40
Introduction Date	2001-04-12
Lead Free	Lead Free
Length	10.29mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Collector Current	10A
Max Frequency	20MHz
Max Operating Temperature	150°C
Max Power Dissipation	50W
Min Operating Temperature	-55°C
Number of Elements	1
Number of Pins	3
Number of Terminals	2
Packaging	Tape and Reel
Polarity	NPN
Power Dissipation	2W
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Transition Frequency	50MHz
Width	11.05mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

onsemi NJVMJB44H11T4G | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

Symbol

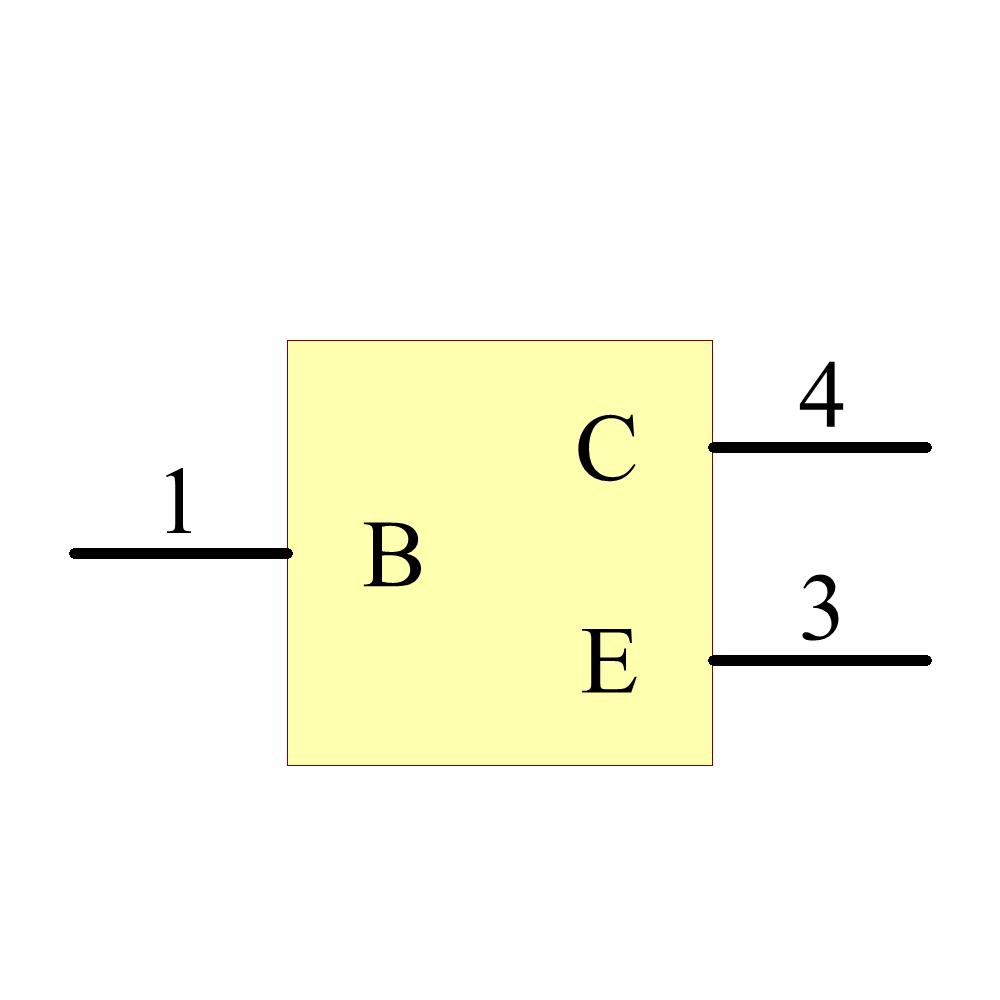

NJVMJB44H11T4G Symbol - onsemi

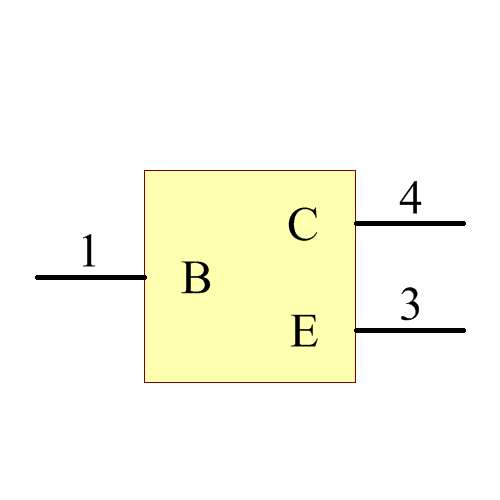

NJVMJB44H11T4G Symbol - onsemi

NJVMJB44H11T4G Symbol - onsemi

NJVMJB44H11T4G Symbol - onsemi

‹ ›

Footprint

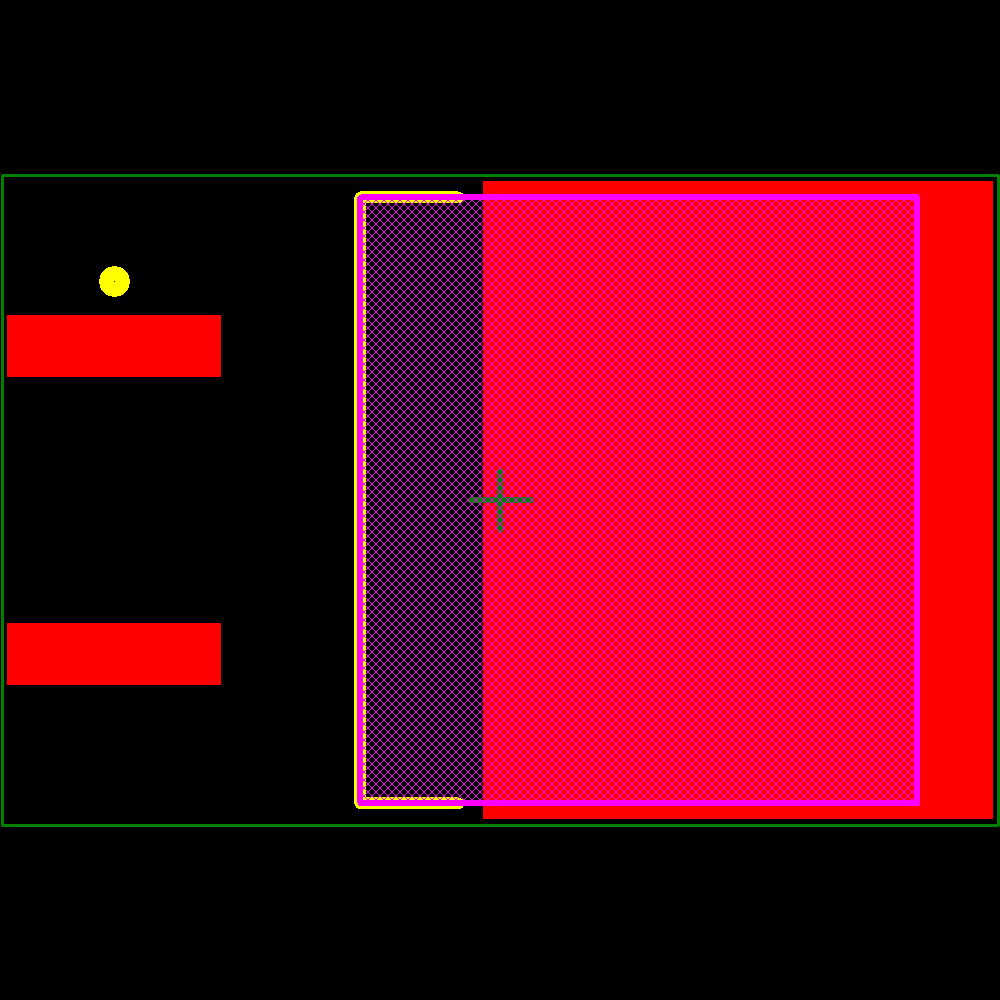

NJVMJB44H11T4G Footprint - onsemi
