Discrete Semiconductors > Transistors > BJTs

NJVMJD122T4G - onsemi

Power Bipolar Transistor, 8A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 2 Pin

Technical Details

Case/Package	DPAK
China RoHS	Non-Compliant
Collector Base Voltage (VCBO)	100V
Collector Emitter Breakdown Voltage	100V
Collector Emitter Saturation Voltage	2V
Collector Emitter Voltage (VCEO)	100V
Element Configuration	Single
Emitter Base Voltage (VEBO)	5V
Halogen Free	Halogen Free
Height	2.38mm
hFE Min	100
Lead Free	Lead Free
Length	6.73mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Breakdown Voltage	100V
Max Collector Current	8A
Max Operating Temperature	150°C
Max Power Dissipation	20W
Min Operating Temperature	-65°C
Number of Elements	1
Number of Pins	3
Number of Terminals	2
Packaging	Tape and Reel
Polarity	NPN
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Transition Frequency	4MHz
Width	6.22mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

onsemi NJVMJD122T4G | Future Electronics

Future Electronics

Datasheets

Lifecycle Status Indicator

Production

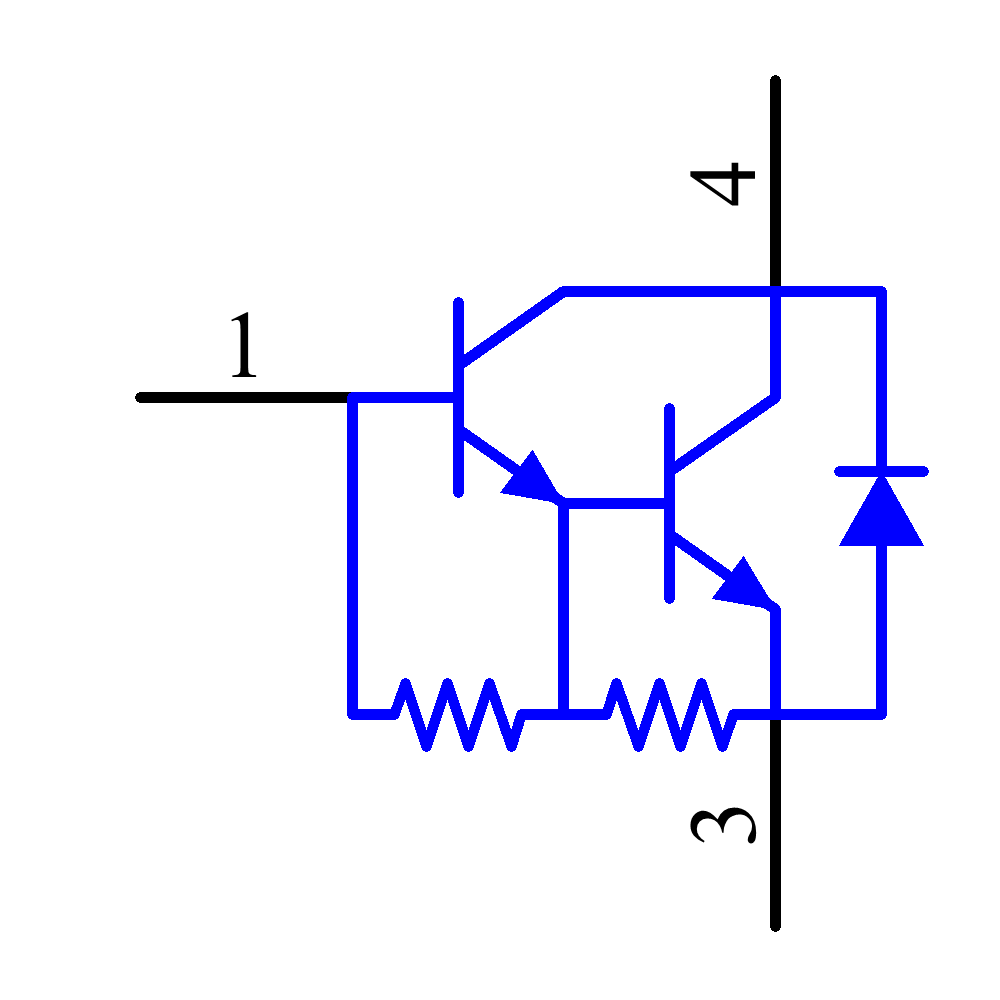

Symbol

NJVMJD122T4G Symbol - onsemi

NJVMJD122T4G Symbol - onsemi

NJVMJD122T4G Symbol - onsemi

NJVMJD122T4G Symbol - onsemi

‹ ›

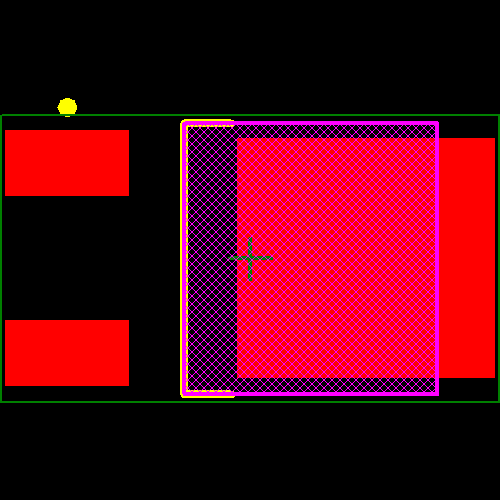

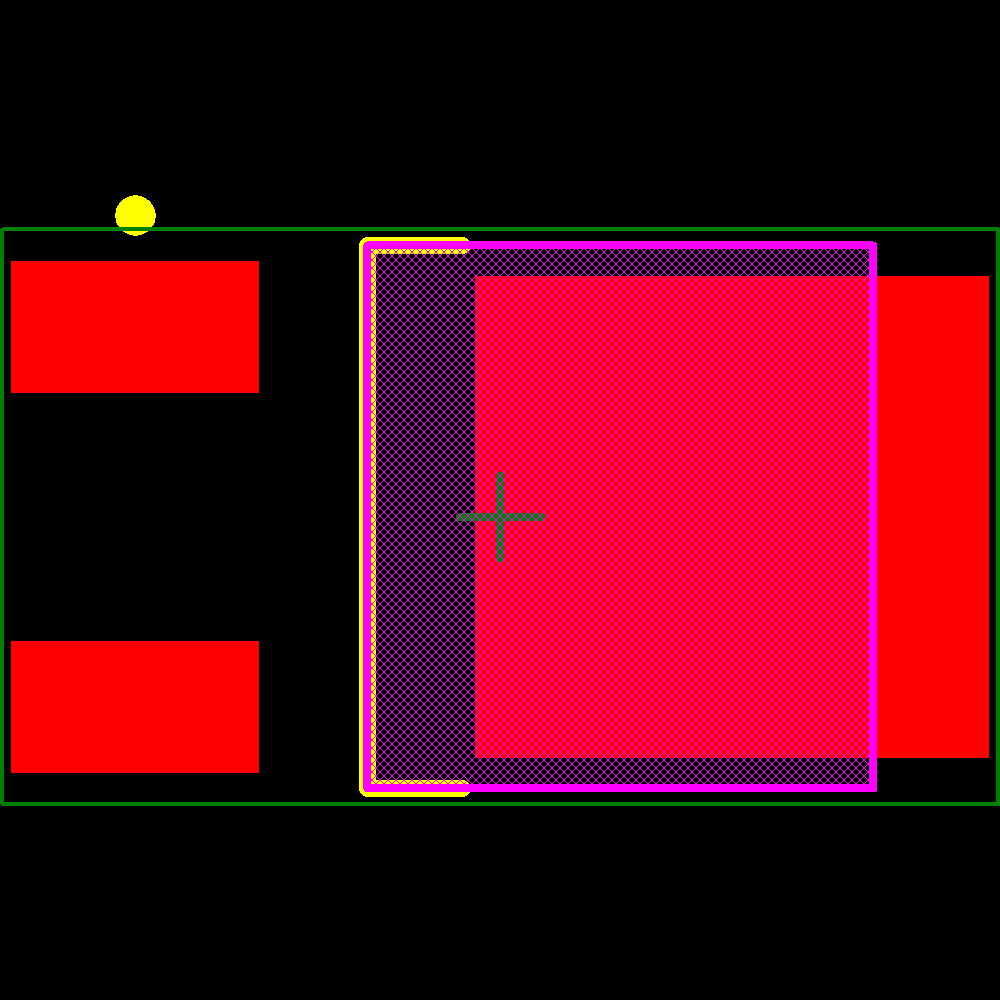

Footprint

NJVMJD122T4G Footprint - onsemi

NJVMJD122T4G Footprint - onsemi

NJVMJD122T4G Footprint - onsemi

NJVMJD122T4G Footprint - onsemi

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Central Semiconductor	CJD122	Obsolete
MCC	MJD122-TP	Production
onsemi	MJD122	Obsolete
onsemi	MJD122T4G	Production
onsemi	MJD122T4	Obsolete
onsemi	KSH122	Obsolete
onsemi	MJD122G	Production
onsemi	KSH122TM	Obsolete
onsemi	KSH122TF	Obsolete
onsemi	MJD122TF	Obsolete

See more alternatives See less alternatives
