NJW21193G - onsemi

Bipolar Power Transistors, Complementary, 16 A, 250 V PNP

Technical Details

Case/Package	TO-220-3
China RoHS	Non-Compliant
Collector Base Voltage (VCBO)	400V
Collector Emitter Breakdown Voltage	350V
Collector Emitter Saturation Voltage	4V
Collector Emitter Voltage (VCEO)	250V
Element Configuration	Single
Emitter Base Voltage (VEBO)	5V
Frequency	4MHz
Gain Bandwidth Product	4MHz
Height	20.1mm
hFE Min	8
Lead Free	Lead Free
Length	15.8mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Breakdown Voltage	250V
Max Collector Current	16A
Max Frequency	4MHz
Max Operating Temperature	150°C
Max Power Dissipation	200W
Min Operating Temperature	-65°C
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Polarity	PNP
Power Dissipation	200mW
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8541210080
Transition Frequency	4MHz
Width	5mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

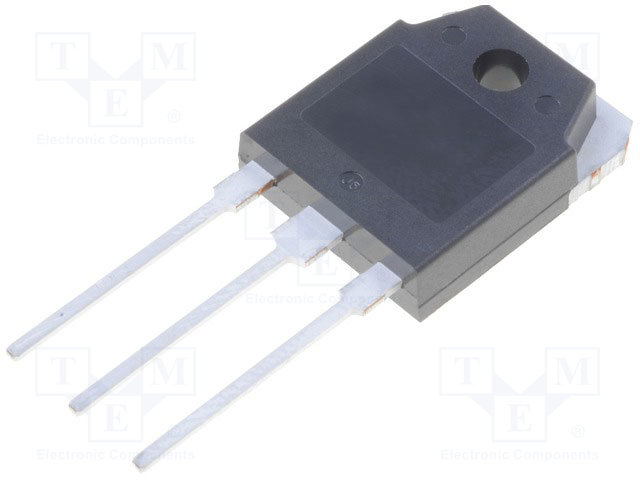

onsemi NJW21193G | Master Electronics

Master Electronics

Datasheets

Master Electronics

Onlinecomponents.com

Lifecycle Status Indicator

Production

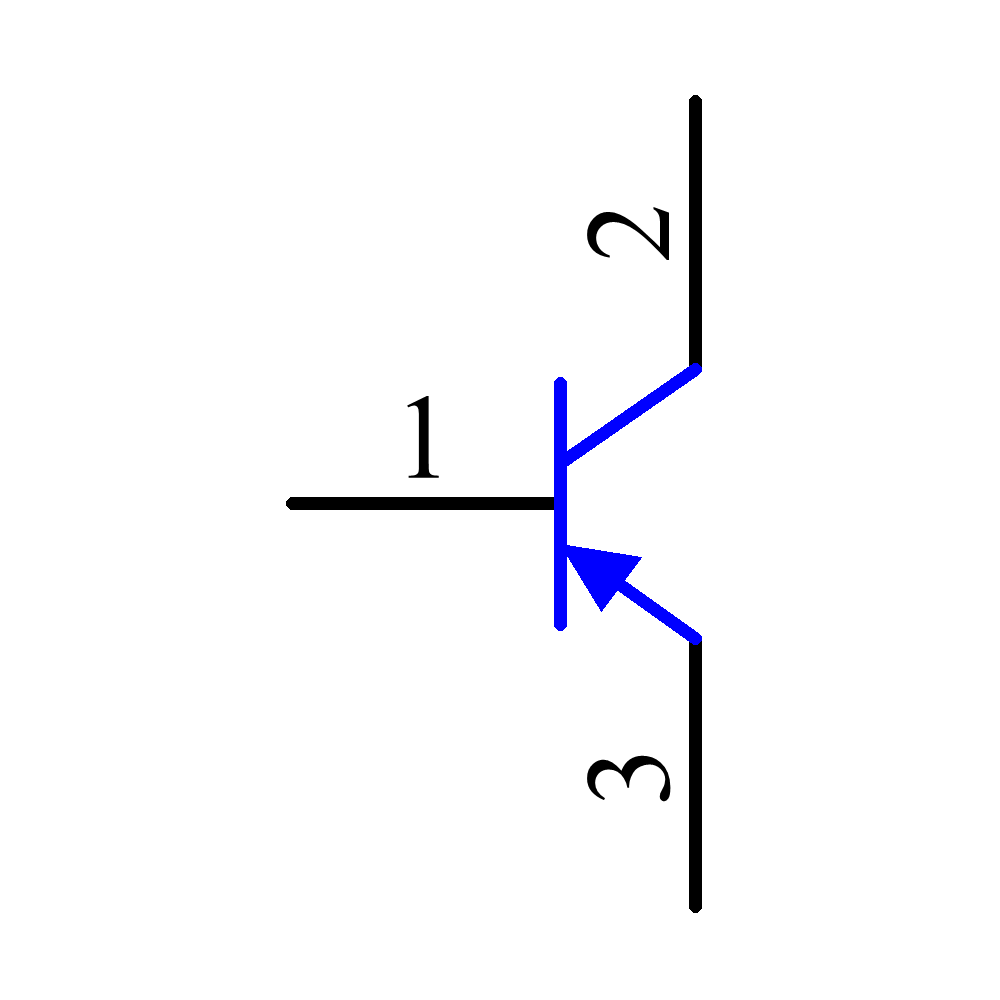

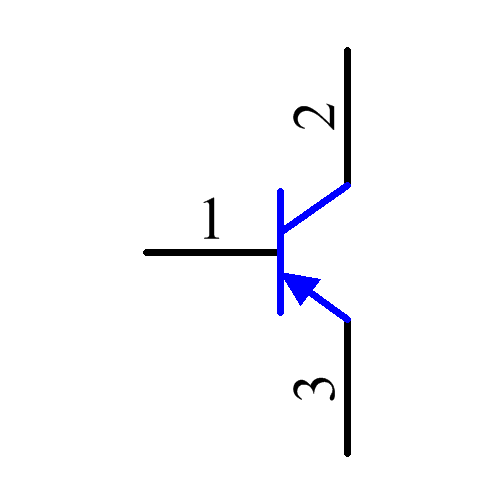

Symbol

NJW21193G Symbol - onsemi

NJW21193G Symbol - onsemi

NJW21193G Symbol - onsemi

NJW21193G Symbol - onsemi

‹ ›

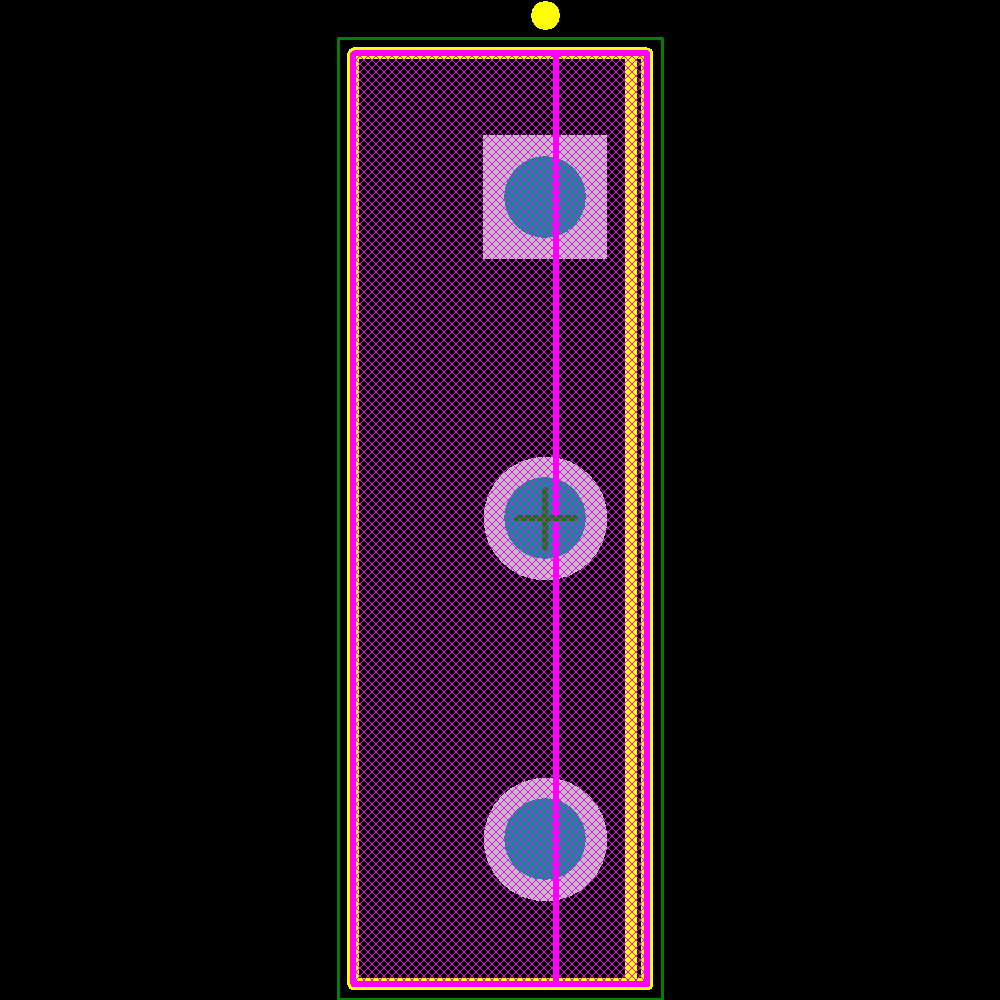

Footprint
