NP1100SAT3G - onsemi
DO-214AA SMB 1 Surface Mount SILICON SURGE PROTECTOR TVS Thyristor 130V 2.2A 58pF 150C
Technical Details
| Capacitance | 58pF |
| Case/Package | SMB |
| China RoHS | Non-Compliant |
| Contact Plating | Tin |
| Country of Origin | Malaysia |
| Current Rating | 2.2A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Hold Current | 150mA |
| Harmonized Tariff Schedule (HTS) Code | 8541.30.00.80 |
| Introduction Date | 2006-11-14 |
| Lead Free | Lead Free |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Tape & Reel (TR) |
| Peak Pulse Current | 50A |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8541300080|8541300080, 8541300080|8541300080|8541300080|8541300080|8541300080 |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

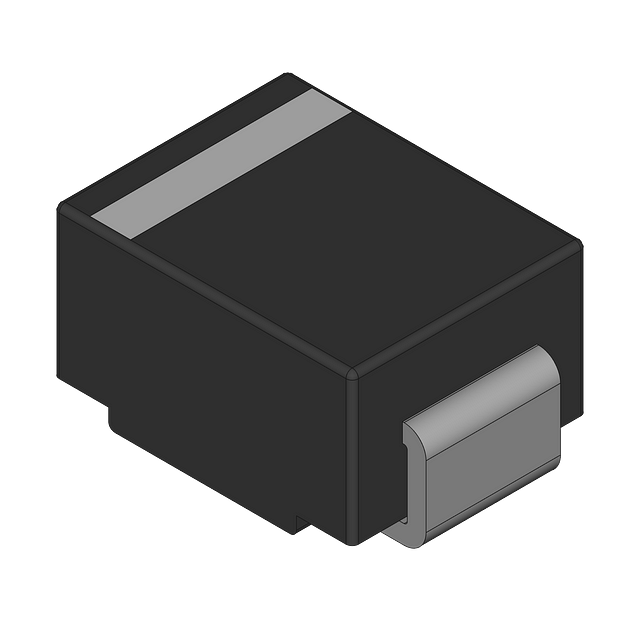

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Diodes Inc. | NRND | ||
| Littelfuse | Production | ||
| Diodes Inc. | Obsolete | ||
| Littelfuse | Production | ||
| Littelfuse | Obsolete | ||
| Bourns | Production | ||
| STMicroelectronics | Production | ||
| Littelfuse | Obsolete | ||
| Littelfuse | Obsolete | ||
| Littelfuse | Obsolete |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 12490
|
$ | 0.2111 | 0.1752 | 0.1562 | |||||
| Verical |
US: 7490
|
$ | 0.1953 | |||||||
| Verical |
US: 5000
|
$ | 0.1953 | |||||||
