Discrete Semiconductors > Transistors > BJTs

NSBC114EDXV6T1G - onsemi

NSBC114ED - 50 V 100 mA Dual NPN SMT Bias Resistor Transistor - SOT-563

Technical Details

Case/Package	SOT-563-6
China RoHS	Compliant
Collector Emitter Breakdown Voltage	50V
Collector Emitter Voltage (VCEO)	50V
Contact Plating	Tin
Continuous Collector Current	100mA
Current Rating	100mA
Element Configuration	Dual
hFE Min	35
Lead Free	Lead Free
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Breakdown Voltage	50V
Max Collector Current	100mA
Max Operating Temperature	150°C
Max Power Dissipation	500mW
Min Operating Temperature	-55°C
Number of Elements	2
Number of Pins	6
Number of Terminals	6
Packaging	Tape and Reel
Polarity	NPN
Power Dissipation	357mW
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8541210080, 8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|85
Voltage Rating (DC)	50V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

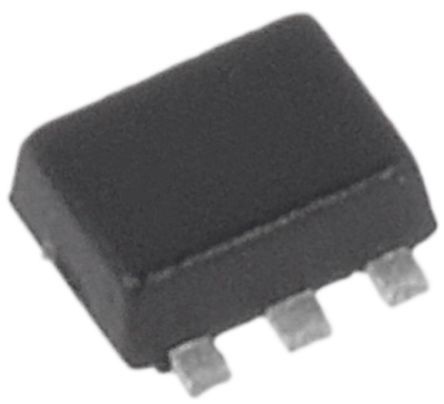

onsemi NSBC114EDXV6T1G | RS

RS

Datasheets

Lifecycle Status Indicator

Production

Symbol

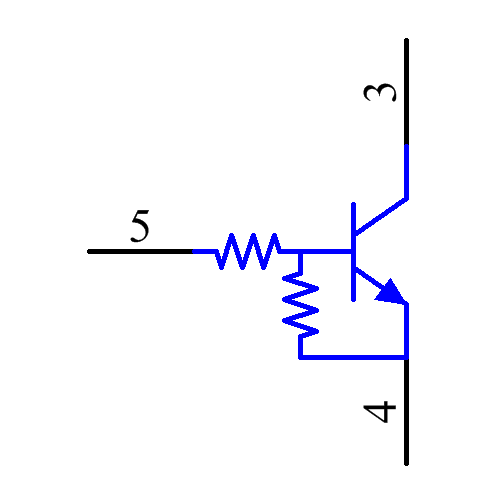

NSBC114EDXV6T1G Symbol - onsemi

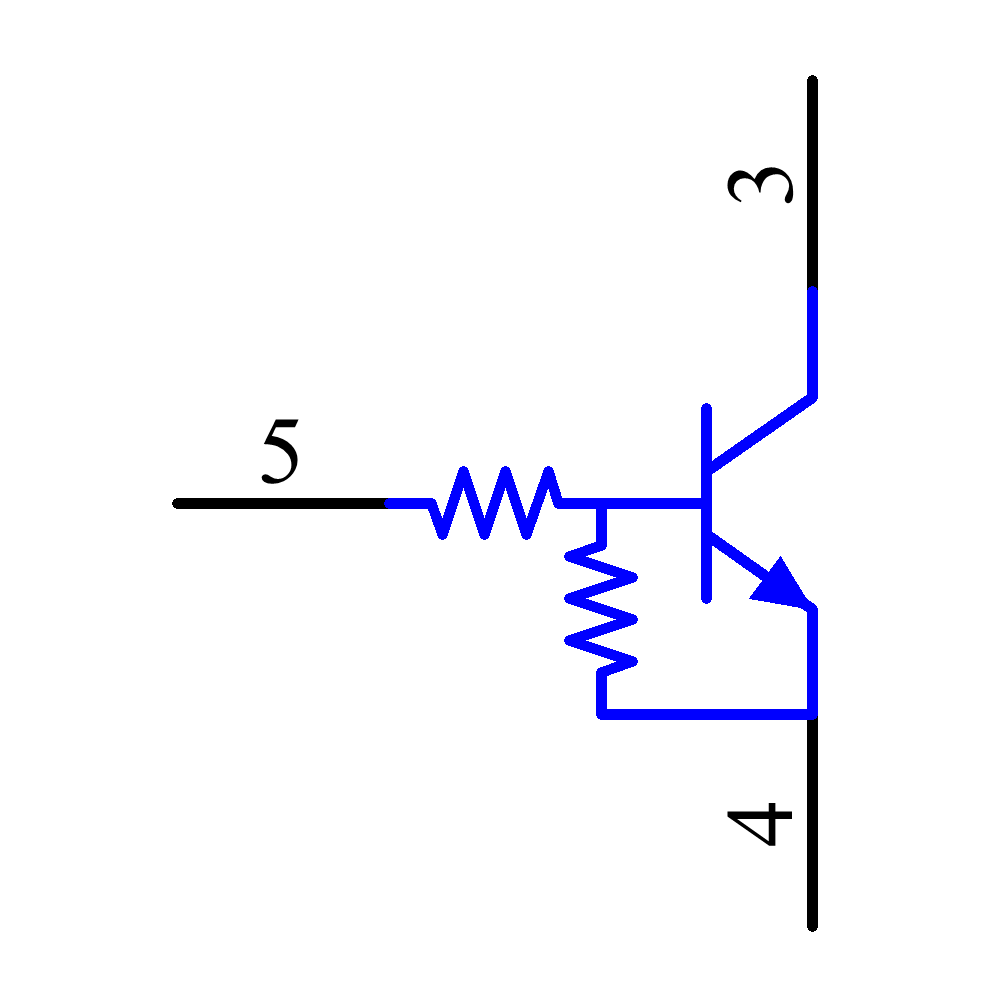

NSBC114EDXV6T1G Symbol - onsemi

NSBC114EDXV6T1G Symbol - onsemi

NSBC114EDXV6T1G Symbol - onsemi

NSBC114EDXV6T1G Symbol - onsemi

NSBC114EDXV6T1G Symbol - onsemi

NSBC114EDXV6T1G Symbol - onsemi

NSBC114EDXV6T1G Symbol - onsemi

‹ ›

Footprint

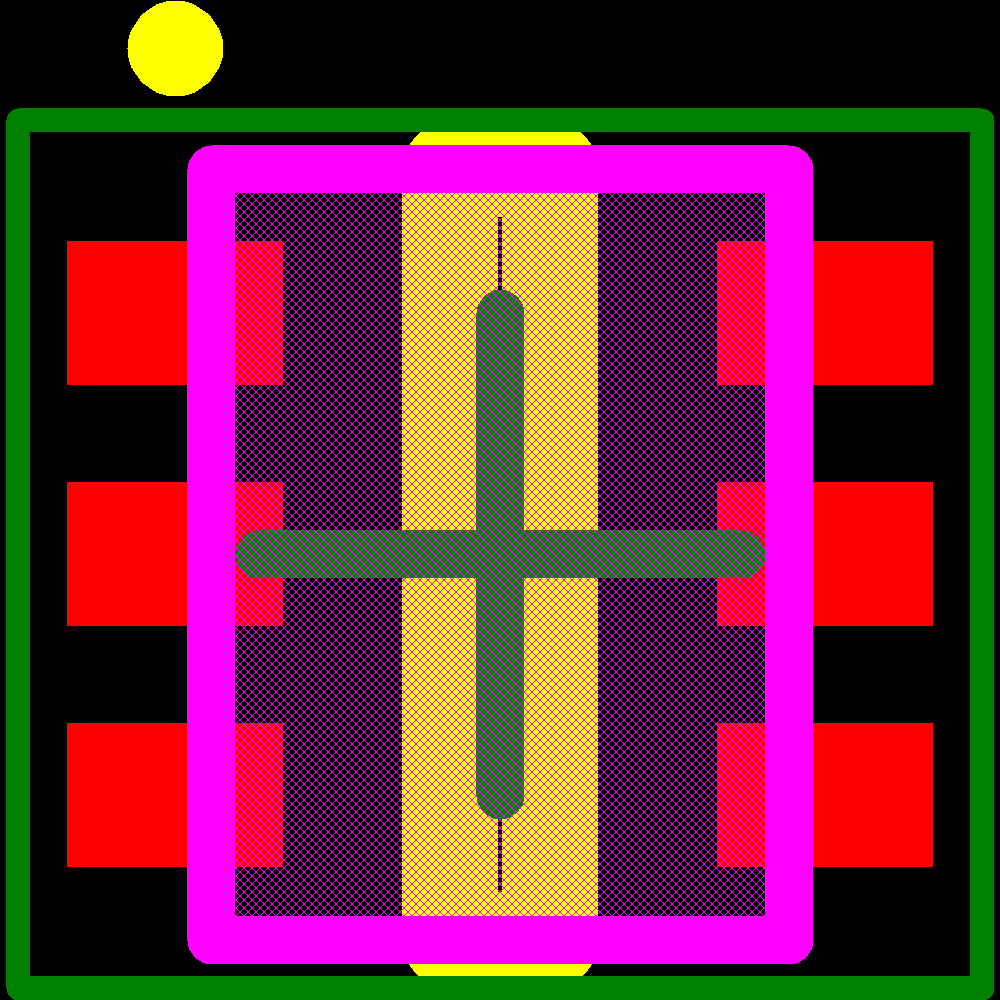

NSBC114EDXV6T1G Footprint - onsemi
