NSV45025AZT1G - onsemi

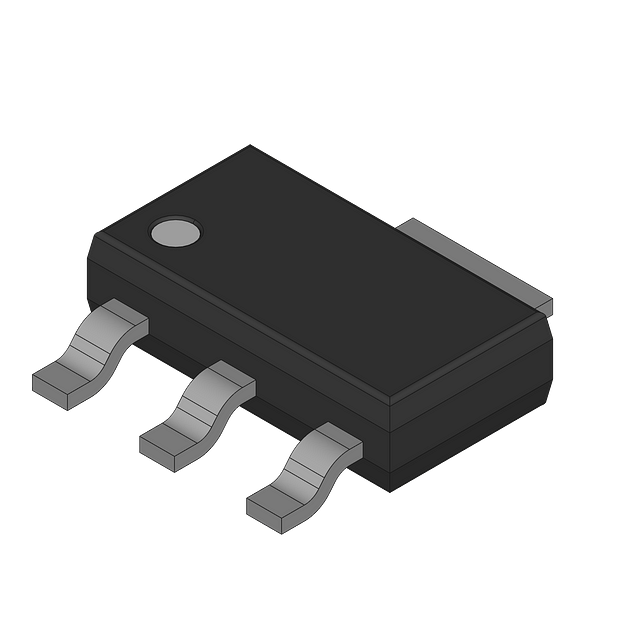

NSI45025 Series 45 V 100 kHz Constant Current Reg./ LED Driver - SOT-223
Technical Details
| Accuracy | 10% |
| Case/Package | SOP |
| China RoHS | Compliant |
| Country of Origin | Malaysia |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 1.75mm |
| Height - Seated (Max) | 1.75mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2013-07-10 |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 45V |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Output Current | 25mA |
| Max Power Dissipation | 954mW |
| Max Supply Voltage | 45V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Characters | 3 |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 4 |
| Number of Terminals | 4 |
| Output Current | 25mA |
| Packaging | Tape & Reel |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Terminal Pitch | 2.3mm |
| Width | 3.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
