NSVBCP69T1G - onsemi
Bipolar (BJT) Single Transistor, PNP, 20 V, 1 A, 1.5 W, SOT-223, Surface Mount
Technical Details
| Case/Package | SOT-223-4 |
| China RoHS | Compliant |
| Collector Base Voltage (VCBO) | 25V |
| Collector Emitter Breakdown Voltage | 20V |
| Collector Emitter Voltage (VCEO) | 500mV |
| hFE Min | 85 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Collector Current | 1A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 1.5W |
| Min Operating Temperature | -65°C |
| Number of Elements | 1 |
| Number of Pins | 4 |
| Packaging | Tape and Reel |
| Polarity | PNP |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8541290080 |
| Transition Frequency | 60MHz |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

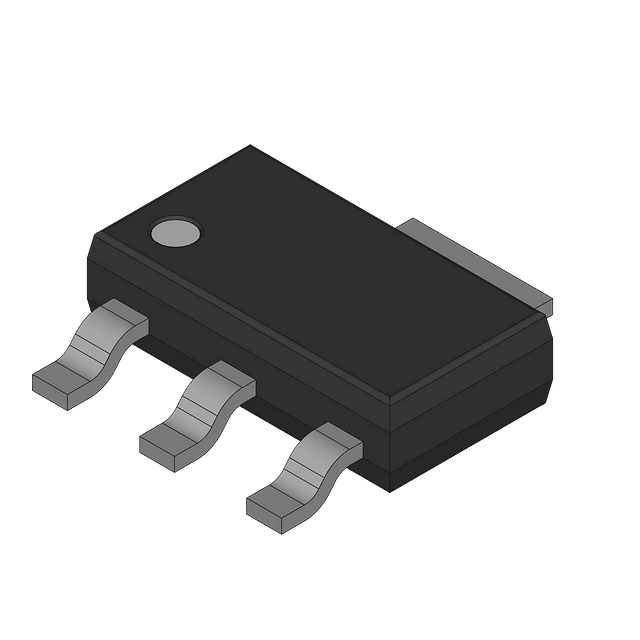

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Production | ||
| NXP Semiconductors | Obsolete | ||
| Diodes Inc. | Production | ||
| Diodes Inc. | Production | ||
| Diodes Inc. | Production | ||
| Diodes Inc. | Production | ||
| Diodes Inc. | Production | ||
| Diodes Inc. | Production | ||
| Diodes Inc. | Production | ||
| Diodes Inc. | Production |
