NTD6415ANLT4G - onsemi

NTD6415ANL: Power MOSFET 100V 23A 56 mohm Single N-Channel DPAK Logic Level

Technical Details

Case/Package	DPAK
China RoHS	Non-Compliant
Continuous Drain Current (ID)	23A
Country of Origin	Mainland China, Malaysia
Drain to Source Breakdown Voltage	100V
Drain to Source Resistance	56mΩ
Drain to Source Voltage (Vdss)	100V
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Fall Time	71ns
Gate to Source Voltage (Vgs)	20V
Height	2.38mm
Input Capacitance	1.024nF
Introduction Date	2010-03-26
Lead Free	Lead Free
Length	6.73mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	175°C
Max Power Dissipation	83W
Min Breakdown Voltage	100V
Min Operating Temperature	-55°C
Number of Elements	1
Number of Pins	4
Number of Terminals	2
Packaging	Tape and Reel
Power Dissipation	83W
Radiation Hardening	No
Rds On Max	52mΩ
REACH SVHC	No
Rise Time	91ns
RoHS	Compliant
Schedule B	8541290080, 8541290080\|8541290080\|8541290080\|8541290080\|8541290080
Turn-Off Delay Time	40ns
Turn-On Delay Time	11ns
Width	6.22mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

onsemi NTD6415ANLT4G | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

Symbol

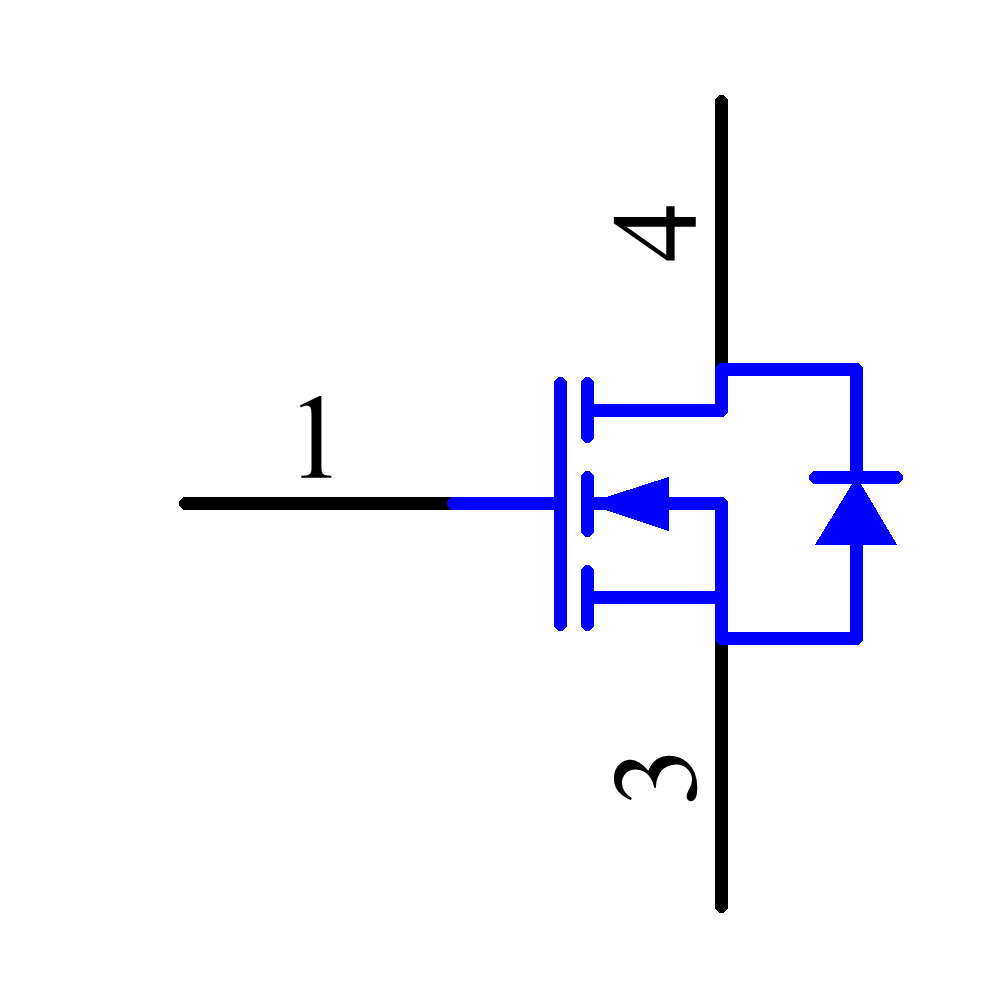

NTD6415ANLT4G Symbol - onsemi

NTD6415ANLT4G Symbol - onsemi

NTD6415ANLT4G Symbol - onsemi

NTD6415ANLT4G Symbol - onsemi

‹ ›

Footprint

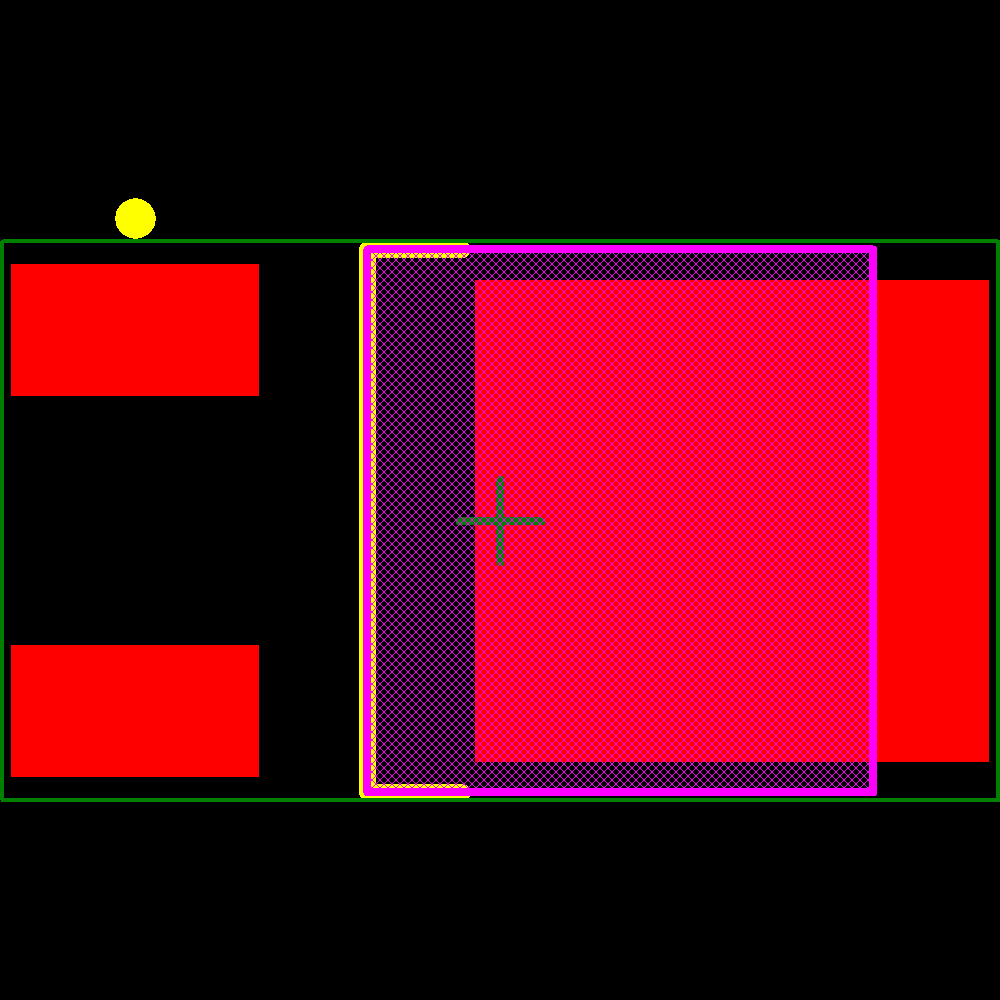

NTD6415ANLT4G Footprint - onsemi

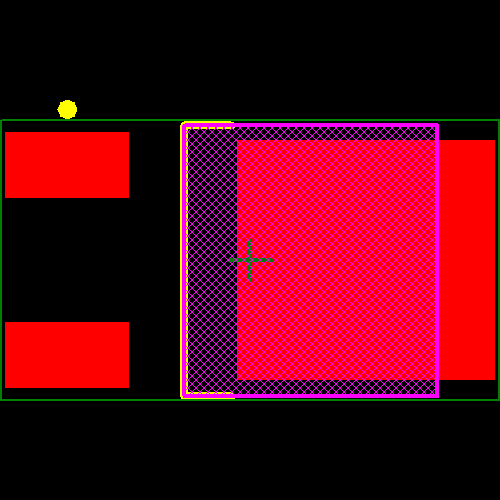

NTD6415ANLT4G Footprint - onsemi
