Discrete Semiconductors > Transistors > MOSFETs

NTJD4158CT1G - onsemi

NTJD4158C: Small Signal MOSFET 30V 880mA 260 mOhm Dual Complementary SC-88/SC70-6/SOT-363

Technical Details

Case/Package	SOT-363-6
China RoHS	Compliant
Continuous Drain Current (ID)	250mA
Country of Origin	Mainland China
Current Rating	250mA
Drain to Source Breakdown Voltage	-20V
Drain to Source Resistance	2.5Ω
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Dual
Fall Time	3.5ns
Gate to Source Voltage (Vgs)	12V
Height	1mm
Input Capacitance	33pF
Introduction Date	2005-12-13
Lead Free	Lead Free
Length	2.2mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	150°C
Max Power Dissipation	270mW
Min Breakdown Voltage	30V
Min Operating Temperature	-55°C
Number of Elements	2
Number of Pins	6
Number of Terminals	6
Packaging	Tape and Reel
Power Dissipation	270mW
Radiation Hardening	No
Rds On Max	1.5Ω
REACH SVHC	Yes
Resistance	1.5Ω
Rise Time	6.5ns
RoHS	Compliant
Schedule B	8541210080, 8541210080\|8541210080\|8541210080\|8541210080\|8541210080
Threshold Voltage	1.2V
Turn-Off Delay Time	13.5ns
Turn-On Delay Time	15ns
Width	1.35mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

onsemi NTJD4158CT1G | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

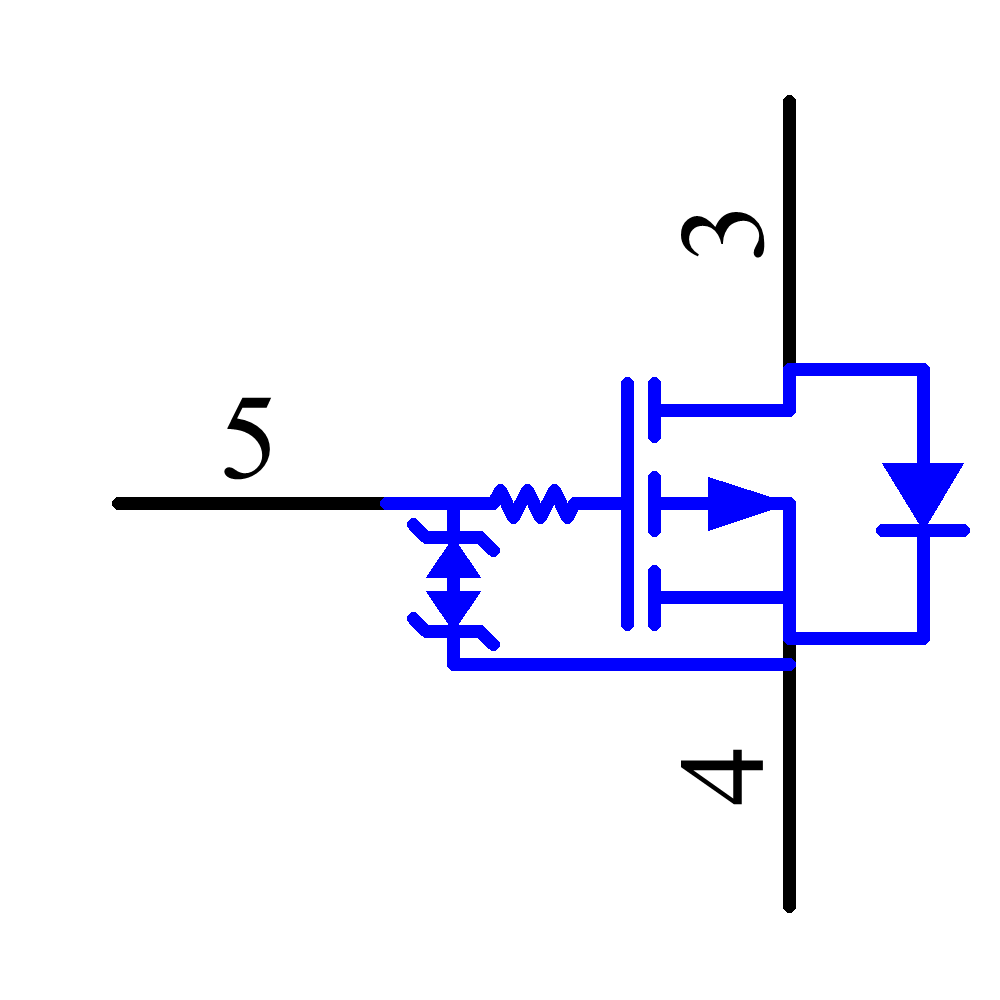

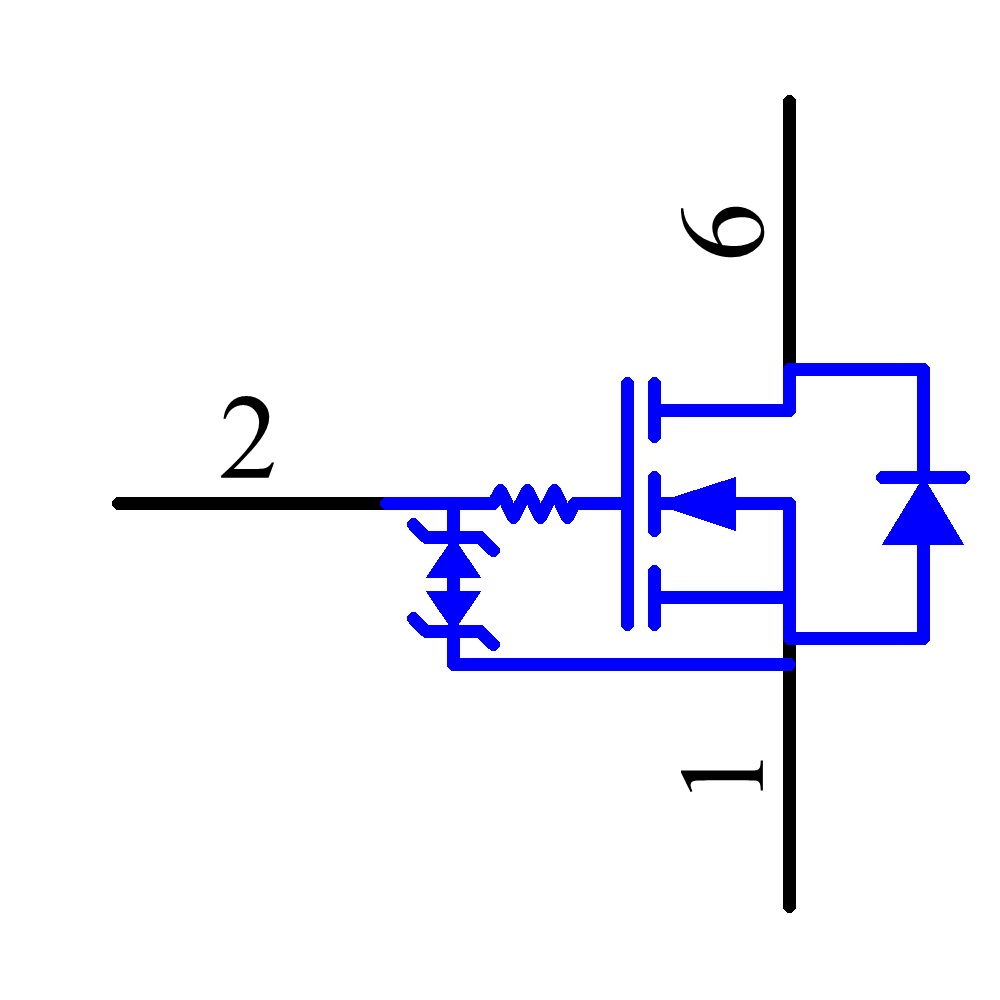

Symbol

NTJD4158CT1G Symbol - onsemi

NTJD4158CT1G Symbol - onsemi

NTJD4158CT1G Symbol - onsemi

NTJD4158CT1G Symbol - onsemi

NTJD4158CT1G Symbol - onsemi

NTJD4158CT1G Symbol - onsemi

NTJD4158CT1G Symbol - onsemi

NTJD4158CT1G Symbol - onsemi

‹ ›

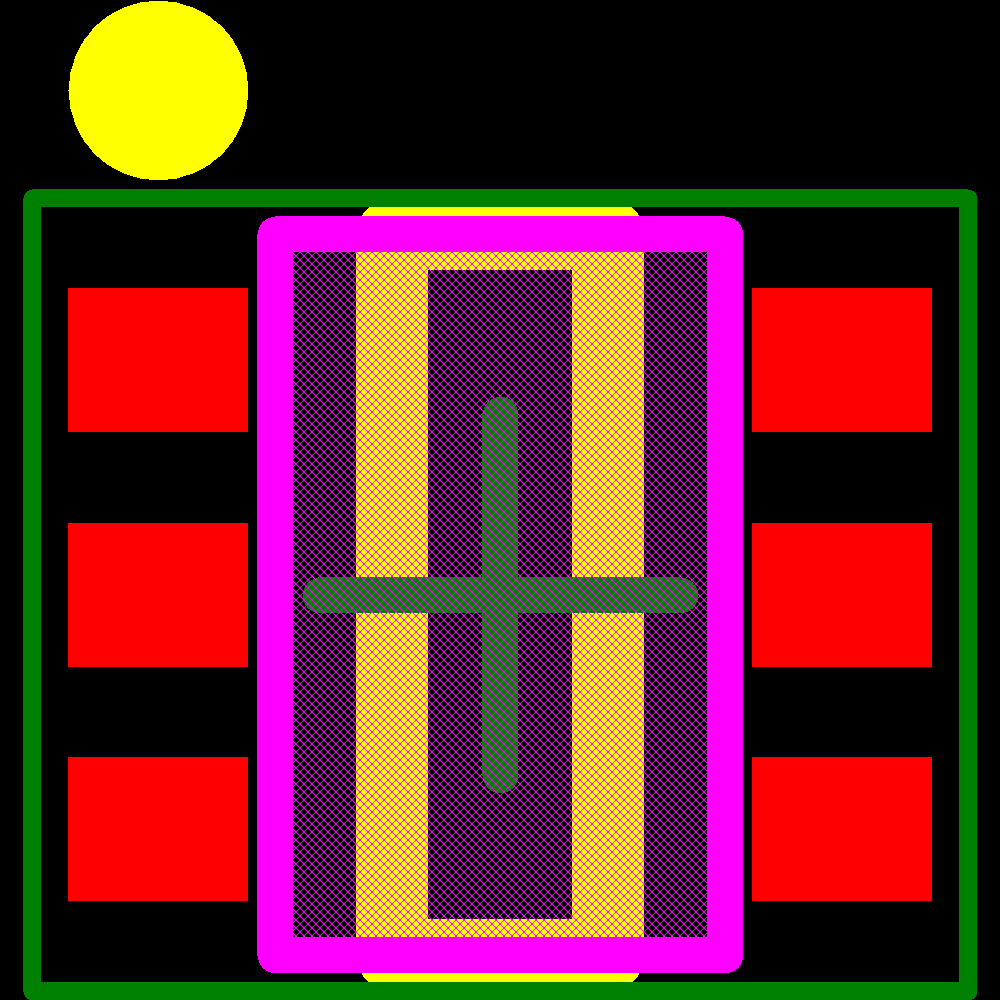

Footprint

NTJD4158CT1G Footprint - onsemi

NTJD4158CT1G Footprint - onsemi

NTJD4158CT1G Footprint - onsemi

NTJD4158CT1G Footprint - onsemi

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
onsemi	NTJD4158CT2G	Obsolete
Panjit	BSS8402DWT/R13	NRND
Renesas	UPA679TB-T2-A	Obsolete
Nexperia	PMGD290UCEAX	Production
Leshan Radio Co.	LBSS8402DW1T1G	Unknown
Infineon	BSD235C L6327	Obsolete
Vishay	SI1539CDL-T1-GE3	Production
Changjiang Electronics	CJ7252KDW	Unknown
onsemi	NTJD4105CT1	Obsolete
onsemi	NTJD3158CT1G	Obsolete

See more alternatives See less alternatives
