Technical Details
| Case/Package | DFN |
| China RoHS | Non-Compliant |
| Contact Plating | Tin |
| Continuous Drain Current (ID) | 15.2A |
| Country of Origin | Malaysia |
| Drain to Source Breakdown Voltage | 25V |
| Drain to Source Resistance | 2.5mΩ |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Fall Time | 45ns |
| Gate to Source Voltage (Vgs) | 16V |
| Input Capacitance | 4.83nF |
| Introduction Date | 2011-06-08 |
| Lead Free | Lead Free |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 86.2W |
| Min Breakdown Voltage | 25V |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Pins | 8 |
| Number of Terminals | 8 |
| Packaging | Tape and Reel |
| Power Dissipation | 2.31W |
| Radiation Hardening | No |
| Rds On Max | 2.5mΩ |
| REACH SVHC | No |
| Rise Time | 54ns |
| RoHS | Compliant |
| Turn-Off Delay Time | 38ns |
| Turn-On Delay Time | 20ns |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

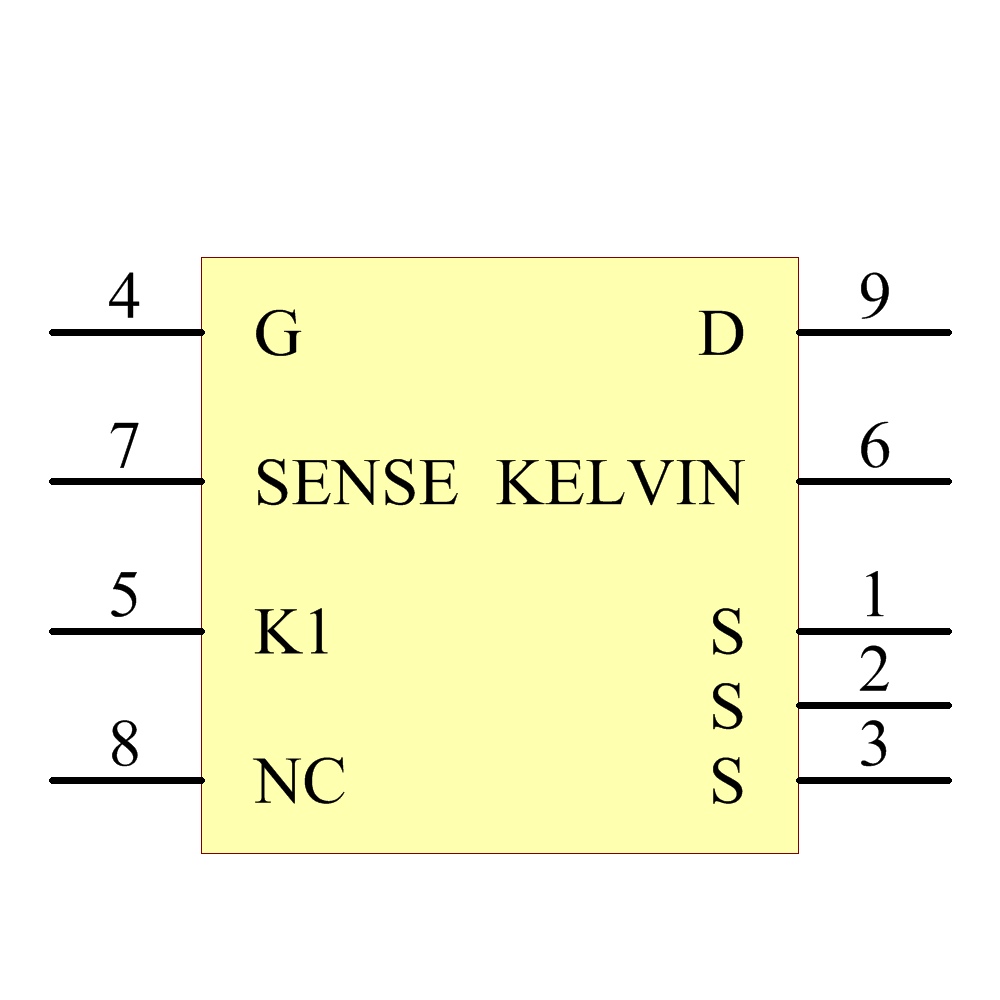

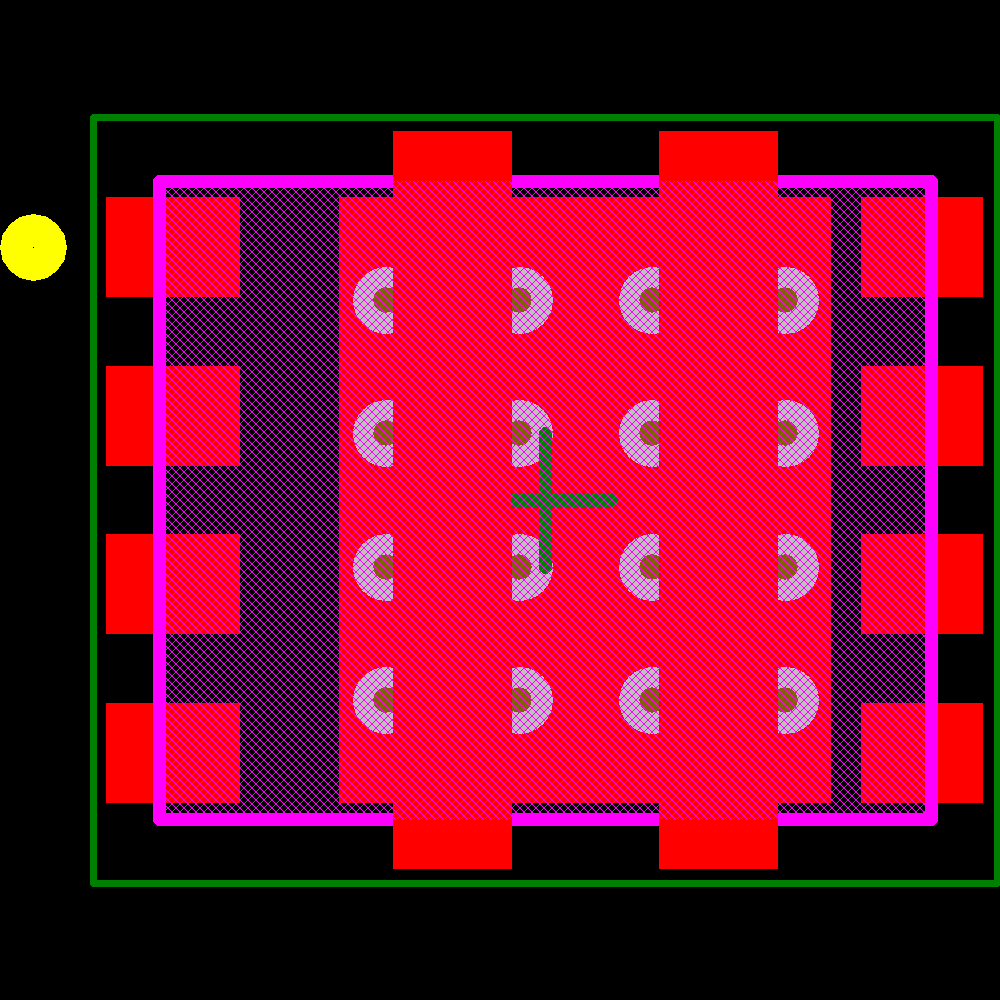

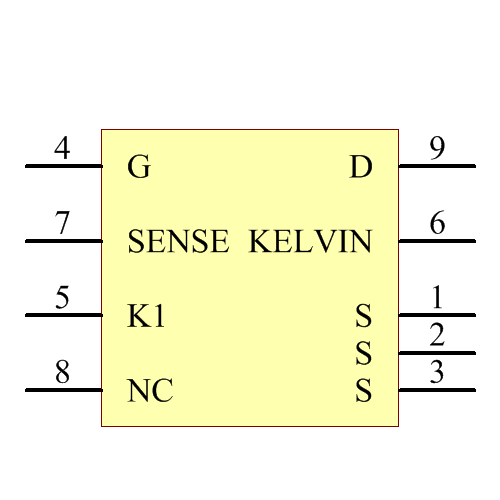

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Alpha & Omega Semiconductor | Production | ||
| onsemi | Obsolete | ||
| Diodes Inc. | Production | ||
| onsemi | Production | ||
| Diodes Inc. | NRND | ||
| Diodes Inc. | Obsolete | ||
| Diodes Inc. | NRND | ||
| Alpha & Omega Semiconductor | Production | ||
| onsemi | Obsolete |
