NUP4016P5T5G - onsemi
ESD Protection Array, Ultra Low Capacitance, for High Speed Data Lines
Technical Details
| Breakdown Voltage | 6V |
| Capacitance | 500fF |
| Case/Package | SOT-953-5 |
| China RoHS | Compliant |
| Composition | Zener |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Depth | 800µm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Halogen Free | Halogen Free |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2008-09-08 |
| Lead Free | Lead Free |
| Leakage Current | 1µA |
| Length | 1mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Operating Temperature | 125°C |
| Min Breakdown Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Number of Lines | 4 |
| Number of Pins | 5 |
| Number of Terminals | 5 |
| Number of Unidirectional Channels | 4 |
| Operating Supply Voltage | 5V |
| Packaging | Tape and Reel |
| Peak Reverse Current | 1µA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 5V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Working Voltage | 5V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

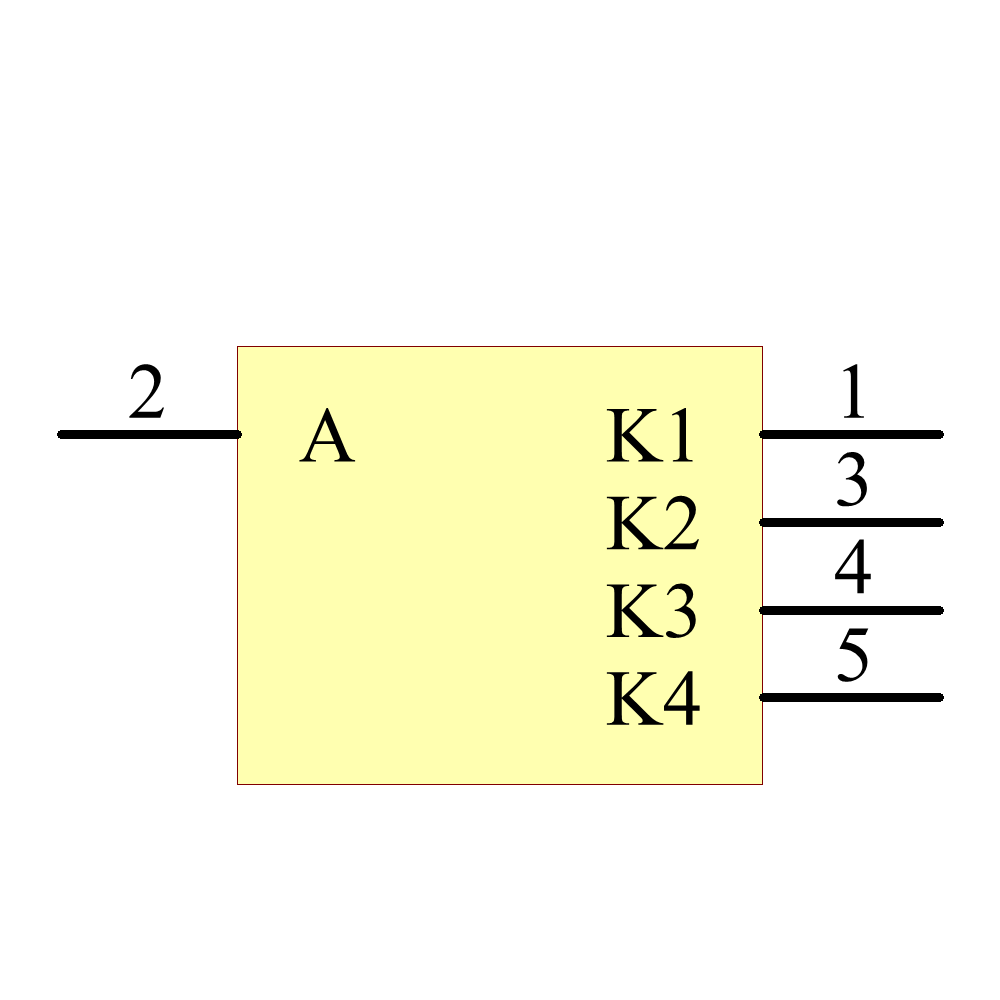

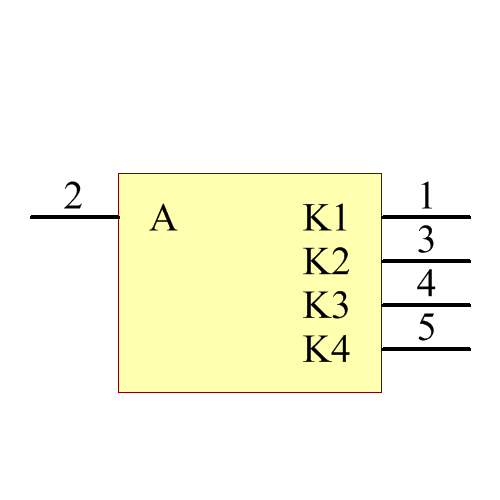

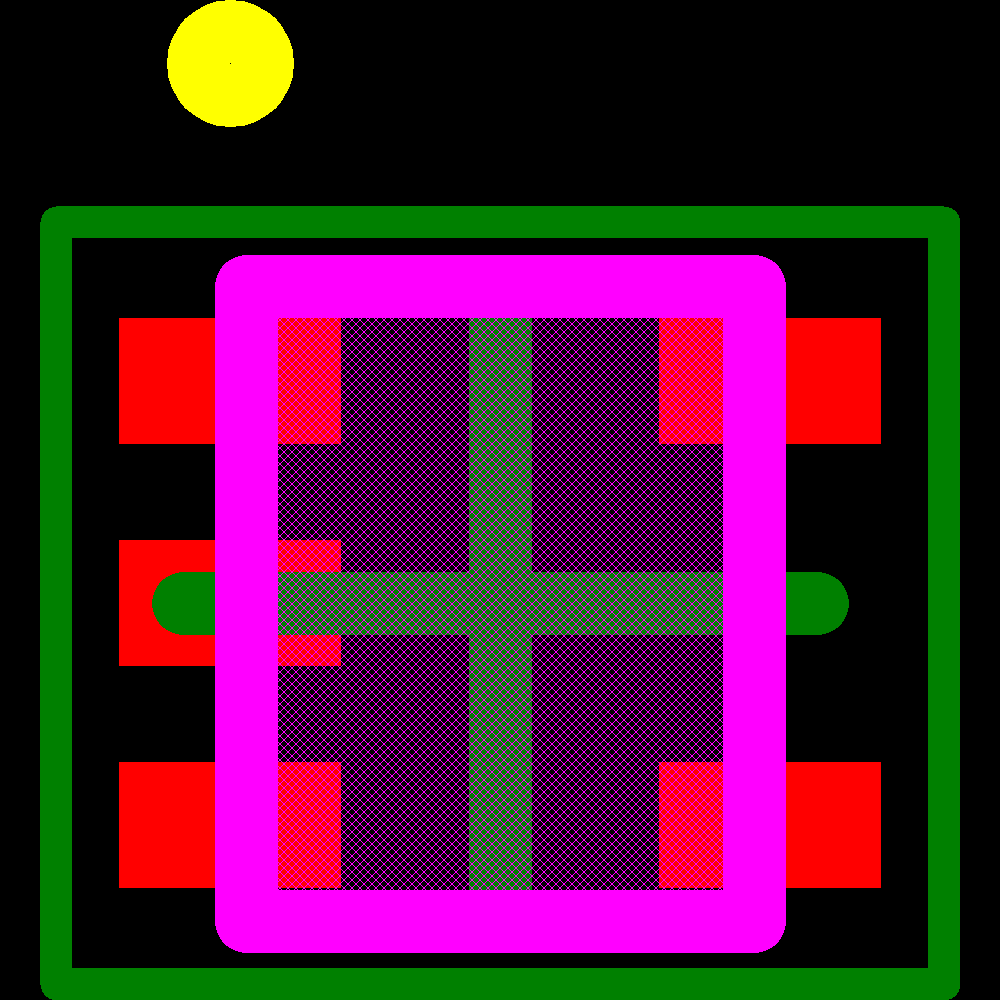

Images
