onsemi - NUP4114UCLW1T2G

NUP4114UCLW1T2G - onsemi

Transil Diode (TVS); 5.5V; 8A; -40+125 deg.C; SMD; SC88(0.95x2.1x2mm); AEC-Q100

 Datasheets

Technical Details

Breakdown Voltage 6.5V
Capacitance 600fF
Case/Package SC
China RoHS Compliant
Clamping Voltage 10V
Country of Origin Mainland China
Depth 1.25mm
Direction Unidirectional
Export Control Classification Number (ECCN) Code EAR99
ESD Protection Yes
Halogen Free Halogen Free
Height 1mm
Harmonized Tariff Schedule (HTS) Code 8541.10.00.50
Introduction Date 2008-08-14
Lead Free Lead Free
Leakage Current 1µA
Length 2mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Operating Temperature 125°C
Max Reverse Leakage Current 1µA
Min Breakdown Voltage 6V
Min Operating Temperature -40°C
Number of Bidirectional Channels 4
Number of Channels 4
Number of Elements 1
Number of Lines 4
Number of Pins 6
Number of Terminals 6
Packaging Tape and Reel
Peak Pulse Current 8A
Peak Reverse Current 1µA
Polarity Unidirectional
Power Line Protection Yes
Radiation Hardening No
REACH SVHC Yes
Reverse Standoff Voltage 5.5V
RoHS Compliant
Schedule B 8536300000, 8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|85
Termination SMD/SMT
Test Current 1mA
Width 1.35mm
Working Voltage 5.5V

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

onsemi NUP4114UCLW1T2G | Newark

Newark

Datasheets

 RS
 RS
 RS

Lifecycle Status Indicator

   Production

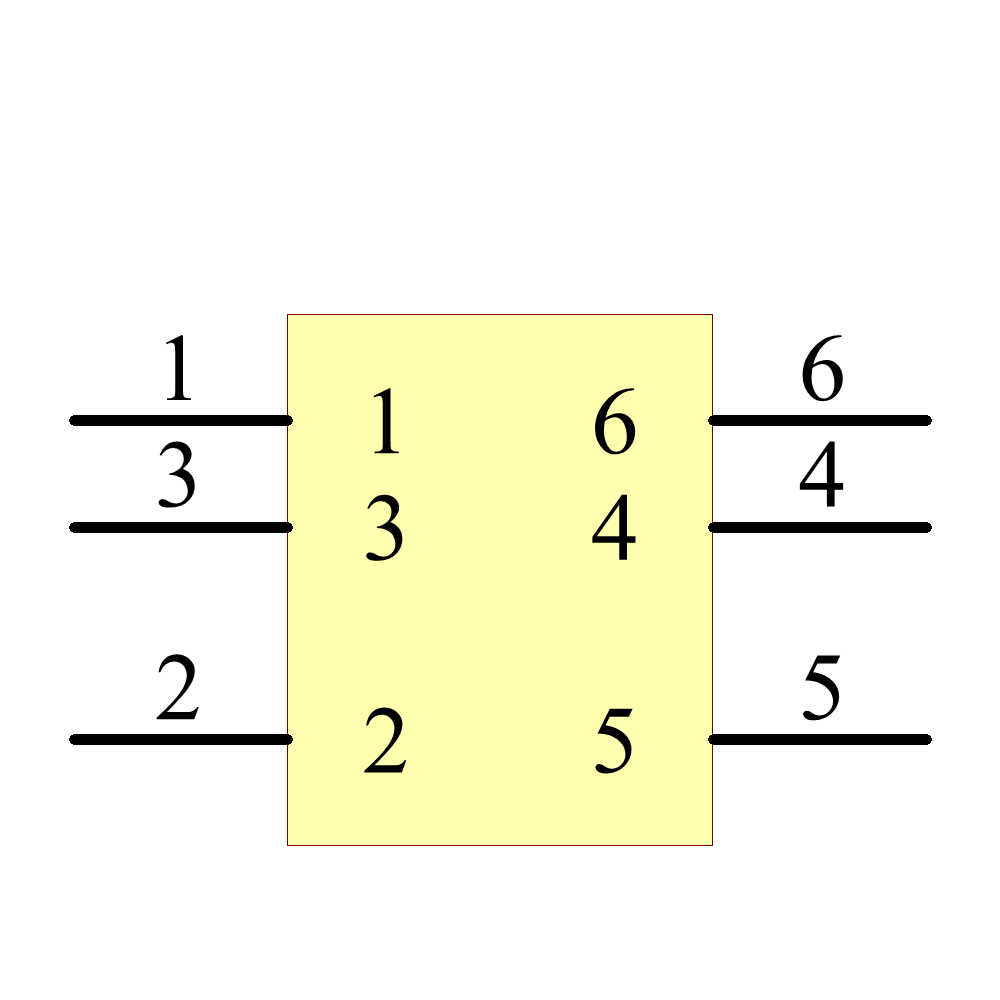

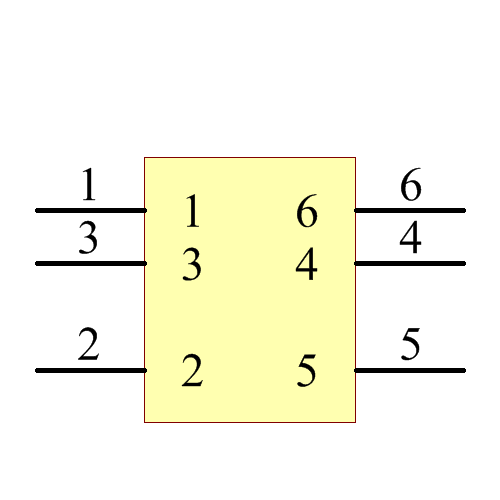

Symbol

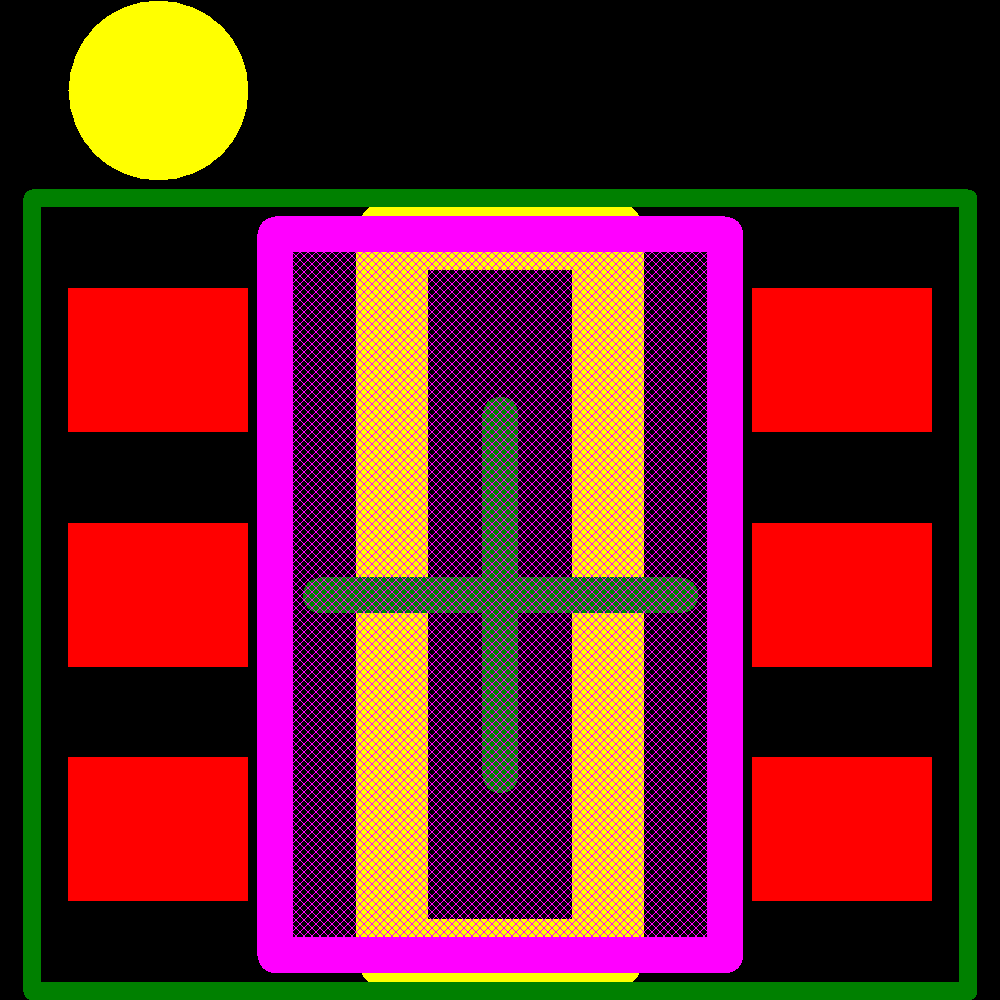

Footprint
