NUP4201DR2 - onsemi
Trans Voltage Suppressor Diode, 500W, 5V V(RWM), Unidirectional, 1 Element, Silicon
Technical Details
| Breakdown Voltage | 6V |
| Capacitance | 10pF |
| Case/Package | SOIC |
| China RoHS | Non-Compliant |
| Clamping Voltage | 12V |
| Country of Origin | Philippines |
| Depth | 4mm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2002-03-01 |
| Lead Free | Contains Lead |
| Leakage Current | 10µA |
| Length | 5mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Operating Temperature | 150°C |
| Max Surge Current | 10A |
| Min Breakdown Voltage | 6V |
| Min Operating Temperature | -55°C |
| Number of Bidirectional Channels | 4 |
| Number of Channels | 4 |
| Number of Elements | 1 |
| Number of Lines | 4 |
| Number of Pins | 8 |
| Number of Terminals | 8 |
| Operating Supply Voltage | 5V |
| Packaging | Tape and Reel |
| Peak Pulse Current | 25A |
| Peak Pulse Power | 500W |
| Peak Reverse Current | 10µA |
| Polarity | Unidirectional |
| Power Line Protection | Yes |
| Power Rating | 500W |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Standoff Voltage | 5V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Voltage Rating (DC) | 6V |
| Width | 4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

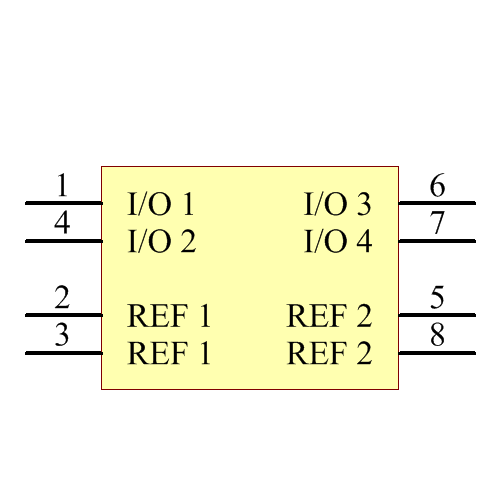

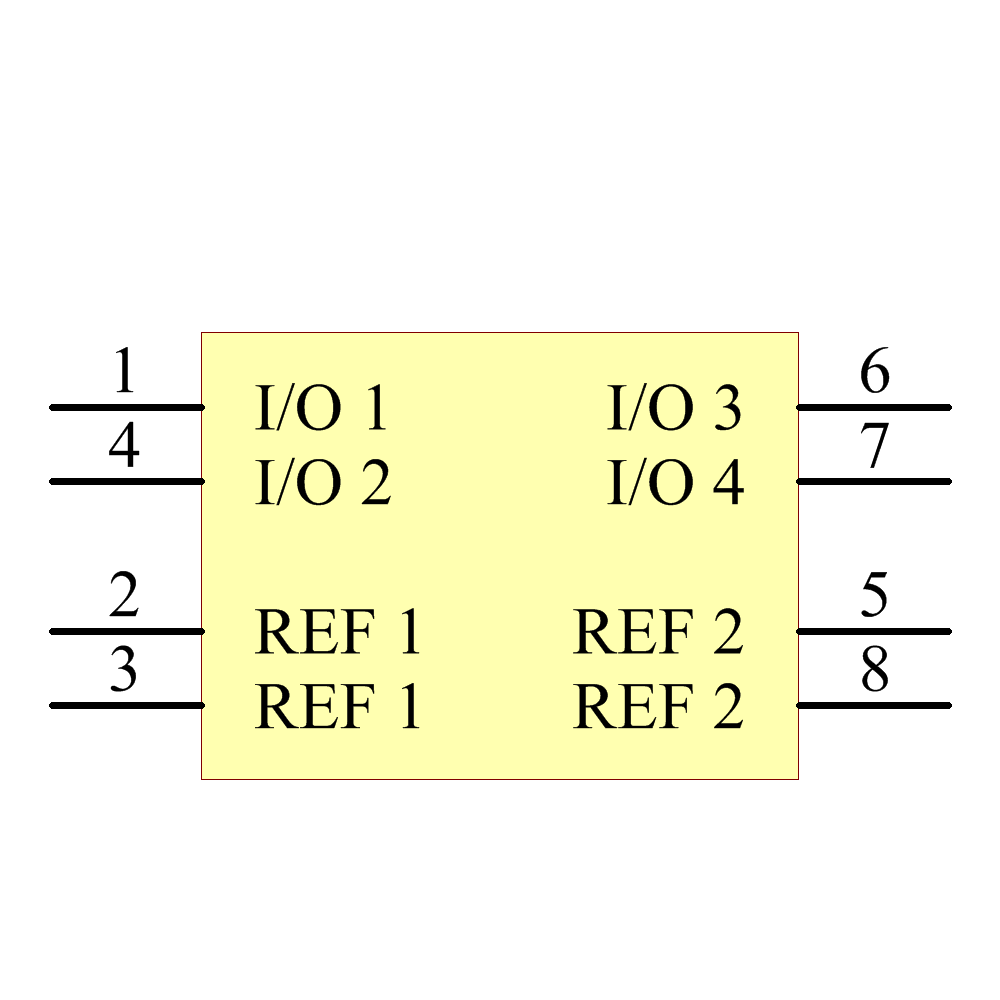

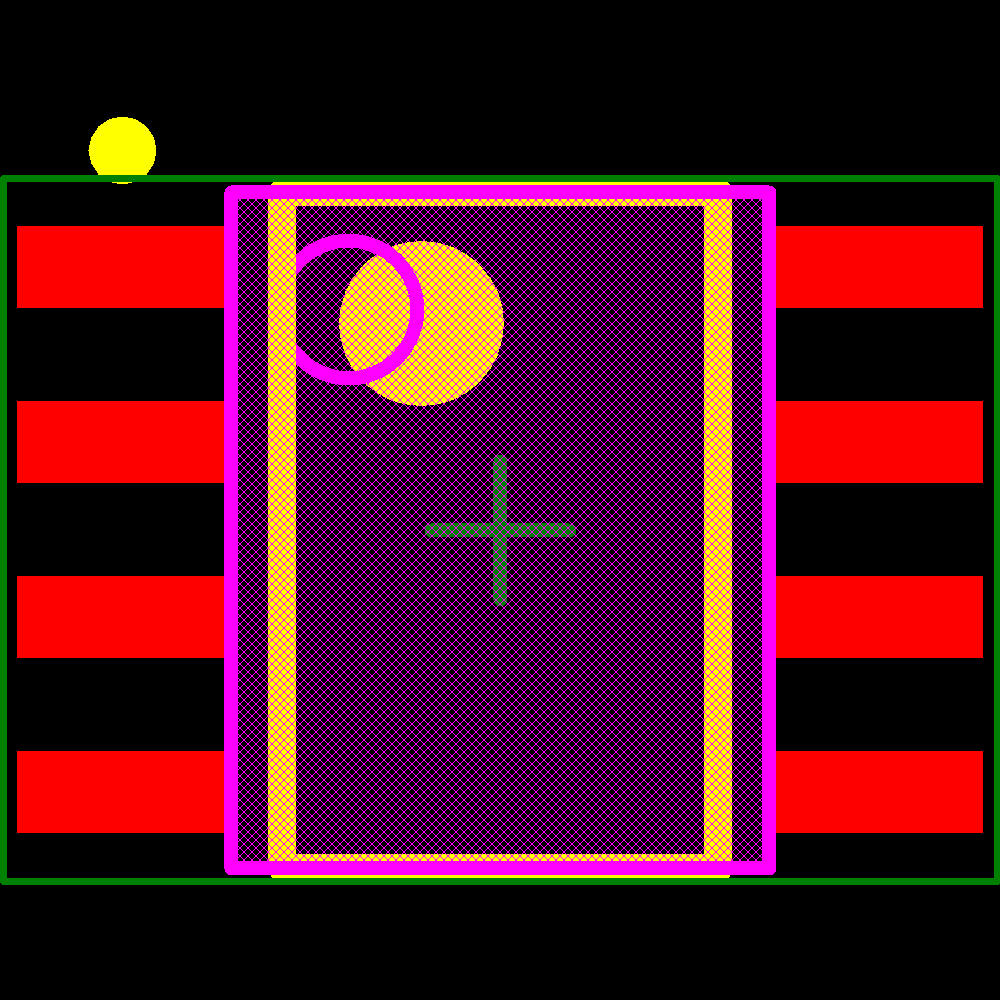

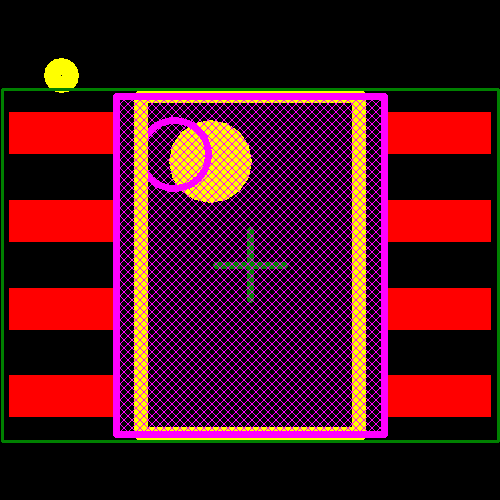

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Production | ||
| STMicroelectronics | Obsolete | ||
| Texas Instruments | Production | ||
| Bourns | Obsolete | ||
| Protek Devices | Production | ||
| Semtech | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Nexperia | Production | ||
| Comchip | Obsolete | ||
| Semtech | Production |
