Technical Details
| Breakdown Voltage | 6V |
| Capacitance | 5pF |
| Case/Package | TSOP |
| Clamping Voltage | 20V |
| Contact Plating | Tin |
| Country of Origin | Thailand |
| Depth | 1.5mm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| ESD Protection | Yes |
| Height | 940µm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2003-01-01 |
| Lead Free | Lead Free |
| Leakage Current | 5µA |
| Length | 3mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Breakdown Voltage | 6V |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 500W |
| Max Reverse Leakage Current | 5µA |
| Max Surge Current | 25A |
| Min Breakdown Voltage | 6V |
| Min Operating Temperature | -40°C |
| Number of Bidirectional Channels | 4 |
| Number of Channels | 4 |
| Number of Elements | 1 |
| Number of Lines | 4 |
| Number of Pins | 6 |
| Number of Terminals | 6 |
| Operating Supply Voltage | 5V |
| Packaging | Tape and Reel |
| Peak Pulse Current | 25A |
| Peak Pulse Power | 500W |
| Peak Reverse Current | 5µA |
| Polarity | Unidirectional |
| Power Dissipation | 500W |
| Power Line Protection | No |
| Power Rating | 500W |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 6V |
| Reverse Standoff Voltage | 5V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Test Current | 1mA |
| Voltage Rating (DC) | 6V |
| Width | 1.5mm |
| Working Voltage | 5V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

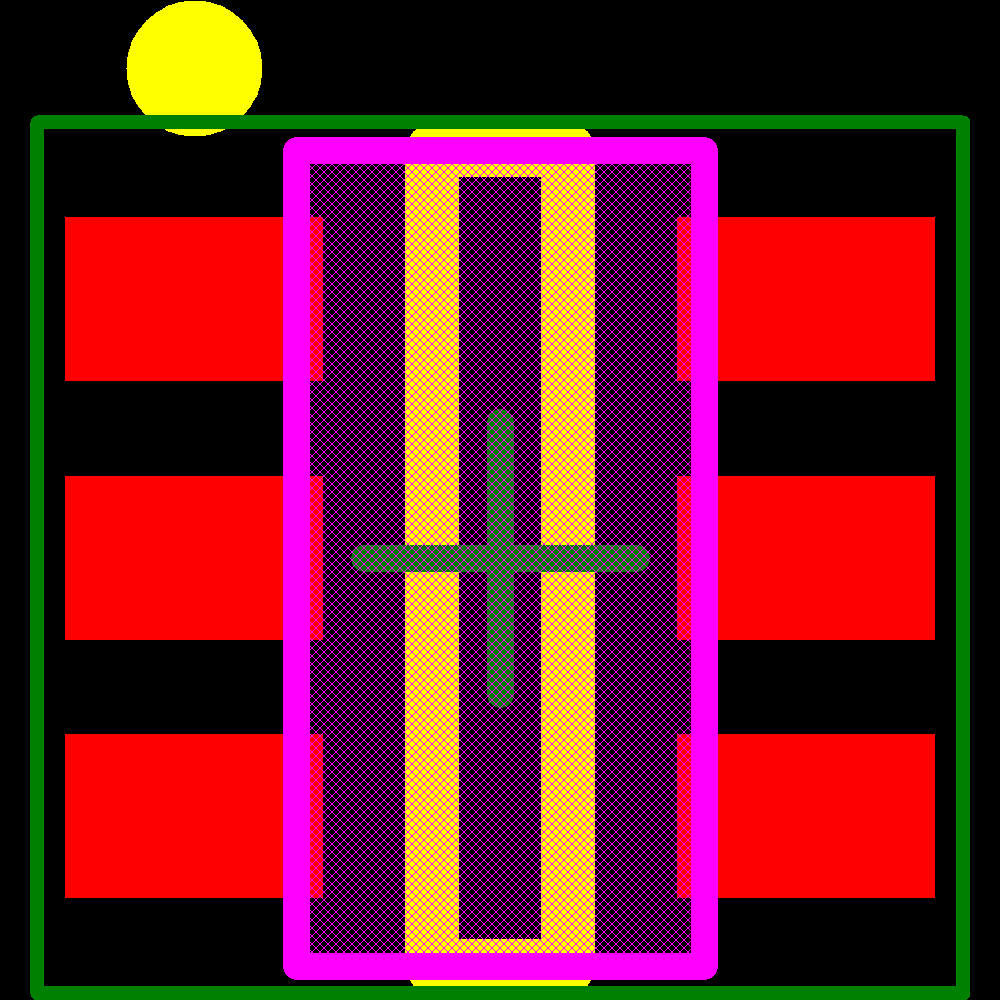

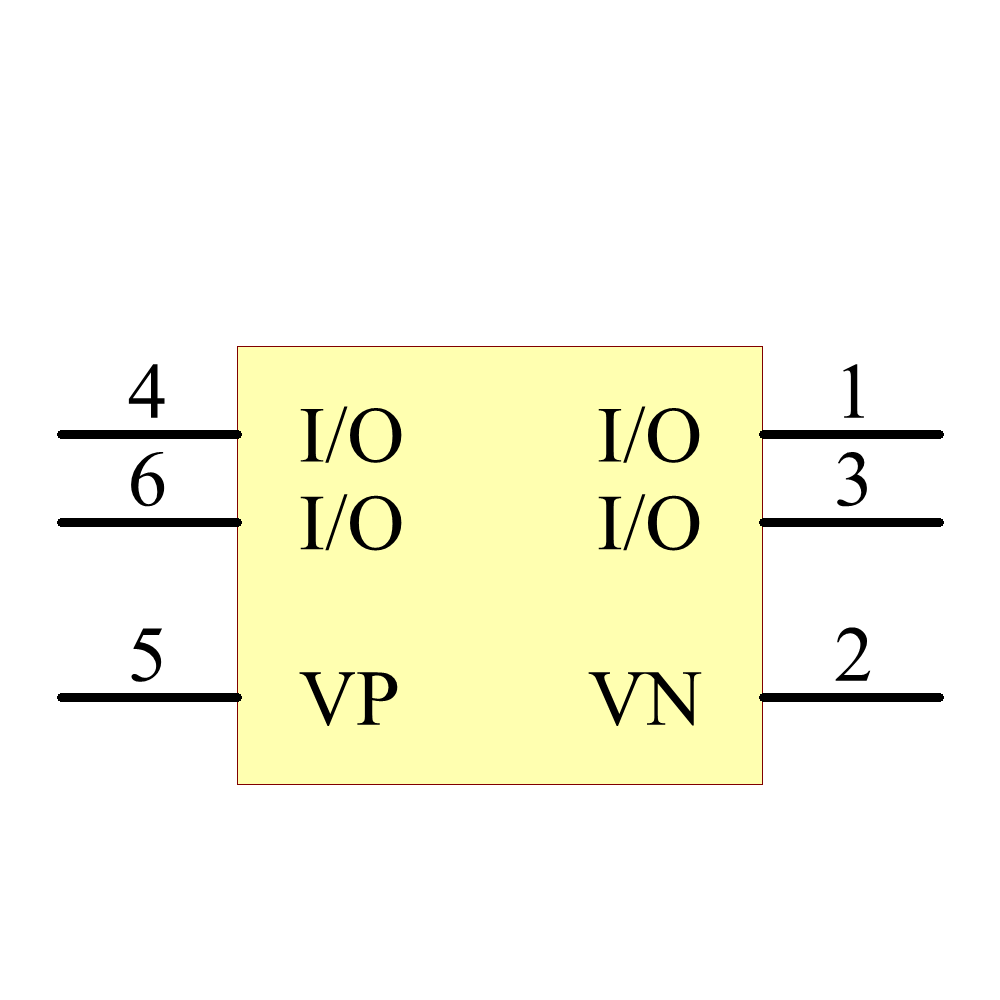

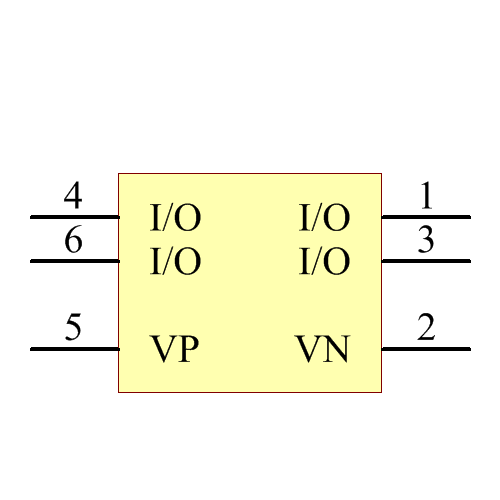

Images
