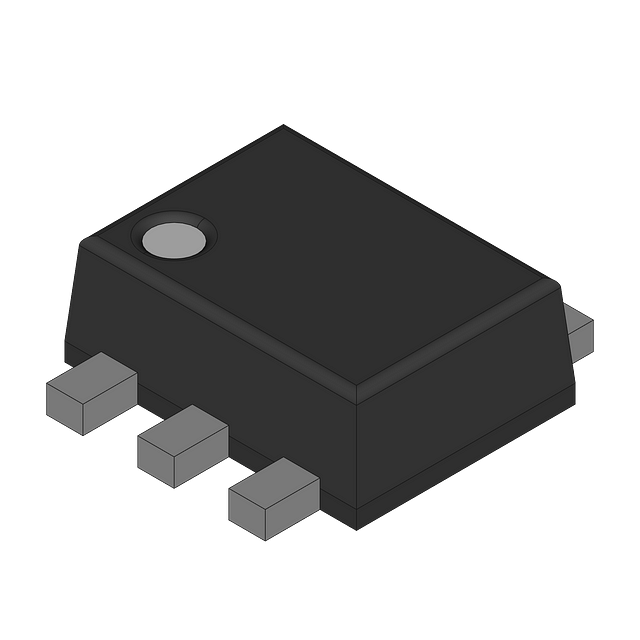

NUP5120X6T1 - onsemi
SOT-563SOT-666 5 Surface Mount Zener Zener Tvs Diode 6.2V 500nA 90W 54pF @ 1MHz
Technical Details
| Breakdown Voltage | 6.8V |
| Case/Package | SOT-563-6 |
| China RoHS | Compliant |
| Composition | Zener |
| Contact Plating | Tin |
| Country of Origin | Malaysia |
| Depth | 1.2mm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2003-12-01 |
| Leakage Current | 500nA |
| Length | 1.6mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Breakdown Voltage | 7.2V |
| Max Operating Temperature | 125°C |
| Min Breakdown Voltage | 6.2V |
| Min Operating Temperature | -40°C |
| Number of Channels | 5 |
| Number of Elements | 5 |
| Number of Lines | 5 |
| Number of Pins | 6 |
| Number of Terminals | 6 |
| Number of Unidirectional Channels | 5 |
| Operating Supply Voltage | 5V |
| Packaging | Tape and Reel |
| Peak Pulse Power | 90W |
| Peak Reverse Current | 500nA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 3V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Working Voltage | 5V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| onsemi | Production | ||
| onsemi | Production | ||
| Wurth Elektronik | Unknown | ||
| Diodes Inc. | Obsolete | ||
| Diodes Inc. | Production | ||
| Littelfuse | Production | ||
| Comchip | Unknown | ||
| Panjit | Unknown | ||
| onsemi | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 3970
|
$ | 0.2245 | 0.1863 | 0.1661 | |||||
| Verical |
US: 3970
|
$ | 0.2076 | |||||||
