NUP5120X6T2 - onsemi
Trans Voltage Suppressor Diode, 90W, 5V V(RWM), Unidirectional, 5 Element, Silicon
Technical Details
| Breakdown Voltage | 6.8V |
| Case/Package | SOT-563 |
| China RoHS | Compliant |
| Composition | Zener |
| Contact Plating | Tin |
| Country of Origin | Malaysia |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2005-09-27 |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Breakdown Voltage | 7.2V |
| Max Operating Temperature | 125°C |
| Min Breakdown Voltage | 6.2V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Channels | 5 |
| Number of Elements | 5 |
| Number of Pins | 6 |
| Number of Terminals | 6 |
| Number of Unidirectional Channels | 5 |
| Operating Supply Voltage | 5V |
| Packaging | Tape and Reel |
| Peak Pulse Power | 90W |
| Peak Reverse Current | 500nA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reverse Standoff Voltage | 3V |
| RoHS | Compliant |
| Termination | SMD/SMT |
Compliance
RoHS : Unconfirmed

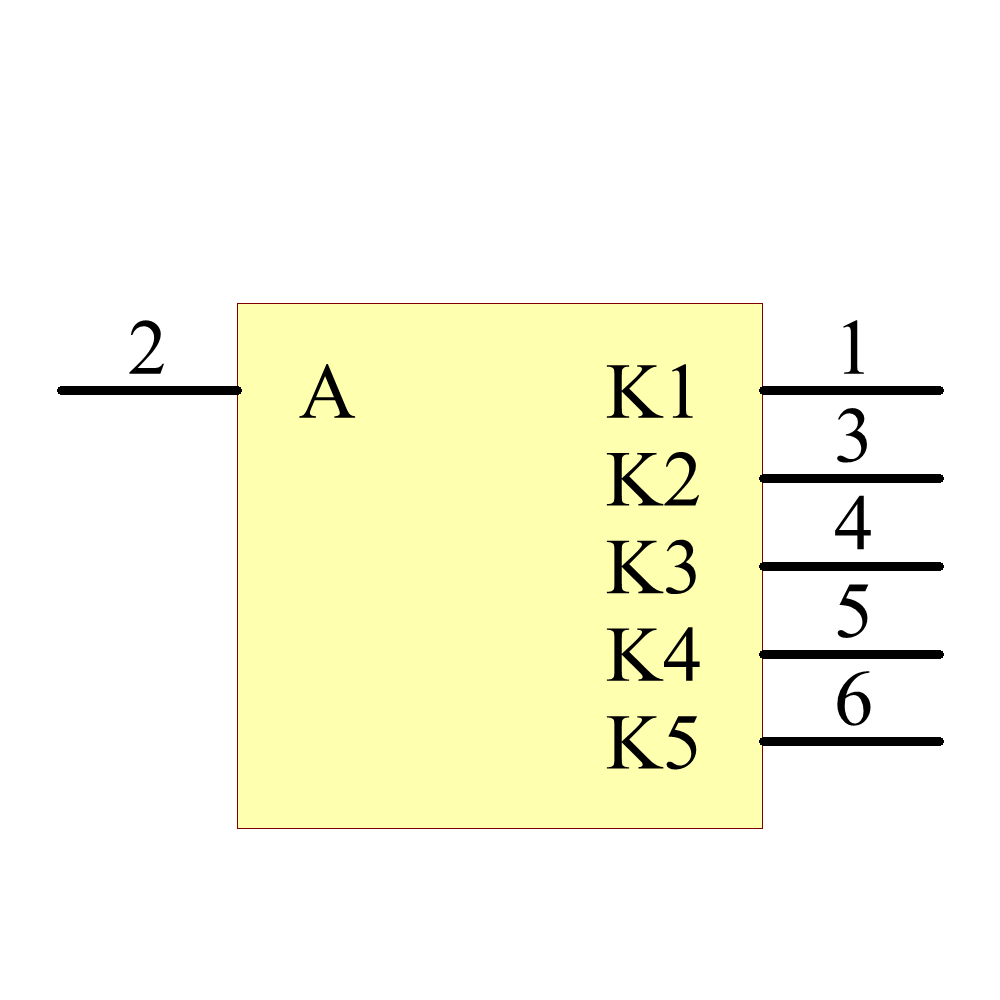

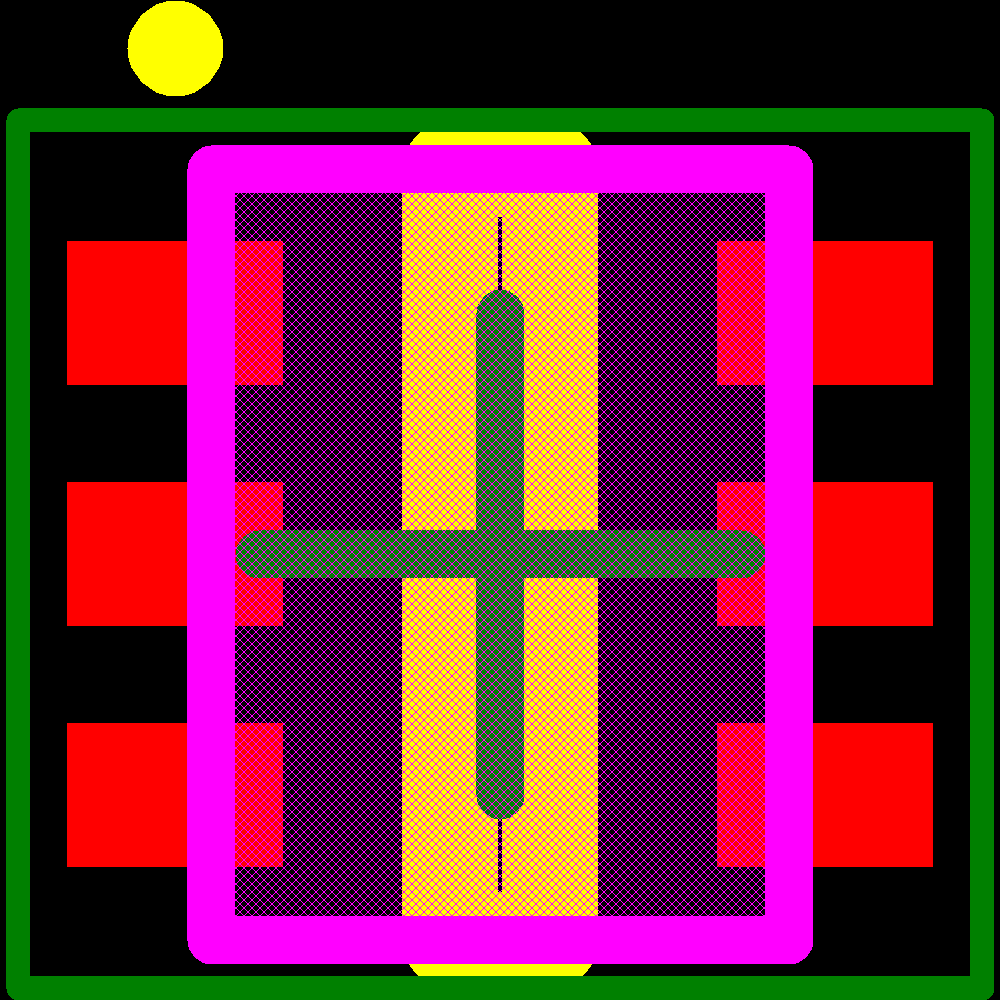

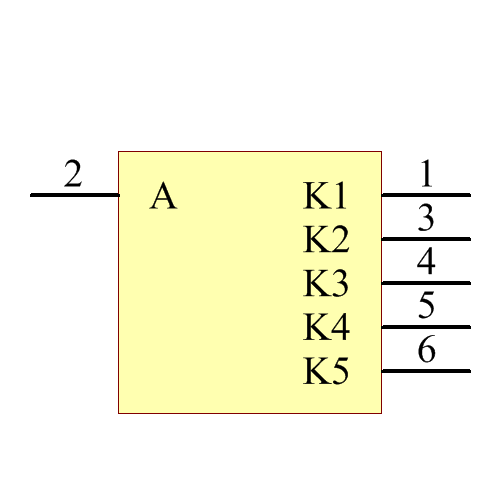

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| onsemi | Production | ||
| onsemi | Production | ||
| Wurth Elektronik | Unknown | ||
| Diodes Inc. | Obsolete | ||
| Diodes Inc. | Production | ||
| Littelfuse | Production | ||
| Comchip | Unknown | ||
| Panjit | Unknown | ||
| onsemi | Production |
