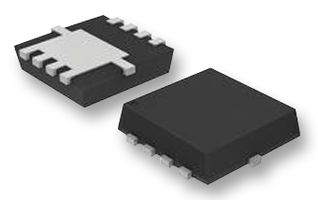

NVTFS003N04CTAG - onsemi
Mosfet, Aec-Q101, N-Ch, 40V, 103A, 69W Rohs Compliant: Yes |Onsemi NVTFS003N04CTAG
Technical Details
| China RoHS | Non-Compliant |
| Continuous Drain Current (ID) | 103A |
| Drain to Source Breakdown Voltage | 40V |
| Drain to Source Resistance | 3.5mΩ |
| Drain to Source Voltage (Vdss) | 40V |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 800µm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Junction Temperature (Tj) | 175°C |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 69W |
| Min Breakdown Voltage | 40V |
| Min Operating Temperature | -55°C |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Terminals | 8 |
| Power Dissipation | 3.2W |
| REACH SVHC | No |
| RoHS | Compliant |
| Turn-Off Delay Time | 19ns |
| Turn-On Delay Time | 10ns |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
