NZQA5V6XV5T1 - onsemi
ESD Suppressor Diode TVS Uni-Dir 3V 5.6Vbr 10.5Vc 5-Pin SOT-553 T/R
Technical Details
| Breakdown Voltage | 5.6V |
| Capacitance | 90pF |
| Case/Package | SOT-553-5 |
| China RoHS | Compliant |
| Clamping Voltage | 10.5V |
| Composition | Zener |
| Contact Plating | Tin |
| Country of Origin | Malaysia |
| Depth | 1.2mm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Forward Voltage | 1.3V |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2003-02-01 |
| Leakage Current | 1µA |
| Length | 1.6mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Breakdown Voltage | 5.88V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 300mW |
| Max Surge Current | 10A |
| Min Breakdown Voltage | 5.32V |
| Min Operating Temperature | -55°C |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Number of Lines | 4 |
| Number of Pins | 5 |
| Number of Terminals | 5 |
| Number of Unidirectional Channels | 4 |
| Operating Supply Voltage | 3V |
| Packaging | Tape and Reel |
| Peak Pulse Current | 10A |
| Peak Pulse Power | 100W |
| Peak Reverse Current | 1µA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Power Rating | 100W |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 3V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Voltage Rating (DC) | 5.6V |
| Width | 1.3mm |
| Working Voltage | 3V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

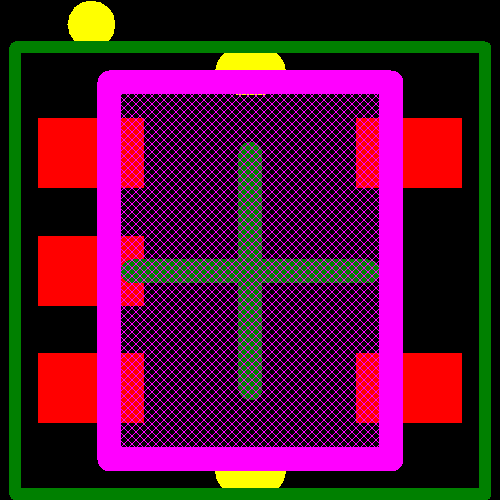

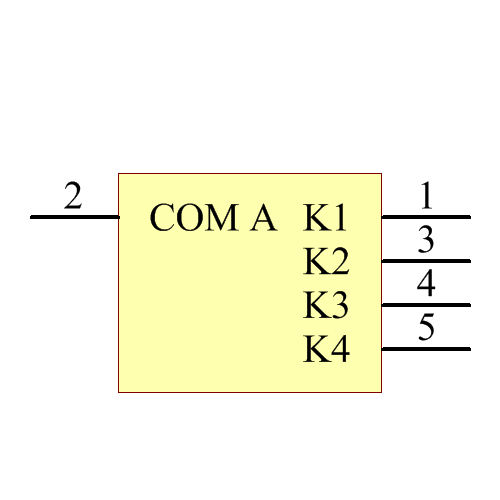

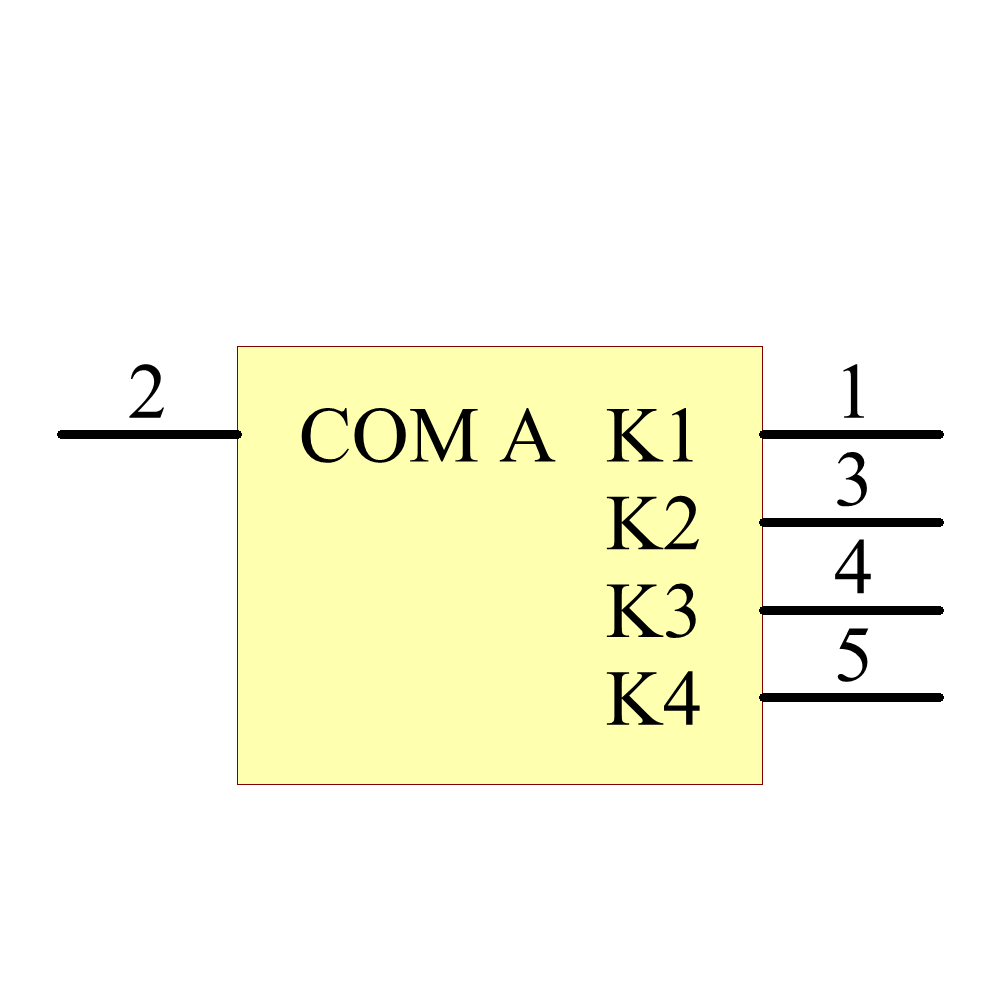

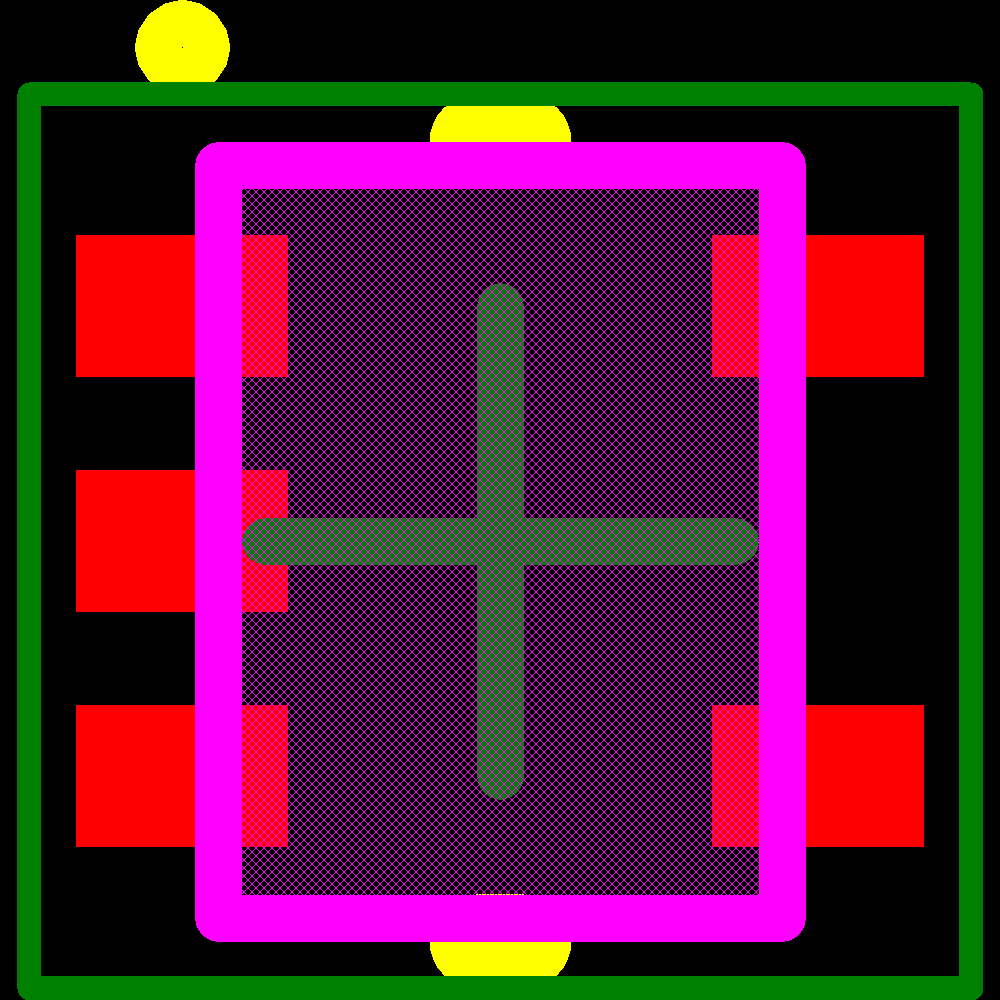

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| Littelfuse | Production | ||
| onsemi | Production | ||
| onsemi | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 220412
|
$ | 0.0924 | 0.0767 | 0.0684 | |||||
| Verical |
US: 188307
|
$ | 0.0855 | |||||||
| Verical |
US: 24105
|
$ | 0.0855 | |||||||
| Verical |
US: 8000
|
$ | 0.0855 | |||||||
