NZQA5V6XV5T3 - onsemi
Trans Voltage Suppressor Diode, 100W, 3V V(RWM), Unidirectional, 4 Element, Silicon
Technical Details
| Breakdown Voltage | 5.6V |
| Case/Package | SOT-553-5 |
| China RoHS | Compliant |
| Clamping Voltage | 10.5V |
| Composition | Zener |
| Contact Plating | Tin |
| Country of Origin | Malaysia |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Forward Voltage | 1.3V |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2003-02-20 |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Breakdown Voltage | 5.88V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 300mW |
| Max Surge Current | 10A |
| Min Breakdown Voltage | 5.32V |
| Min Operating Temperature | -55°C |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Number of Lines | 4 |
| Number of Pins | 5 |
| Number of Terminals | 5 |
| Number of Unidirectional Channels | 4 |
| Operating Supply Voltage | 3V |
| Packaging | Tape and Reel |
| Peak Pulse Current | 10A |
| Peak Pulse Power | 100W |
| Peak Reverse Current | 1µA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reverse Standoff Voltage | 3V |
| RoHS | Compliant |
| Termination | SMD/SMT |
Compliance
RoHS : Unconfirmed

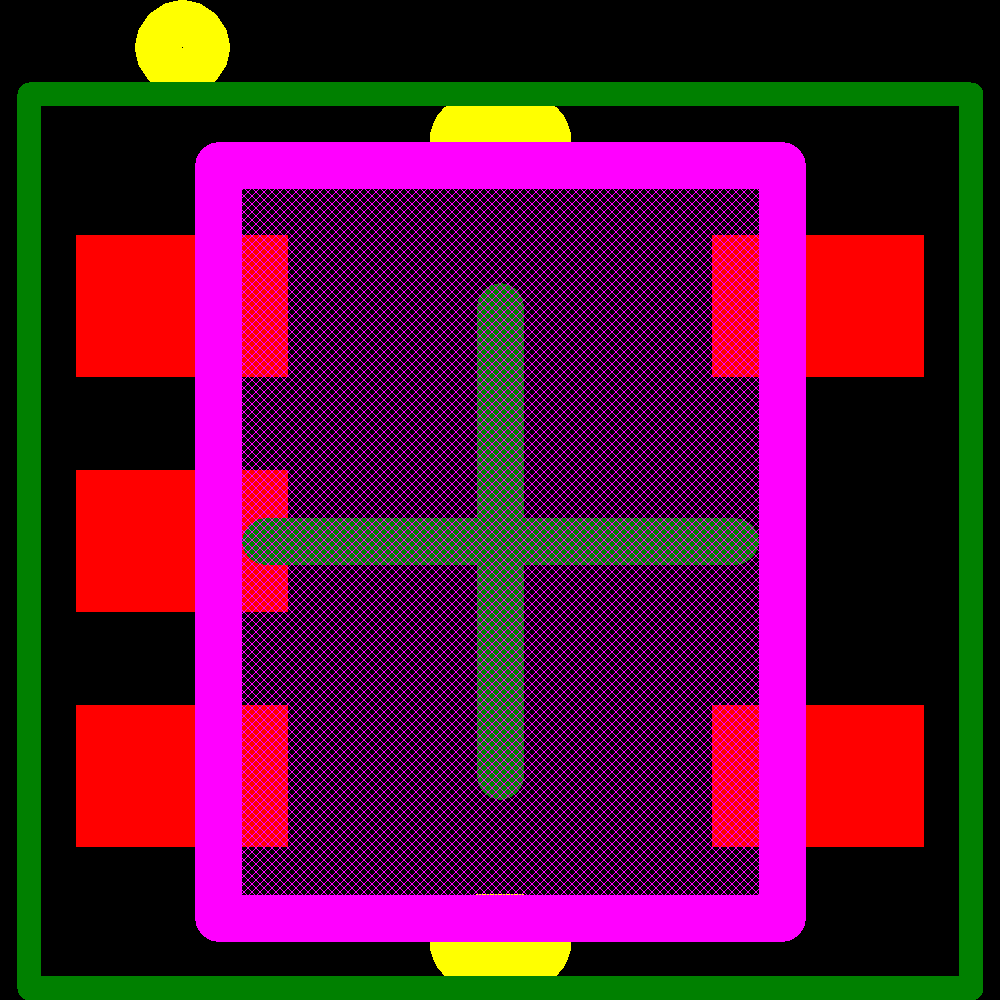

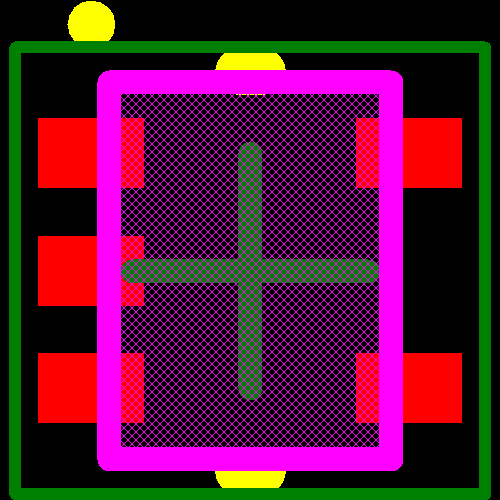

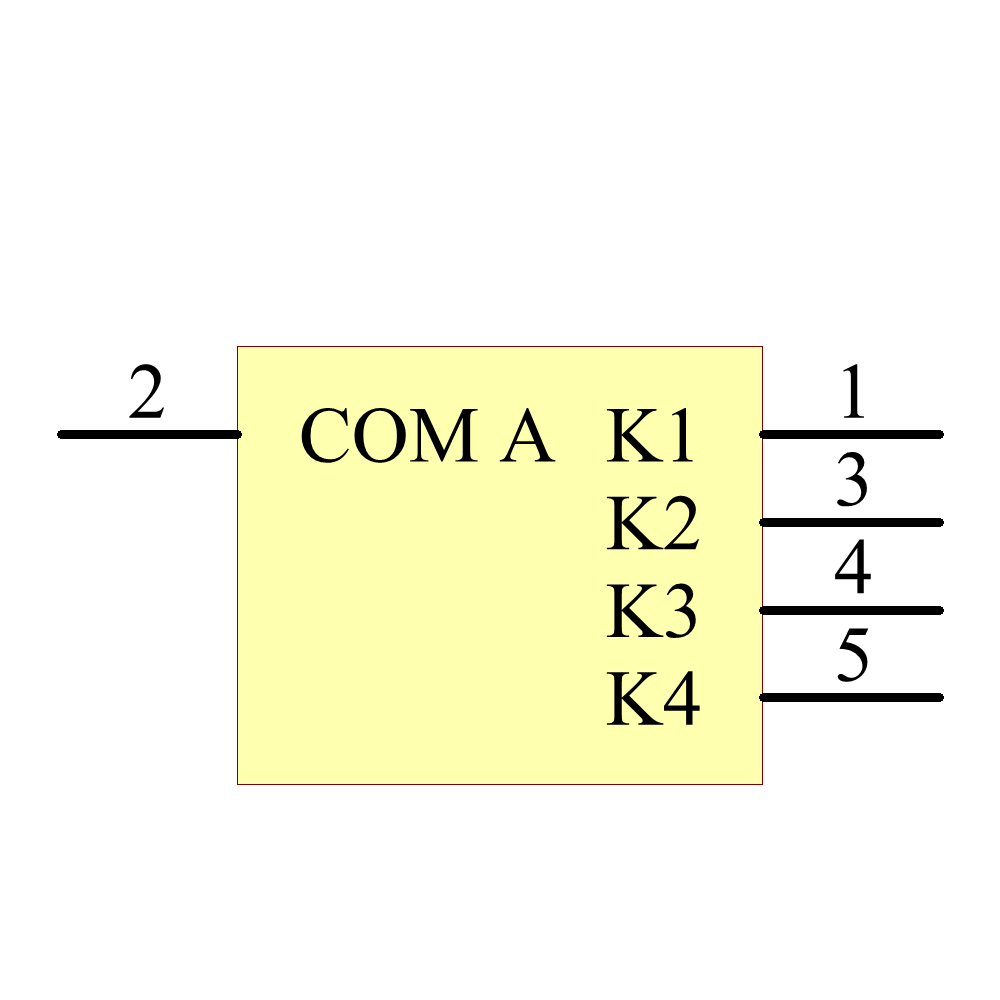

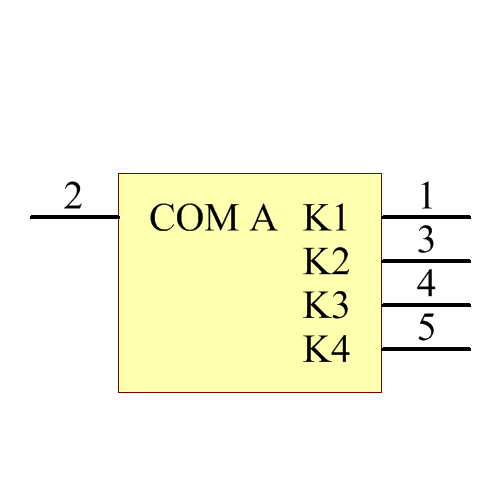

Images
