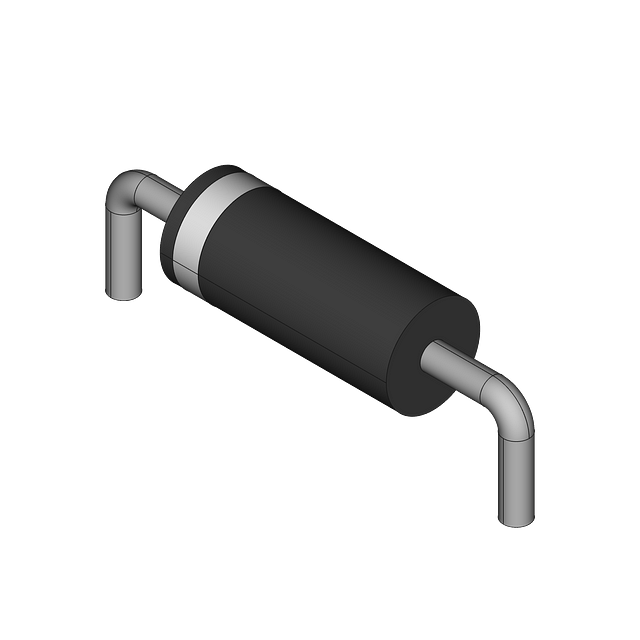

SA28ARL - onsemi
Trans Voltage Suppressor Diode, 500W, 28V V(RWM), Unidirectional, 1 Element, Silicon
Technical Details
| Breakdown Voltage | 32.75V |
| Case/Package | Axial |
| China RoHS | Non-Compliant |
| Clamping Voltage | 45.4V |
| Composition | Zener |
| Contact Plating | Tin |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Forward Voltage | 3.5V |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 1994-05-01 |
| Lead Free | Contains Lead |
| Leakage Current | 1µA |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 34.4V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 3W |
| Max Surge Current | 11A |
| Min Breakdown Voltage | 31.1V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 28V |
| Peak Pulse Current | 11A |
| Peak Pulse Power | 500W |
| Peak Reverse Current | 1µA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 31.1V |
| Reverse Standoff Voltage | 28V |
| RoHS | Compliant |
| Termination | Axial |
| Test Current | 1mA |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
