SA60ARLG - onsemi

Diode TVS Single Uni-Dir 6V 500W 2-Pin Case 59AA-01 T/R

Breakdown Voltage	70.2V
Case/Package	Axial
China RoHS	Non-Compliant
Clamping Voltage	96.8V
Composition	Zener
Contact Plating	Tin
Diameter	3.6mm
Direction	Unidirectional
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
ESD Protection	Yes
Forward Voltage	3.5V
Height	7.6mm
Harmonized Tariff Schedule (HTS) Code	8541.10.00.50
Introduction Date	2000-02-01
Lead Free	Lead Free
Leakage Current	600µA
Lifecycle Status	Obsolete
Max Breakdown Voltage	73.7V
Max Operating Temperature	175°C
Max Power Dissipation	3W
Max Reverse Leakage Current	600µA
Max Surge Current	48.5A
Min Breakdown Voltage	66.7V
Min Operating Temperature	-55°C
Number of Channels	1
Number of Elements	1
Number of Pins	2
Number of Terminals	2
Number of Unidirectional Channels	1
Operating Supply Voltage	6V
Peak Pulse Current	48.5A
Peak Pulse Power	500W
Peak Reverse Current	1µA
Polarity	Unidirectional
Power Line Protection	No
REACH SVHC	No
Reverse Breakdown Voltage	6.67V
Reverse Standoff Voltage	60V
RoHS	Compliant
Termination	Axial
Test Current	10mA

RoHS : Unconfirmed

REACH SVHC : No

Obsolete

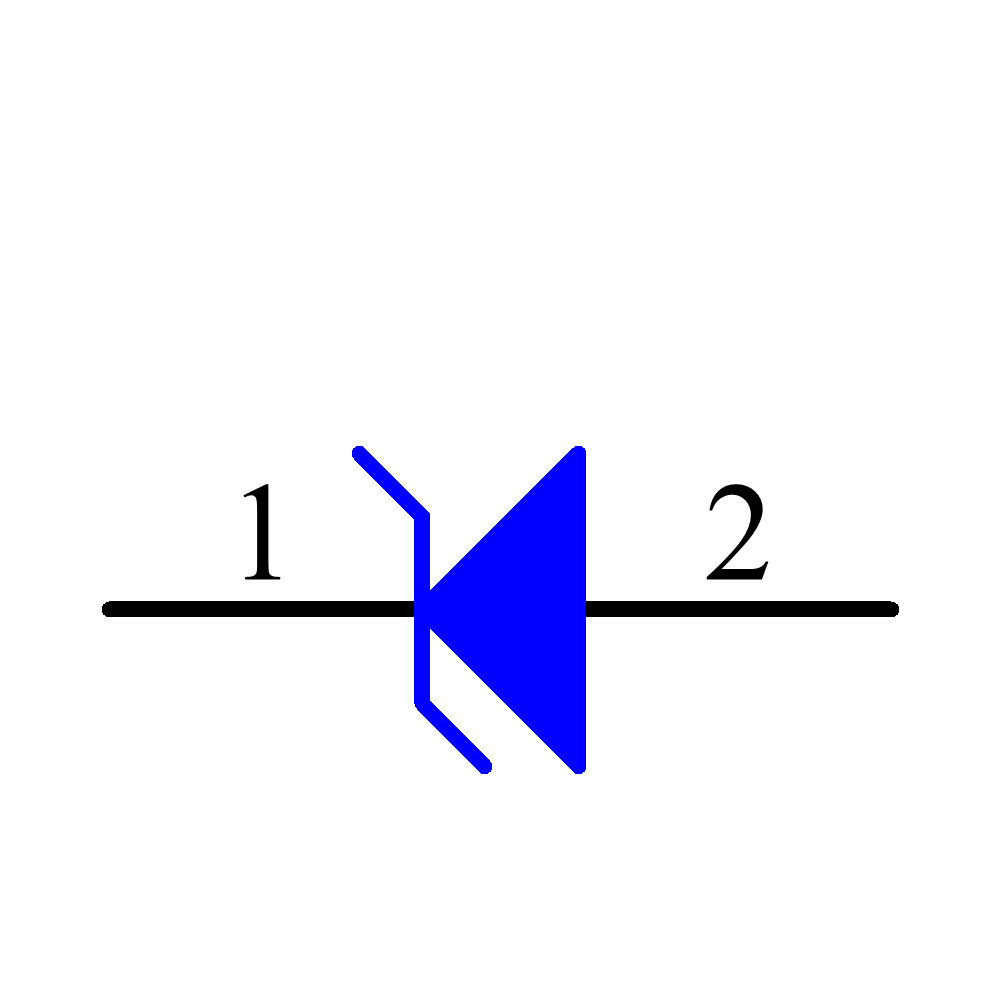

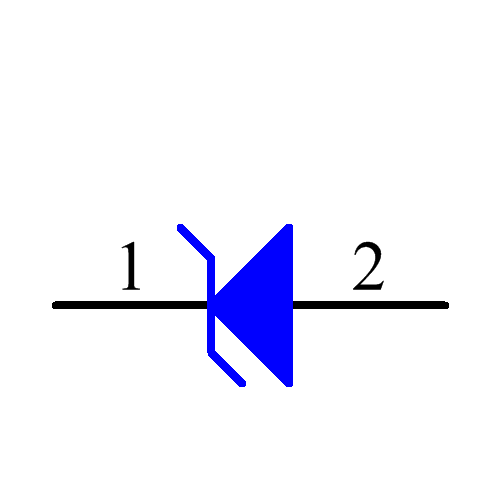

Symbol

‹ ›

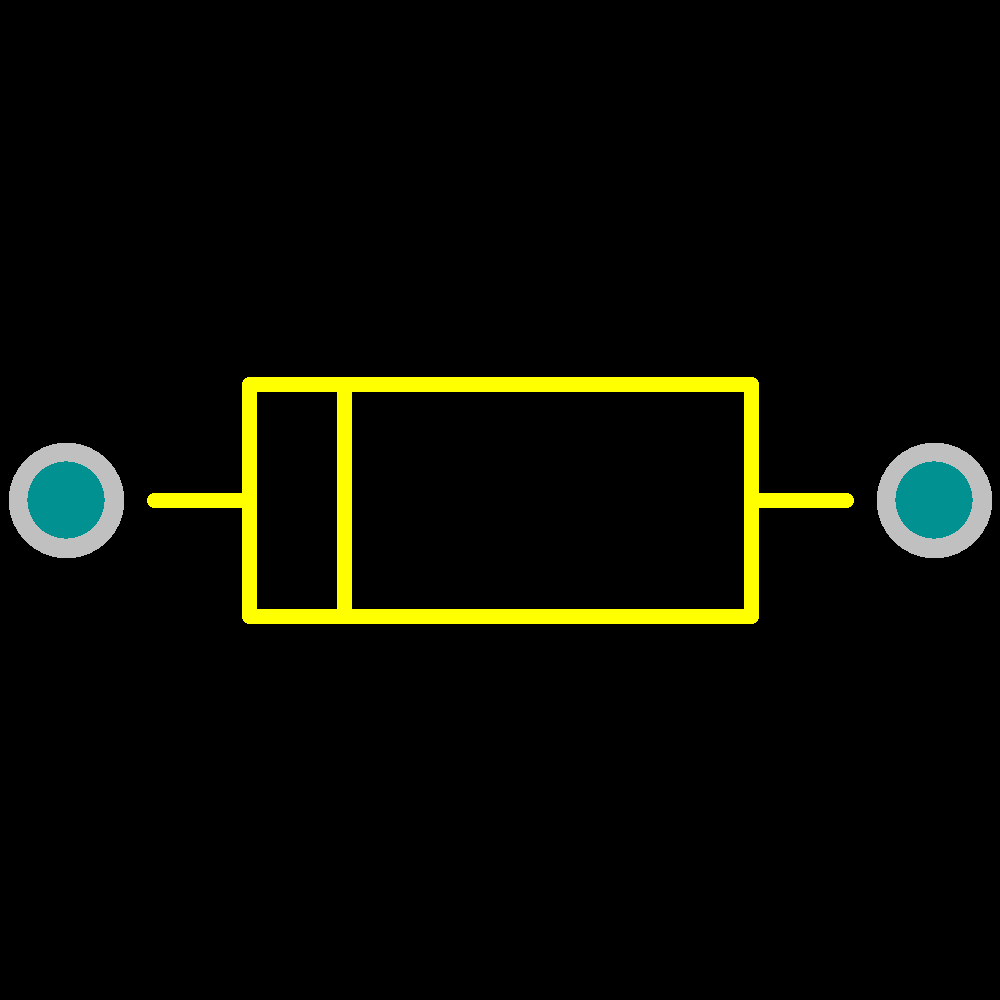

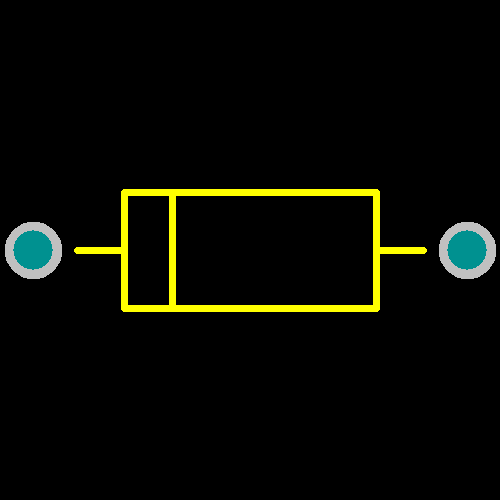

Footprint

‹ ›
