SFR9024TM - onsemi
Tape & Reel (TR) Surface Mount P-Channel Single Mosfet Transistor 7.8A Tc 7.8A 2.5W 20ns
Technical Details
| Case/Package | TO-252 |
| Continuous Drain Current (ID) | 7.8A |
| Drain to Source Breakdown Voltage | -60V |
| Drain to Source Resistance | 280mΩ |
| Drain to Source Voltage (Vdss) | 60V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Fall Time | 20ns |
| Gate to Source Voltage (Vgs) | 30V |
| Input Capacitance | 600pF |
| Introduction Date | 1999-01-01 |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 32W |
| Min Breakdown Voltage | 60V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 2 |
| Rds On Max | 280mΩ |
| REACH SVHC | No |
| Rise Time | 21ns |
| RoHS | Compliant |
| Threshold Voltage | -4V |
| Turn-Off Delay Time | 29ns |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

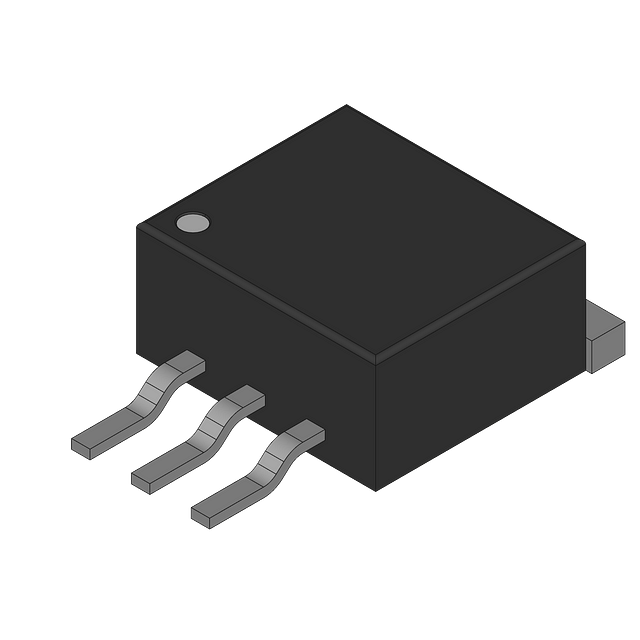

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| Fairchild Semiconductor | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| Infineon | Obsolete | ||
| Fairchild Semiconductor | Obsolete | ||
| STMicroelectronics | Production | ||
| Fairchild Semiconductor | Obsolete | ||
| Fairchild Semiconductor | Obsolete | ||
| Fairchild Semiconductor | Obsolete |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 175
|
$ | 0.5019 | 0.4166 | 0.3714 | |||||
| Farnell |
DE: 0
|
$ | 0.2922 | |||||||
