SL05T1 - onsemi
Trans Voltage Suppressor Diode, 300W, 5V V(RWM), Unidirectional, 1 Element, Silicon, TO-236
Technical Details
| Breakdown Voltage | 7V |
| Capacitance | 5pF |
| Case/Package | SOT-23 |
| China RoHS | Non-Compliant |
| Clamping Voltage | 11V |
| Country of Origin | Mainland China |
| Depth | 1.3mm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2001-12-01 |
| Lead Free | Contains Lead |
| Leakage Current | 20µA |
| Length | 2.9mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Breakdown Voltage | 8V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 225mW |
| Max Surge Current | 17A |
| Min Breakdown Voltage | 6V |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Lines | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Operating Supply Voltage | 5V |
| Packaging | Tape and Reel |
| Peak Pulse Power | 300W |
| Peak Reverse Current | 20µA |
| Polarity | Unidirectional |
| Power Rating | 300W |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Standoff Voltage | 5V |
| RoHS | Compliant |
| Voltage Rating (DC) | 5V |
| Width | 1.4mm |
| Working Voltage | 5V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

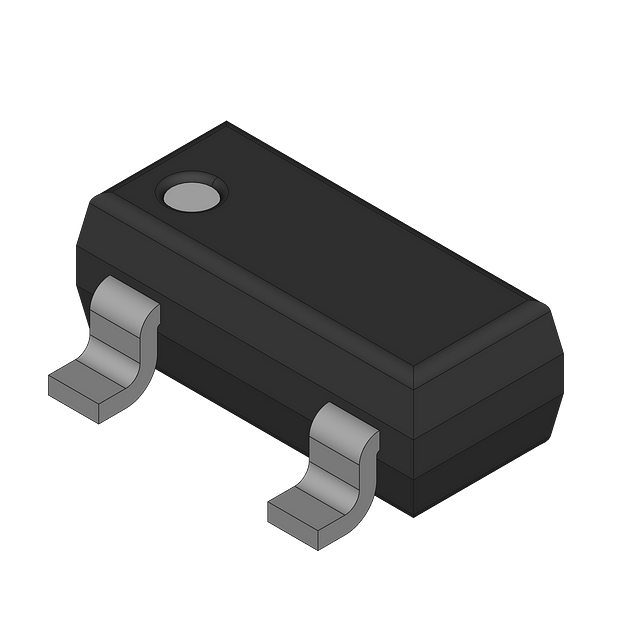

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Production | ||
| Diodes Inc. | Obsolete | ||
| onsemi | Obsolete | ||
| Diodes Inc. | Obsolete | ||
| Protek Devices | Obsolete | ||
| Diodes Inc. | Obsolete | ||
| Semtech | Obsolete | ||
| onsemi | Obsolete | ||
| Semtech | Obsolete | ||
| Diodes Inc. | Obsolete |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 1832
|
$ | 0.1195 | 0.0992 | 0.0884 | |||||
