SL15T1 - onsemi
Trans Voltage Suppressor Diode, 300W, 15V V(RWM), Unidirectional, 1 Element, Silicon, TO-236
Technical Details
| Breakdown Voltage | 17.6V |
| Capacitance | 5pF |
| Case/Package | SOT-23-3 |
| China RoHS | Non-Compliant |
| Clamping Voltage | 30V |
| Composition | Zener |
| Direction | Unidirectional |
| Height | 1.26mm |
| Lead Free | Contains Lead |
| Length | 3.04mm |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 18.5V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 225mW |
| Max Surge Current | 10A |
| Min Breakdown Voltage | 16.7V |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Lines | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 15V |
| Packaging | Tape and Reel |
| Peak Pulse Current | 5A |
| Peak Pulse Power | 300W |
| Peak Reverse Current | 1µA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Power Rating | 300W |
| REACH SVHC | No |
| Reverse Standoff Voltage | 15V |
| RoHS | Non-Compliant |
| Voltage Rating (DC) | 15V |
| Width | 1.4mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

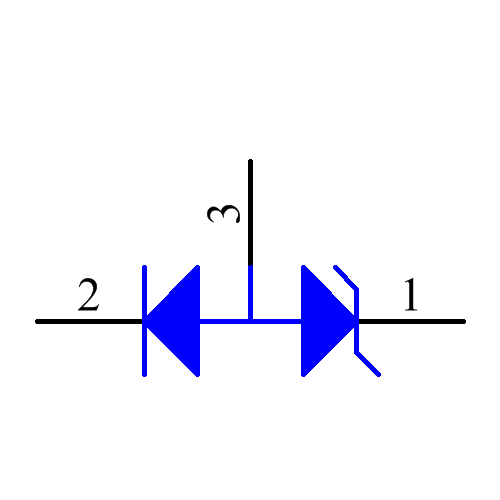

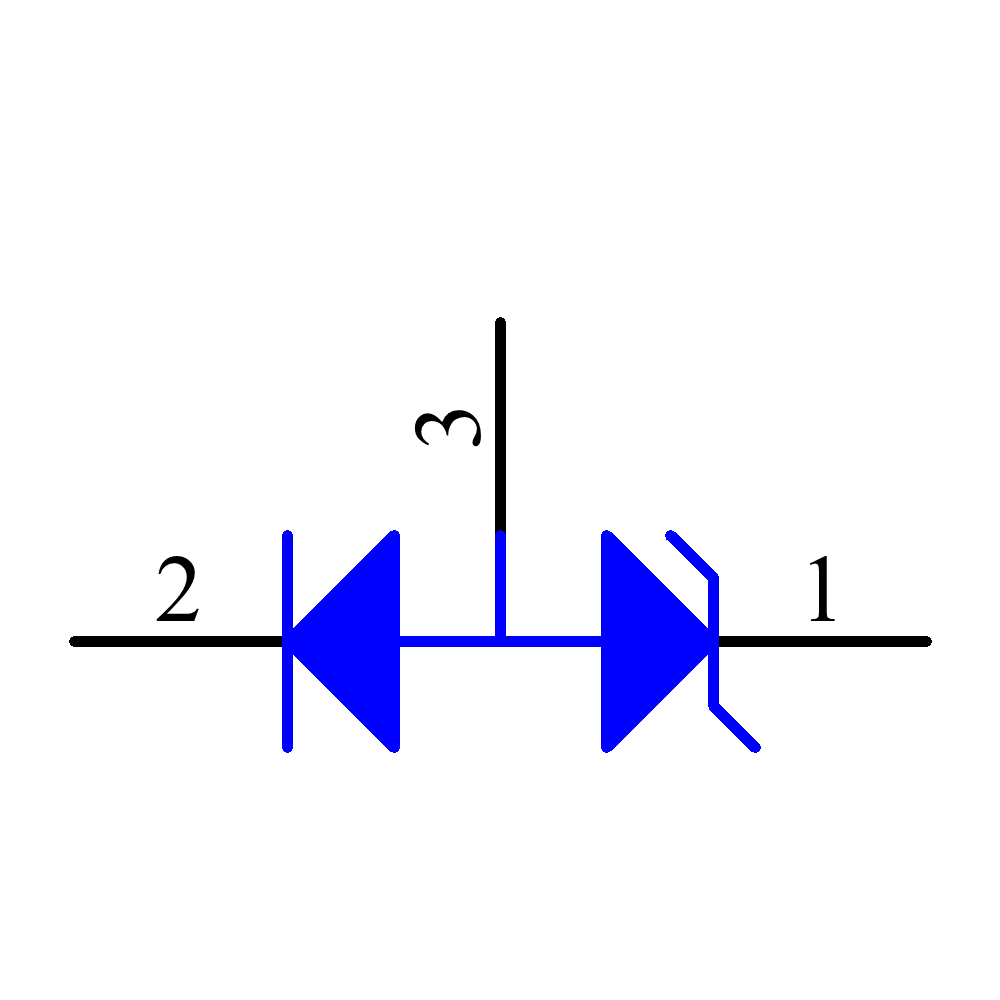

Images
