Technical Details
| Breakdown Voltage | 27.85V |
| Capacitance | 5pF |
| Case/Package | SOT-23 |
| China RoHS | Non-Compliant |
| Clamping Voltage | 55V |
| Depth | 1.3mm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2001-12-01 |
| Lead Free | Contains Lead |
| Leakage Current | 1µA |
| Length | 2.9mm |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 29V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 225mW |
| Max Surge Current | 5A |
| Min Breakdown Voltage | 26.7V |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Lines | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Operating Supply Voltage | 24V |
| Packaging | Tape and Reel |
| Peak Pulse Power | 300W |
| Peak Reverse Current | 1µA |
| Polarity | Unidirectional |
| Power Rating | 300W |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Standoff Voltage | 24V |
| RoHS | Non-Compliant |
| Voltage Rating (DC) | 24V |
| Width | 1.4mm |
| Working Voltage | 24V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

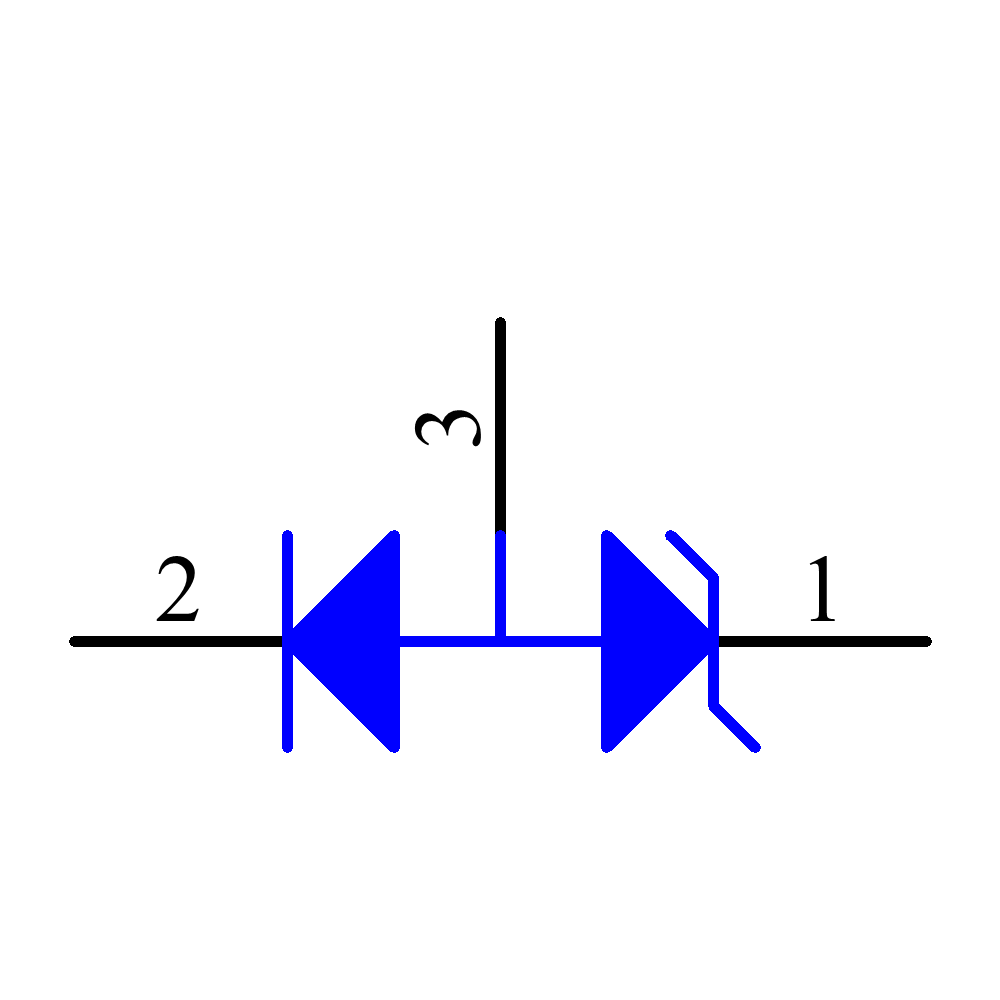

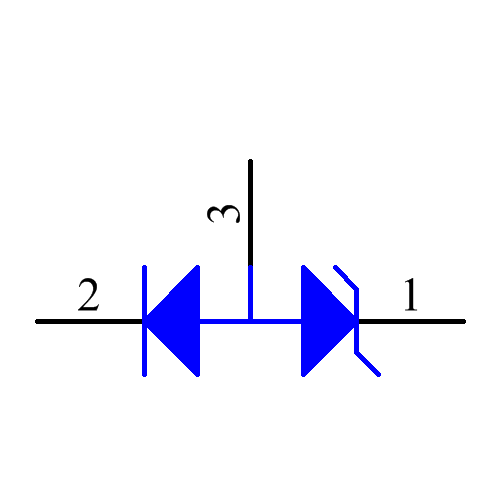

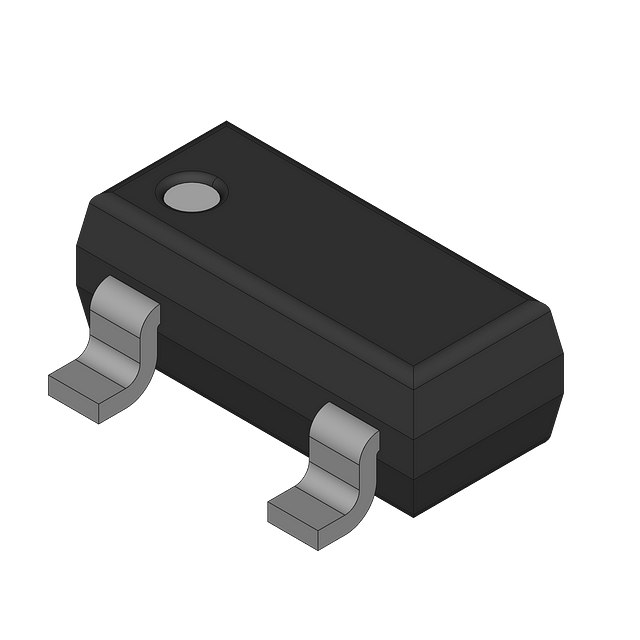

Images
