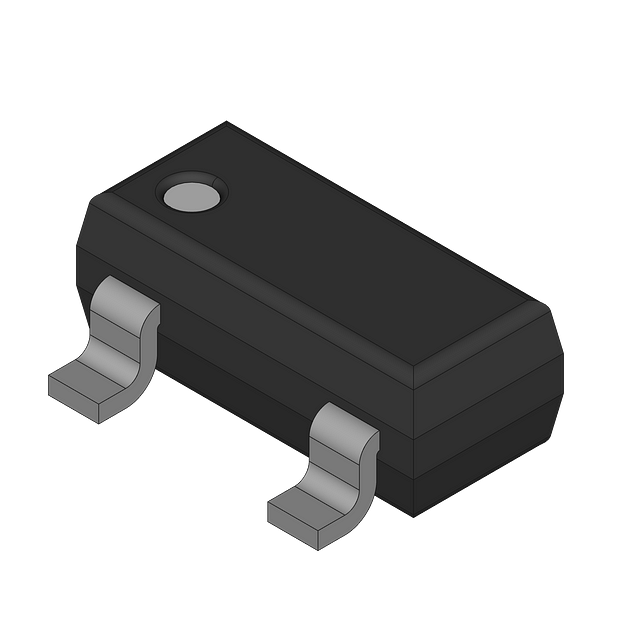

SM12T1 - onsemi
ESD Suppressor Diode TVS Uni-Dir/Bi-Dir 12V 14.525Vbr 19Vc 3-Pin SOT-23 T/R
Technical Details
| Breakdown Voltage | 14.53V |
| Case/Package | SOT-23-3 |
| China RoHS | Non-Compliant |
| Clamping Voltage | 19V |
| Composition | Zener |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 1.11mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2001-06-01 |
| Lead Free | Contains Lead |
| Length | 3.04mm |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 15.75V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 225mW |
| Max Surge Current | 12A |
| Min Breakdown Voltage | 13.3V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Number of Unidirectional Channels | 2 |
| Operating Supply Voltage | 15.75V |
| Peak Pulse Current | 12A |
| Peak Pulse Power | 300W |
| Peak Reverse Current | 1µA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Power Rating | 300W |
| REACH SVHC | No |
| Reverse Standoff Voltage | 12V |
| RoHS | Non-Compliant |
| Termination | SMD/SMT |
| Voltage Rating (DC) | 12V |
| Width | 1.4mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Semtech | Obsolete | ||
| Semtech | Obsolete | ||
| Semtech | Production | ||
| MCC | Production | ||
| STMicroelectronics | Production | ||
| onsemi | Production | ||
| onsemi | Production | ||
| Protek Devices | Production | ||
| onsemi | Production | ||
| Diodes Inc. | Obsolete |
