SMS05T1 - onsemi
Trans Voltage Suppressor Diode, 350W, 5V V(RWM), Unidirectional, 4 Element, Silicon
Technical Details
| Breakdown Voltage | 6.6V |
| Capacitance | 400pF |
| Case/Package | SC |
| China RoHS | Non-Compliant |
| Clamping Voltage | 9.8V |
| Composition | Zener |
| Depth | 1.5mm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2001-03-01 |
| Lead Free | Contains Lead |
| Leakage Current | 20µA |
| Length | 3mm |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 7.2V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 225mW |
| Max Surge Current | 23A |
| Min Breakdown Voltage | 6V |
| Min Operating Temperature | -55°C |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Number of Lines | 4 |
| Number of Pins | 6 |
| Number of Terminals | 6 |
| Number of Unidirectional Channels | 4 |
| Operating Supply Voltage | 5V |
| Packaging | Tape and Reel |
| Peak Pulse Current | 23A |
| Peak Pulse Power | 350W |
| Peak Reverse Current | 20µA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Power Rating | 350W |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Standoff Voltage | 5V |
| RoHS | Non-Compliant |
| Termination | SMD/SMT |
| Voltage Rating (DC) | 5V |
| Width | 1.7mm |
| Working Voltage | 5V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

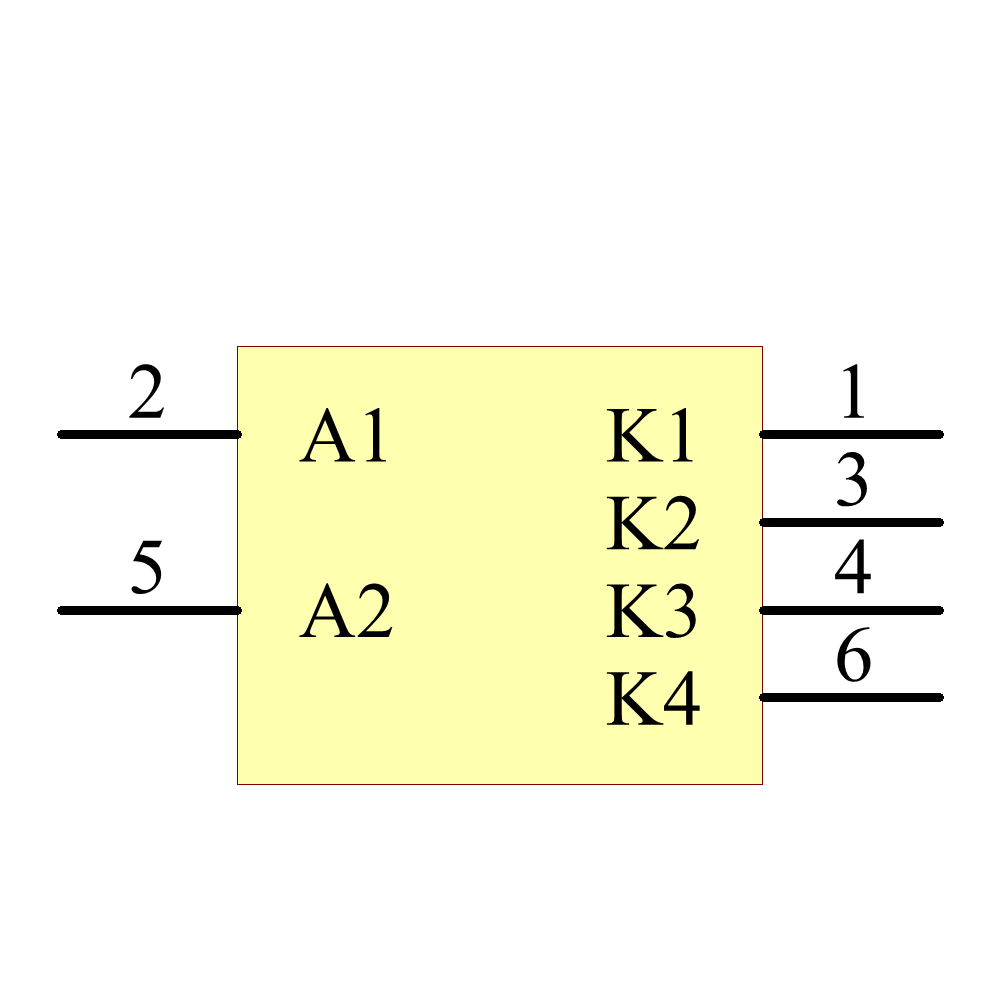

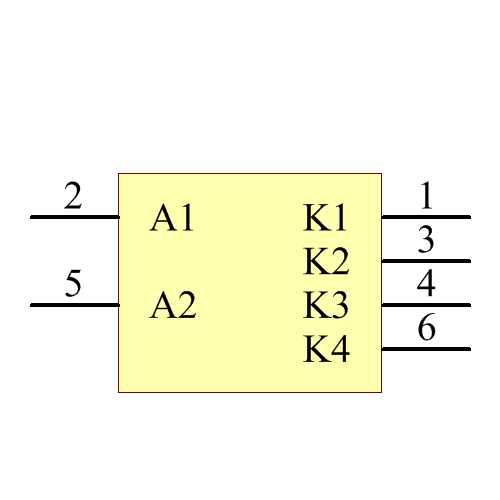

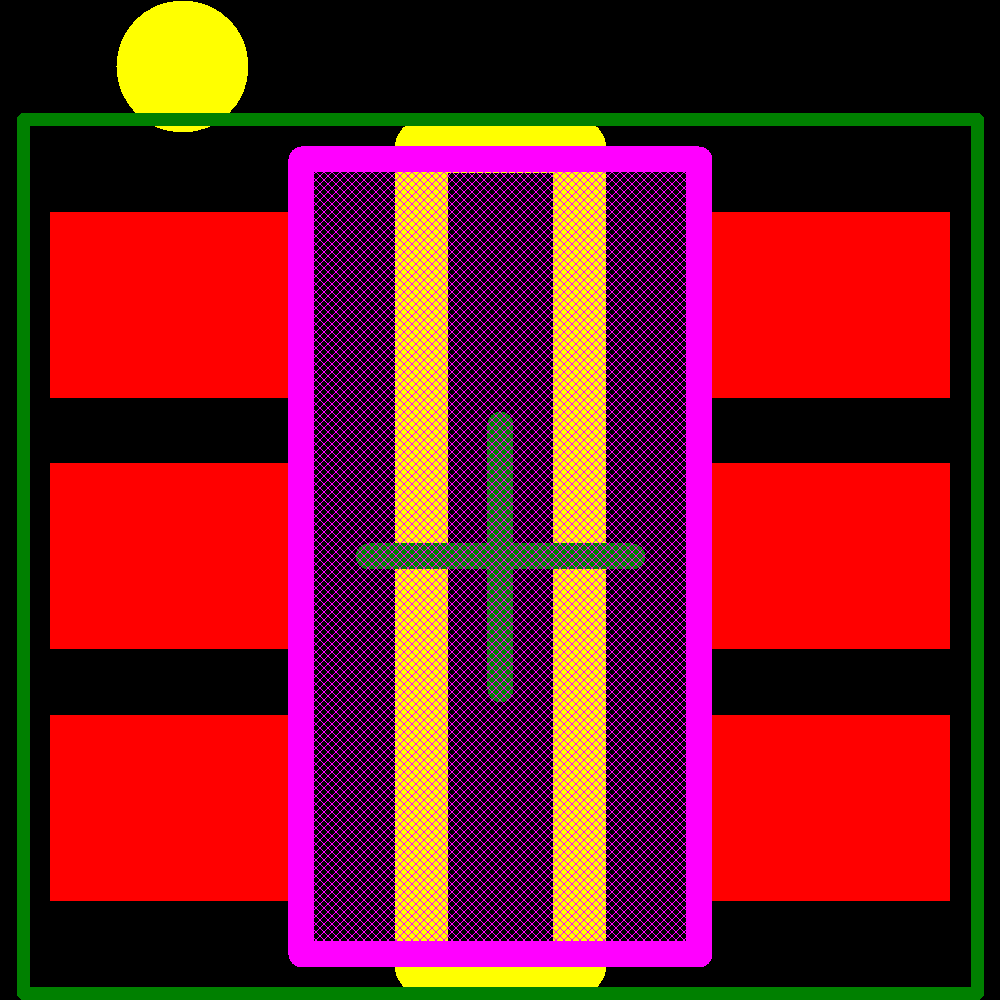

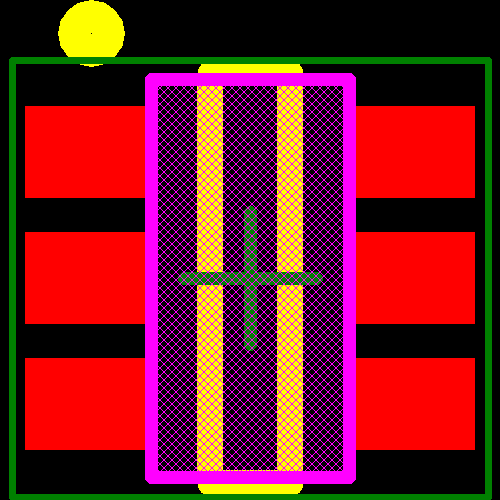

Images
