STD25P03LT4G - onsemi
Tape & Reel (TR) Surface Mount P-Channel Single Mosfet Transistor 25A Tc 25A 75W 16ns
Technical Details
| Case/Package | DPAK |
| Continuous Drain Current (ID) | 25A |
| Drain to Source Resistance | 80mΩ |
| Drain to Source Voltage (Vdss) | 30V |
| Element Configuration | Single |
| Fall Time | 16ns |
| Gate to Source Voltage (Vgs) | 15V |
| Input Capacitance | 1.26nF |
| Lead Free | Lead Free |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 75W |
| Min Breakdown Voltage | 30V |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 2 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rds On Max | 80mΩ |
| REACH SVHC | No |
| Rise Time | 37ns |
| RoHS | Compliant |
| Turn-Off Delay Time | 15ns |
| Turn-On Delay Time | 9ns |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

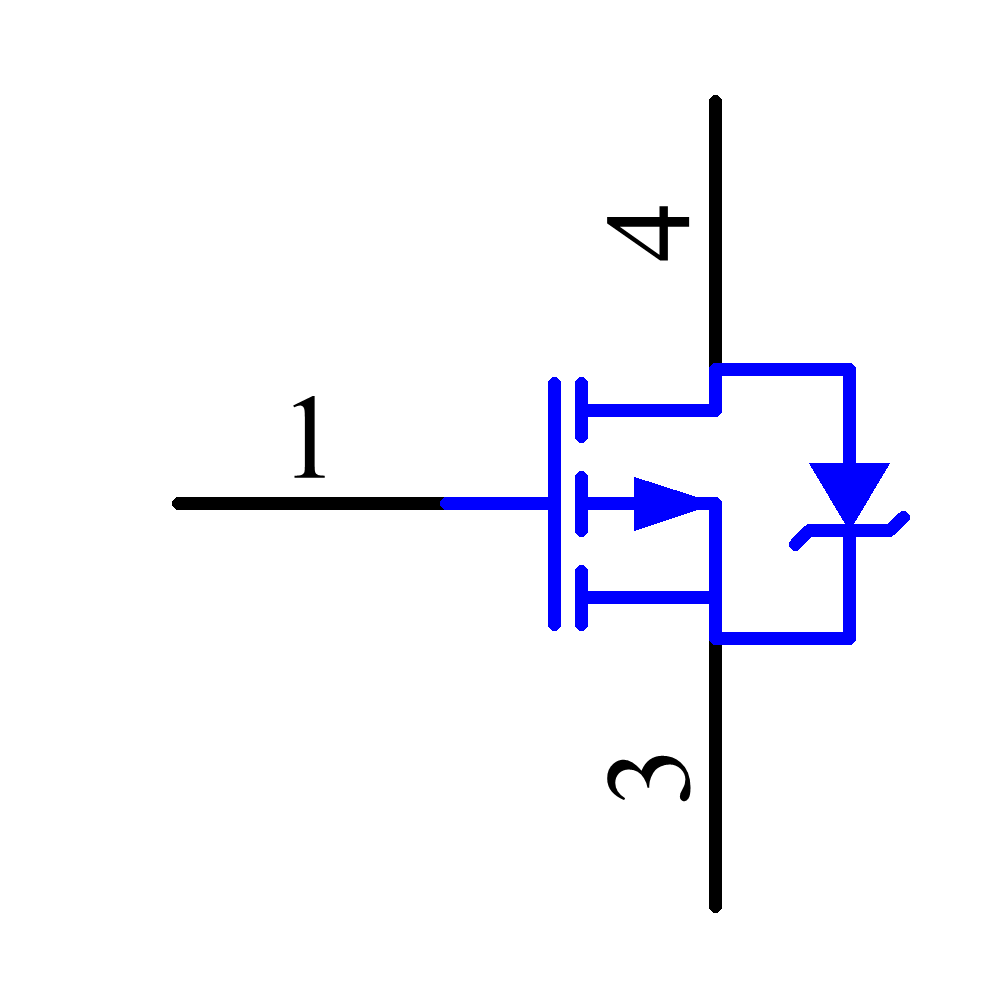

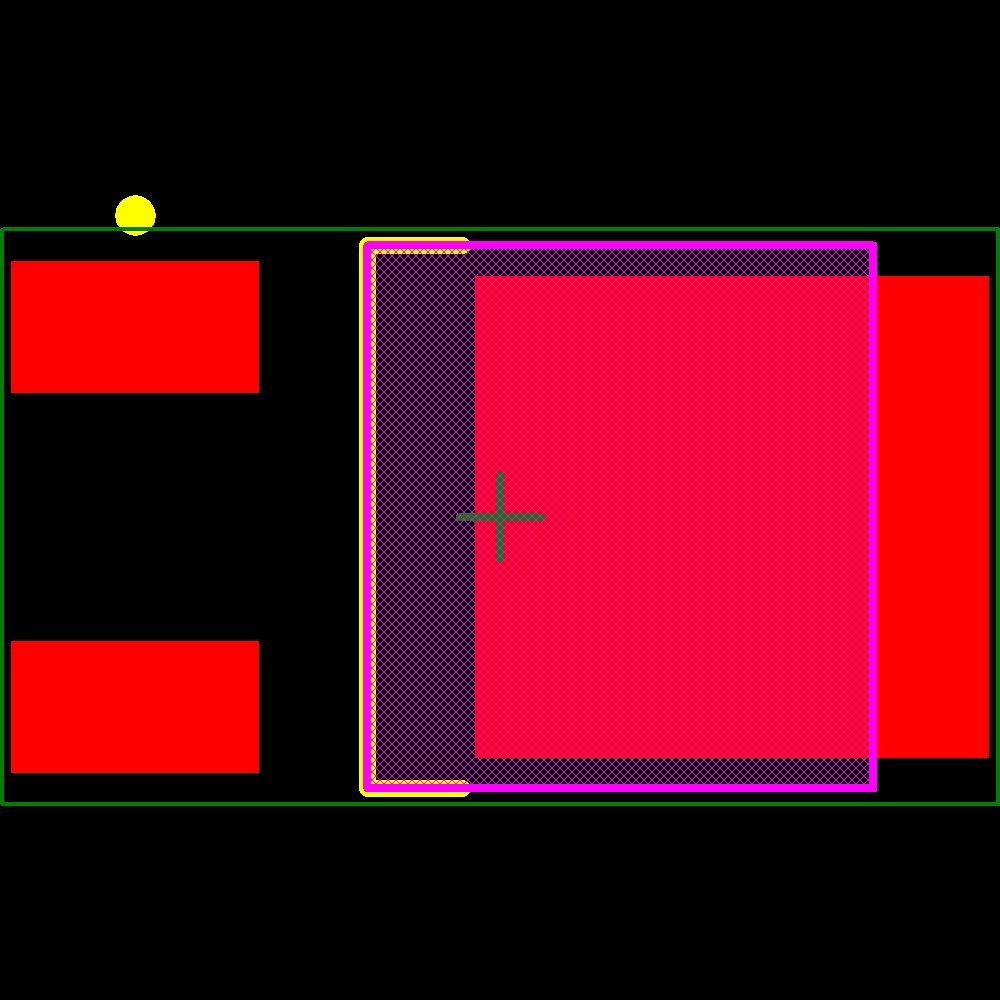

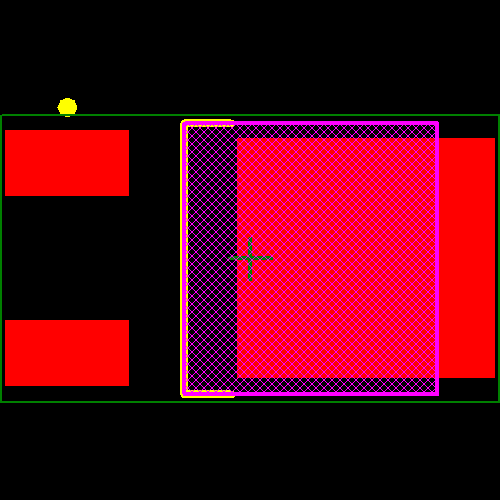

Images
