SZ1SMB5925BT3G - onsemi
3.0 W Zener Diode Voltage Regulator 10 V (Automotive). ONSSPCDDECI9E6E;
Technical Details
| Case/Package | SMB |
| China RoHS | Non-Compliant |
| Country of Origin | Malaysia |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Halogen Free | Halogen Free |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Impedance | 4.5Ω |
| Introduction Date | 2011-11-09 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 550mW |
| Max Reverse Leakage Current | 5µA |
| Min Operating Temperature | -65°C |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Tape and Reel |
| Polarity | Unidirectional |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reference Voltage | 10V |
| RoHS | Compliant |
| Schedule B | 8541100050 |
| Tolerance | 5% |
| Voltage Tolerance | 5% |
| Zener Current | 37.5mA |
| Zener Voltage | 10V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

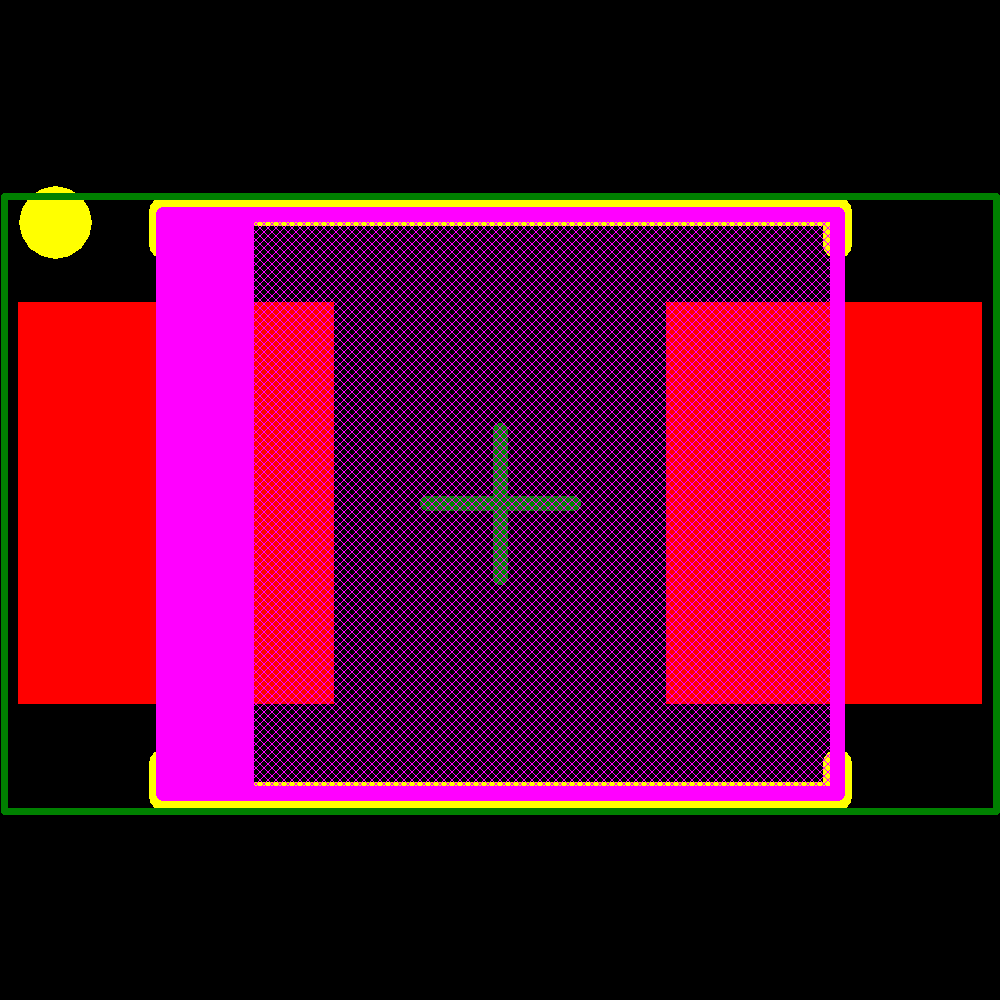

Images
