SZ1SMB5928BT3G - onsemi
3.0 W Zener Diode Voltage Regulator 13 V (Automotive). ONSSPCDDECI9E6E;
Technical Details
| Case/Package | SMB |
| China RoHS | Non-Compliant |
| Country of Origin | Malaysia |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Halogen Free | Halogen Free |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Impedance | 7Ω |
| Introduction Date | 2011-11-09 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 550mW |
| Max Reverse Leakage Current | 1µA |
| Min Operating Temperature | -65°C |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Tape and Reel |
| Peak Reverse Current | 1µA |
| Polarity | Unidirectional |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reference Voltage | 13V |
| Reverse Standoff Voltage | 9.9V |
| RoHS | Compliant |
| Tolerance | 5% |
| Voltage Tolerance | 5% |
| Zener Current | 28.8mA |
| Zener Voltage | 13V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

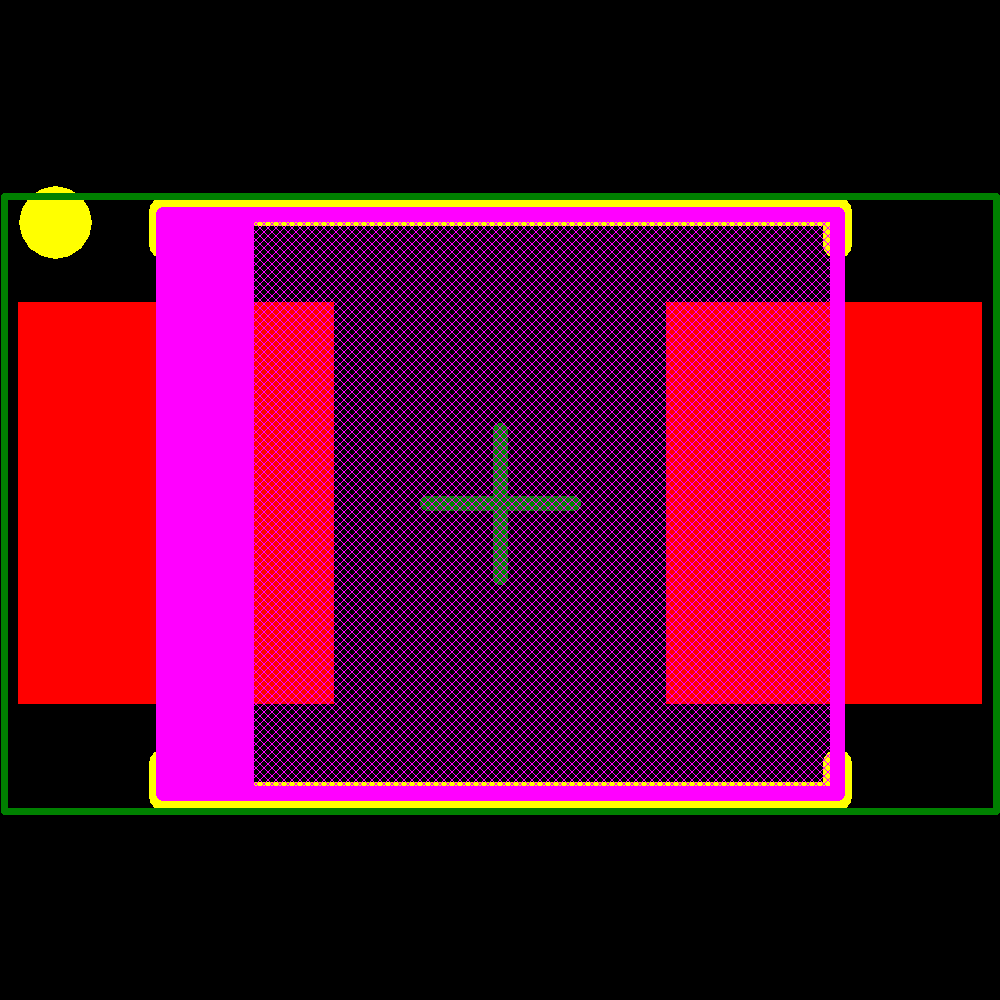

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Taiwan Semiconductor | Production | ||
| Diodes Inc. | Production | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Production | ||
| Diodes Inc. | Production | ||
| MCC | Production |
