SZSM05T1G - onsemi
ESD Suppressor TVS Uni-Dir/Bi-Dir 5V 3-Pin SOT-23 T/R Automotive AEC-Q101
Technical Details
| Breakdown Voltage | 6.8V |
| Capacitance | 225pF |
| Case/Package | SOT-23-3 |
| China RoHS | Compliant |
| Clamping Voltage | 9.8V |
| Composition | Zener |
| Direction | Unidirectional |
| Height | 1.11mm |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Breakdown Voltage | 7.3V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 225mW |
| Max Surge Current | 17A |
| Min Breakdown Voltage | 6.2V |
| Min Operating Temperature | -55°C |

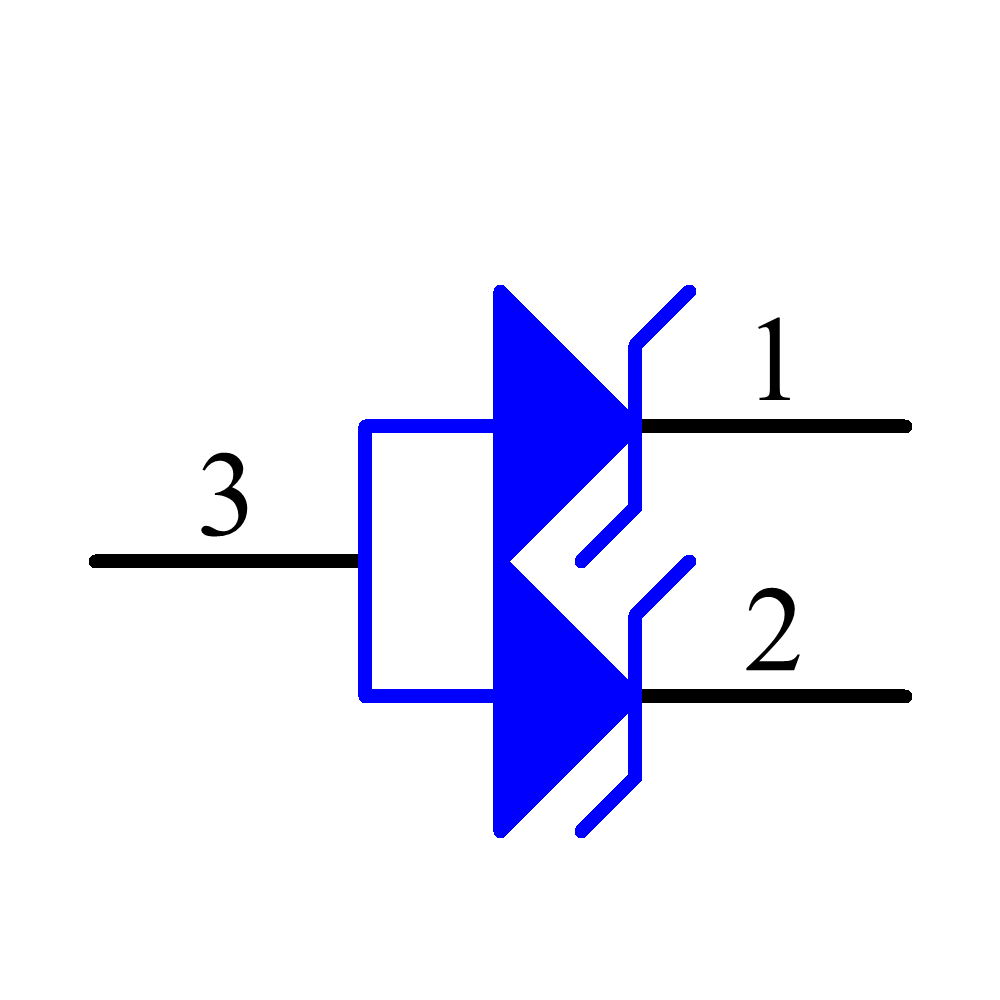

| Number of Channels | 2 |
| Number of Elements | 2 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Number of Unidirectional Channels | 2 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 17A |
| Peak Pulse Power | 300W |
| Peak Reverse Current | 10µA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 5V |
| RoHS | Compliant |
| Schedule B | 8536300000, 8536300000|8536300000|8536300000|8536300000|8536300000 |
| Termination | SMD/SMT |
| Working Voltage | 5V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
Images
element14 APAC
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Changjiang Electronics | Unknown | ||
| Protek Devices | Production | ||
| onsemi | Production | ||
| Diodes Inc. | Obsolete | ||
| Vishay | Obsolete | ||
| Diodes Inc. | Obsolete | ||
| onsemi | Obsolete | ||
| Diodes Inc. | EOL | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete |
