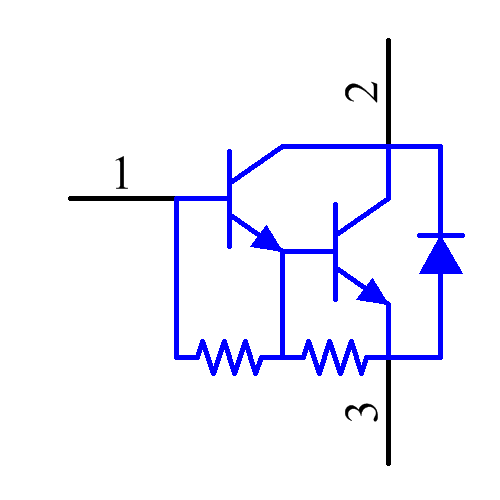

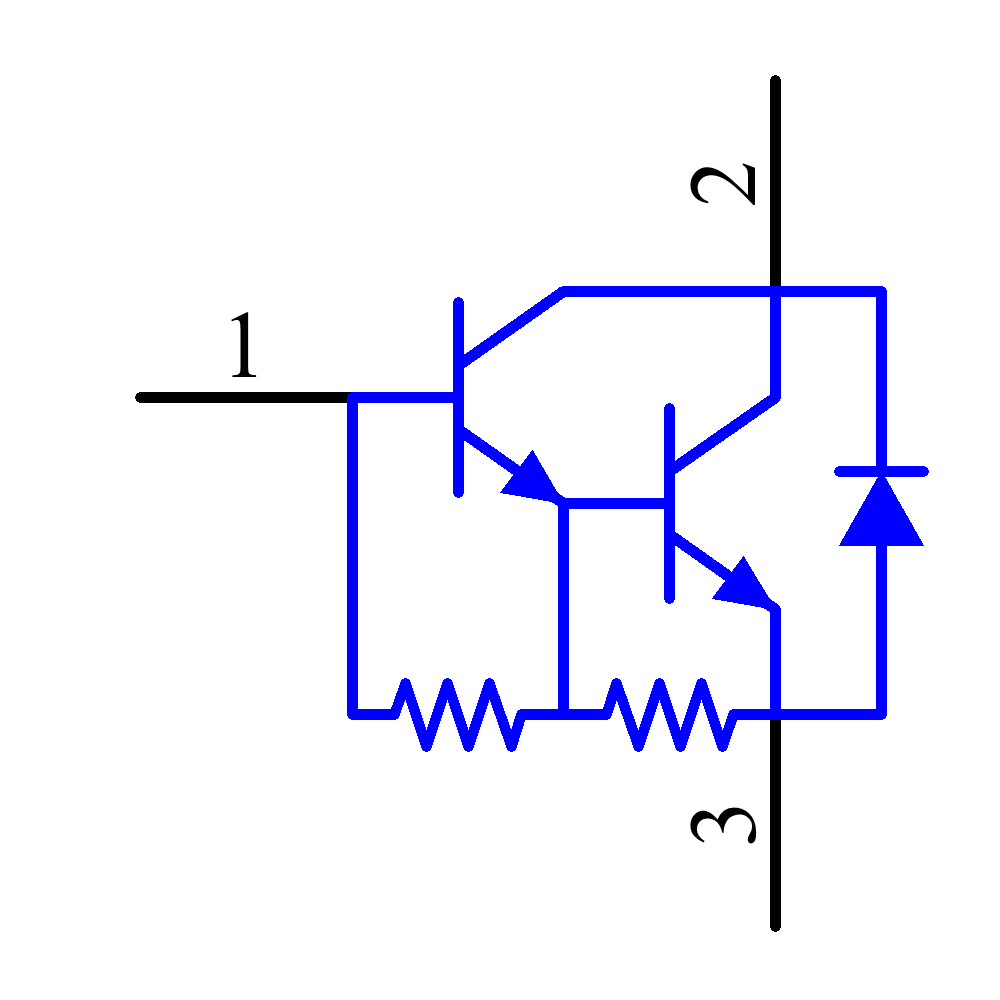

TIP100 - onsemi
Tube Through Hole NPN - Darlington Single Bipolar (BJT) Transistor 1000 @ 3A 4V 8A 2W 60V
Technical Details
| Case/Package | TO-220-3 |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | 60V |
| Collector Emitter Breakdown Voltage | 60V |
| Collector Emitter Saturation Voltage | 2V |
| Collector Emitter Voltage (VCEO) | 60V |
| Continuous Collector Current | 8A |
| Country of Origin | Philippines |
| Current Rating | 8A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| hFE Min | 200 |
| Harmonized Tariff Schedule (HTS) Code | 8541.29.00.75 |
| Introduction Date | 1986-07-01 |
| Lead Free | Lead Free |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Breakdown Voltage | 60V |
| Max Collector Current | 8A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 80W |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Bulk |
| Polarity | NPN |
| Power Dissipation | 2W |
| REACH SVHC | No |
| RoHS | Compliant |
| Transition Frequency | 80MHz |
| Voltage Rating (DC) | 60V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
Images

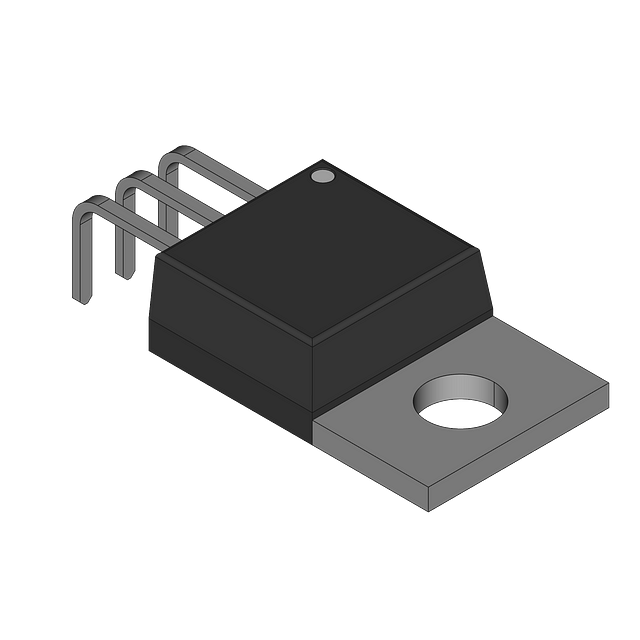

Rochester Electronics
