Technical Details
| Case/Package | TO-220-3 |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | 80V |
| Collector Emitter Breakdown Voltage | 80V |
| Collector Emitter Voltage (VCEO) | 80V |
| Continuous Collector Current | 8A |
| Country of Origin | Philippines |
| Current Rating | 8A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| hFE Min | 200 |
| Introduction Date | 1995-07-01 |
| Lead Free | Contains Lead |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Collector Current | 8A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 80W |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Polarity | NPN |
| Power Dissipation | 2W |
| REACH SVHC | No |
| RoHS | Compliant |
| Voltage Rating (DC) | 80V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

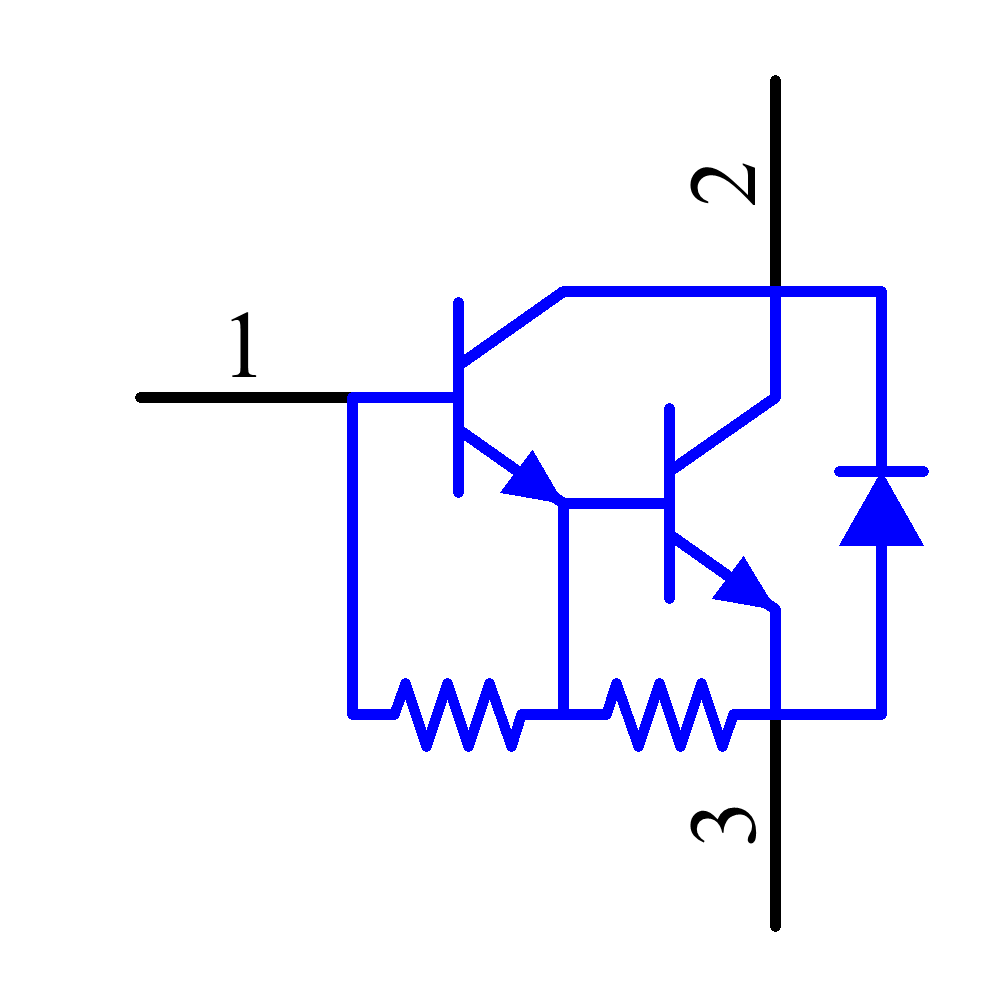

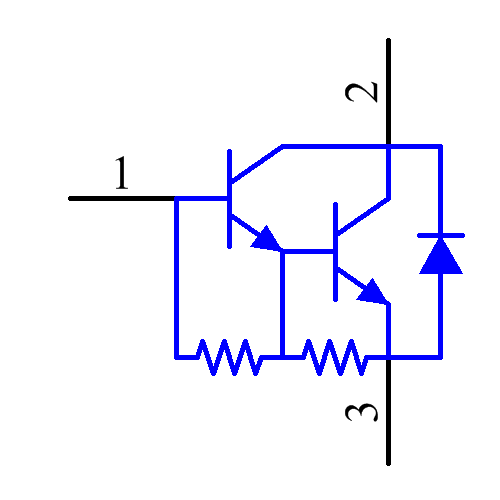

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Multicomp | Production | ||
| Bourns | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| Central Semiconductor | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Central Semiconductor | Obsolete | ||
| onsemi | Obsolete |
