TIP107G - onsemi

Bipolar junction transistor, PNP, 8 A, 100 V, THT, TO-220, TIP107G

Technical Details

Case/Package	TO-220-3
China RoHS	Non-Compliant
Collector Base Voltage (VCBO)	100V
Collector Emitter Saturation Voltage	2V
Collector Emitter Voltage (VCEO)	100V
Country of Origin	Mainland China
Current Rating	-8A
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Emitter Base Voltage (VEBO)	5V
Height	9.28mm
hFE Min	200
Harmonized Tariff Schedule (HTS) Code	8541.29.00.95
Introduction Date	1995-07-01
Lead Free	Lead Free
Length	10.28mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Collector Current	8A
Max Operating Temperature	150°C
Max Power Dissipation	80W
Min Operating Temperature	-65°C
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Polarity	PNP
Power Dissipation	2W
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8541290080, 8541290080\|8541290080, 8541290080\|8541290080\|8541290080, 8541290080\|8541290080\|8541290080\|8541290080
Transition Frequency	4MHz
Voltage Rating (DC)	-100V
Weight	4.535924g
Width	4.82mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

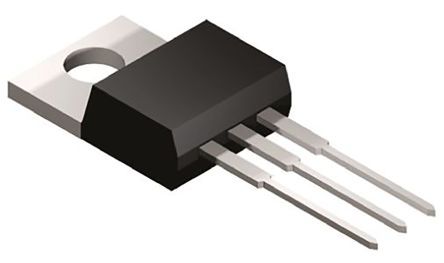

Images

onsemi TIP107G | RS

RS

Datasheets

Lifecycle Status Indicator

Production

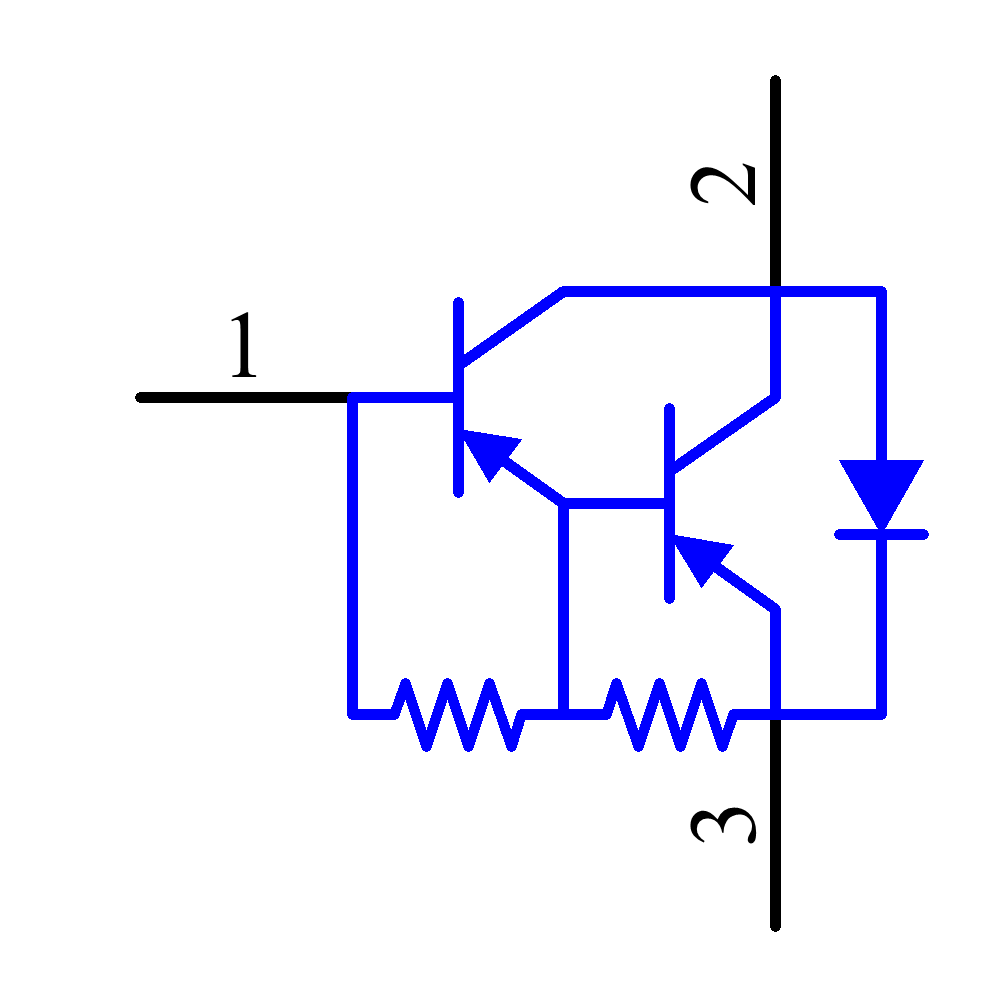

Symbol

TIP107G Symbol - onsemi

TIP107G Symbol - onsemi

TIP107G Symbol - onsemi

TIP107G Symbol - onsemi

‹ ›

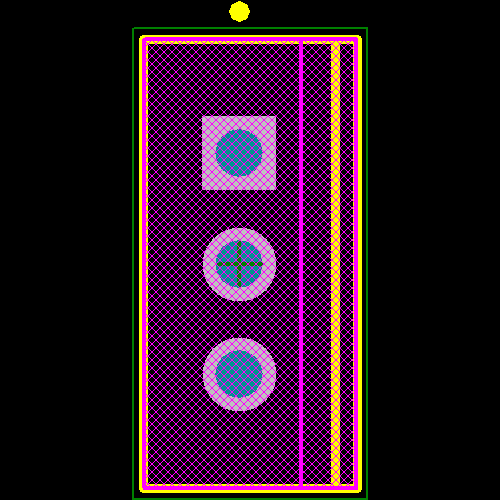

Footprint
