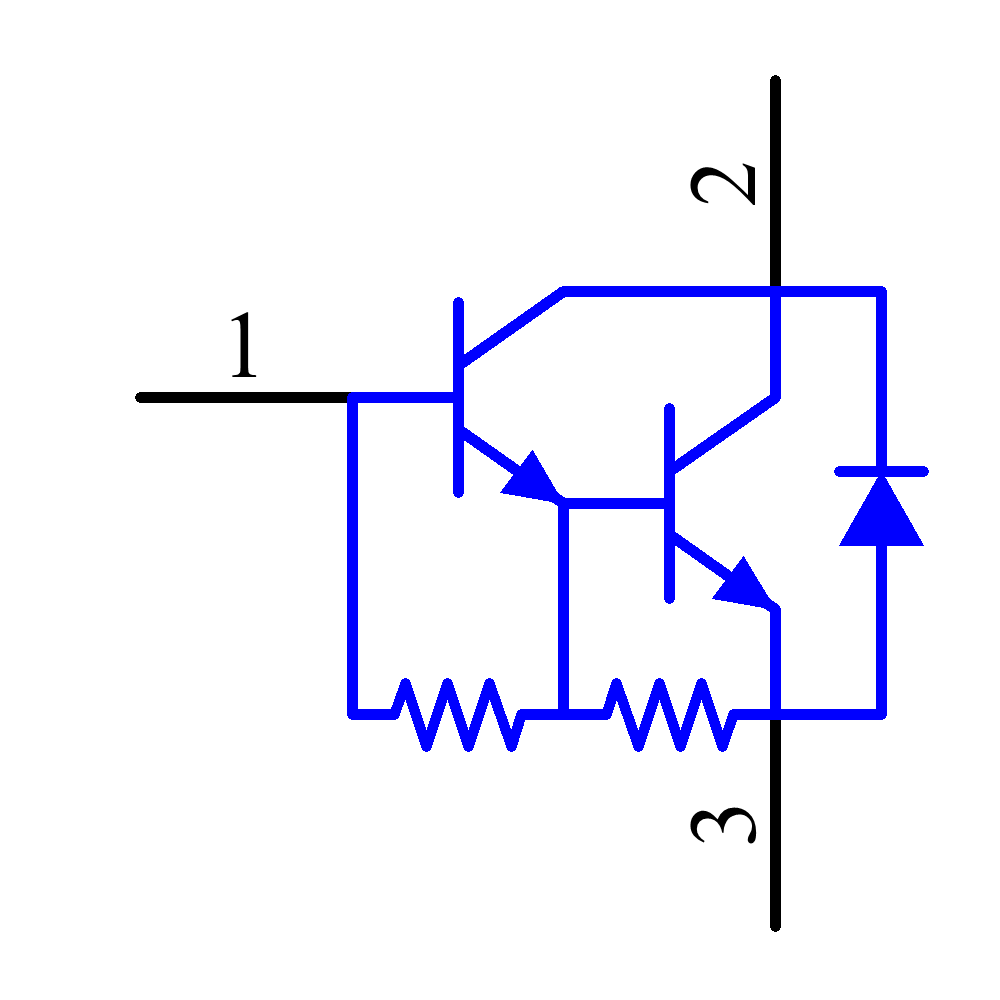

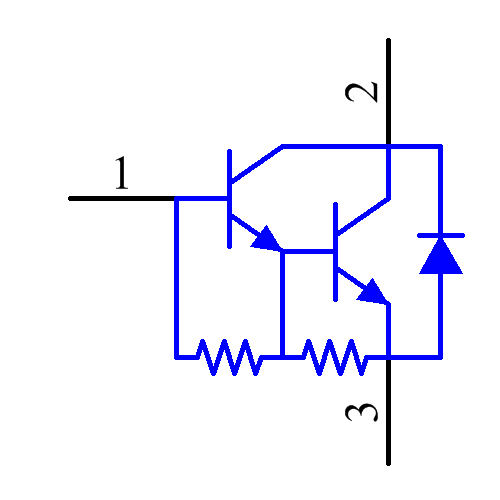

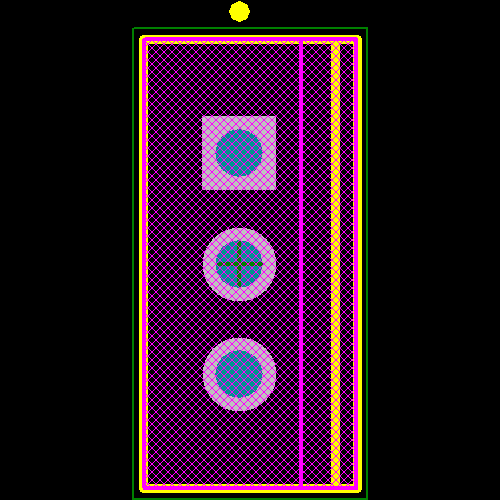

TIP112 - onsemi
Bulk Through Hole NPN - Darlington Single Bipolar (BJT) Transistor 1000 @ 1A 4V 2A 2W 40MHz
Technical Details
| Case/Package | TO-220-3 |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | 100V |
| Collector Emitter Breakdown Voltage | 100V |
| Collector Emitter Saturation Voltage | 2.5V |
| Collector Emitter Voltage (VCEO) | 100V |
| Contact Plating | Tin |
| Continuous Collector Current | 2A |
| Country of Origin | Mainland China |
| Current Rating | 2A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| Height | 12.7mm |
| hFE Min | 500 |
| Introduction Date | 1995-07-01 |
| Lead Free | Lead Free |
| Length | 12.7mm |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 100V |
| Max Collector Current | 2A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 50W |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Bulk |
| Polarity | NPN |
| Power Dissipation | 50W |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Transition Frequency | 25MHz |
| Voltage Rating (DC) | 100V |
| Weight | 1.214g |
| Width | 12.7mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No
