onsemi - TIP3055G

TIP3055G - onsemi

Transistor, Bipolar, Si, NPN, Power, Vceo 60VDC, IC 15A, Pd 90W, SOT-93 (TO-218), Hfe 5

 Datasheets

Technical Details

Case/Package TO-247
China RoHS Compliant
Collector Base Voltage (VCBO) 100V
Collector Emitter Breakdown Voltage 60V
Collector Emitter Saturation Voltage 1.1V
Collector Emitter Voltage (VCEO) 60V
Country of Origin Mainland China
Current Rating 15A
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
Emitter Base Voltage (VEBO) 7V
Frequency 2.5MHz
Gain Bandwidth Product 2.5MHz
Height 20.3454mm
hFE Min 5
Introduction Date 1991-06-01
Lead Free Lead Free
Length 15.2146mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Collector Current 15A
Max Frequency 2.5MHz
Max Operating Temperature 150°C
Max Power Dissipation 90W
Min Operating Temperature -65°C
Number of Elements 1
Number of Pins 3
Number of Terminals 3
Polarity NPN
Power Dissipation 90W
Radiation Hardening No
REACH SVHC Yes
RoHS Compliant
Schedule B 8541290080, 8541290080|8541290080, 8541290080|8541290080|8541290080, 8541290080|8541290080|8541290080|8541290080
Transition Frequency 2.5MHz
Voltage Rating (DC) 60V
Weight 4.535924g
Width 4.9022mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

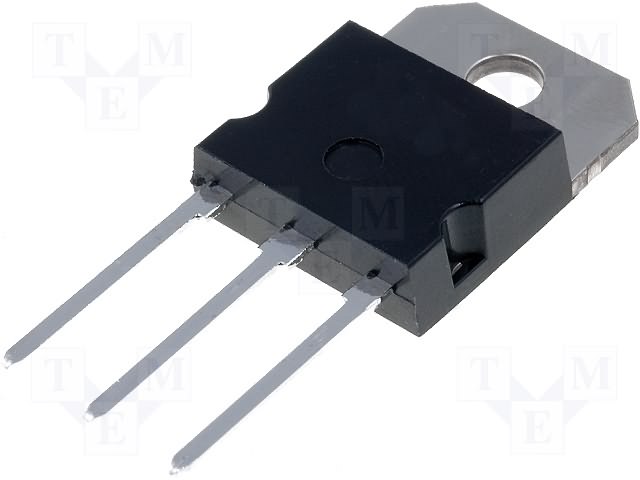

Images

onsemi TIP3055G | Farnell

Farnell

Datasheets

 RS
 RS
 RS

Lifecycle Status Indicator

   Production

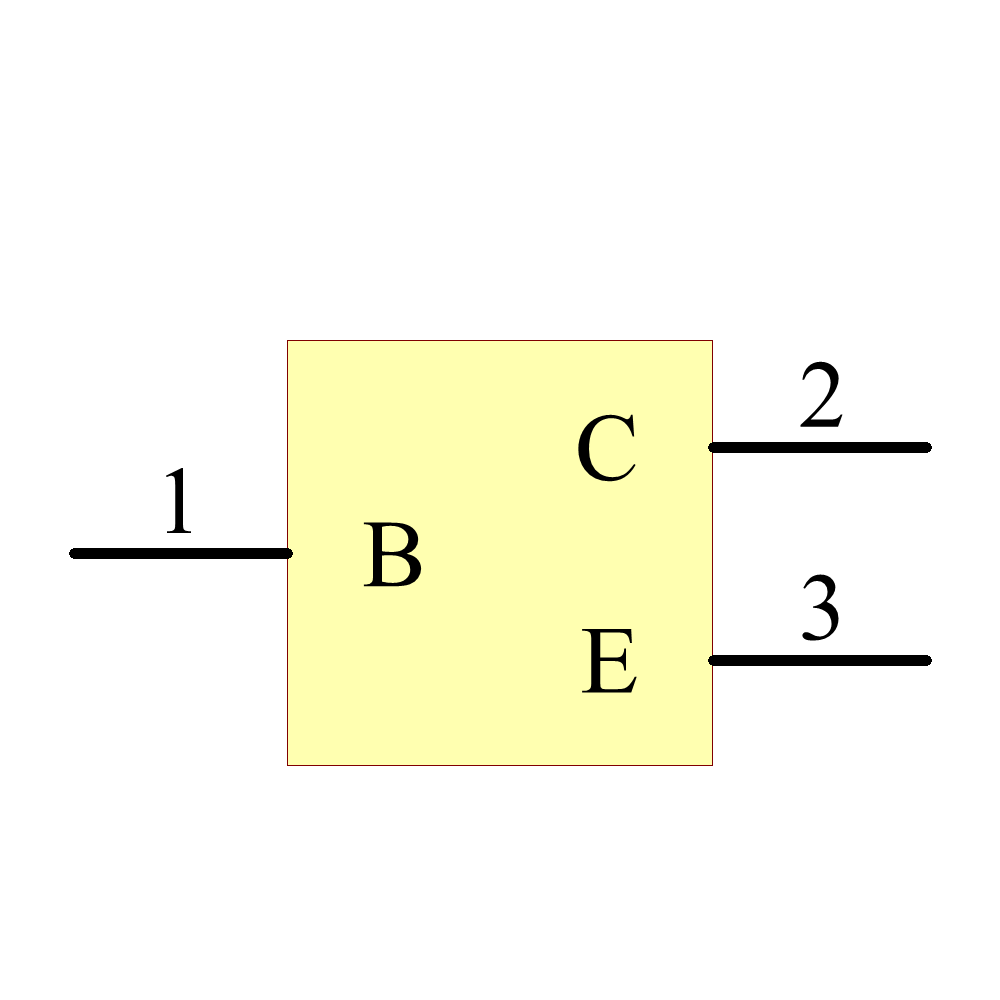

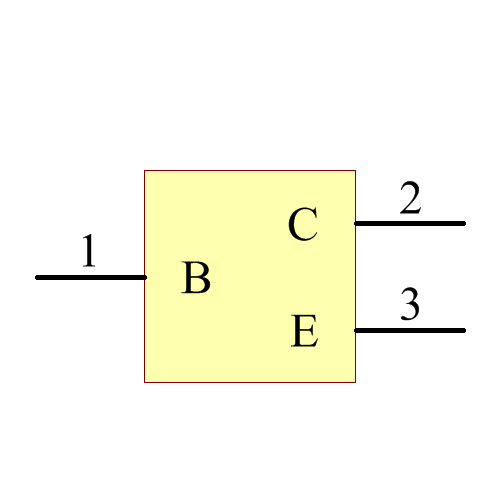

Symbol

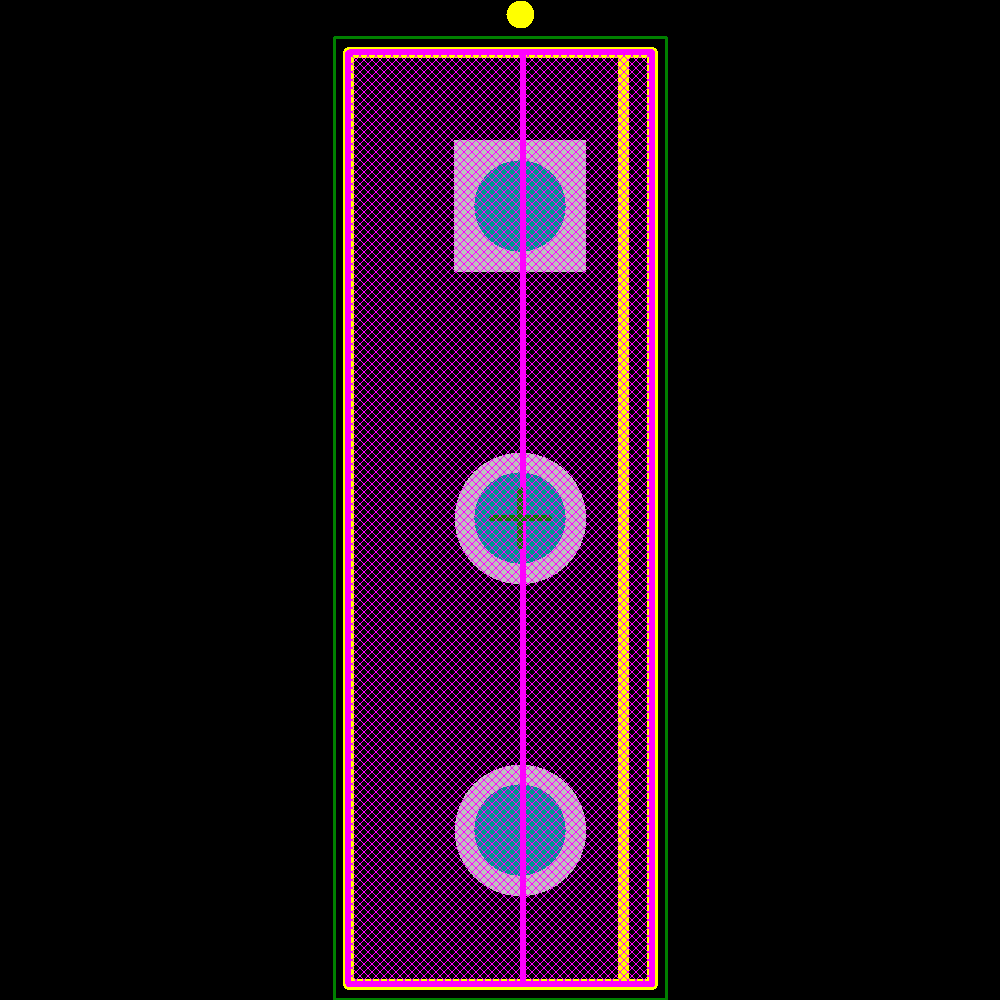

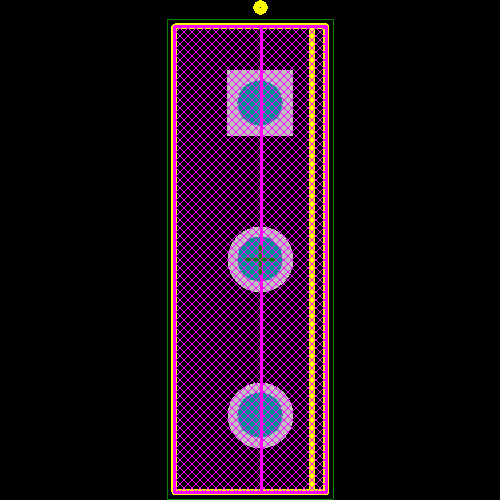

Footprint
