Bipolar (BJT) Single Transistor, NPN, 100 V, 25 A, 125 W, TO-247, Through Hole

 Datasheets

Technical Details

Case/Package TO-247
China RoHS Compliant
Collector Base Voltage (VCBO) 100V
Collector Emitter Breakdown Voltage 100V
Collector Emitter Saturation Voltage 1.8V
Collector Emitter Voltage (VCEO) 100V
Country of Origin Mainland China
Current Rating 25A
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
Emitter Base Voltage (VEBO) 5V
Frequency 3MHz
Gain Bandwidth Product 3MHz
Height 20.3454mm
hFE Min 15
Introduction Date 1991-06-01
Lead Free Lead Free
Length 15.2146mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Collector Current 25A
Max Frequency 3MHz
Max Operating Temperature 150°C
Max Power Dissipation 125W
Min Operating Temperature -65°C
Number of Elements 1
Number of Pins 3
Number of Terminals 3
Polarity NPN
Power Dissipation 125W
Radiation Hardening No
REACH SVHC Yes
RoHS Compliant
Schedule B 8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|85
Transition Frequency 3MHz
Voltage Rating (DC) 100V
Weight 4.535924g
Width 4.9022mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

onsemi TIP35CG | Future Electronics

Future Electronics

Datasheets

 RS
 RS
 RS

Lifecycle Status Indicator

   Production

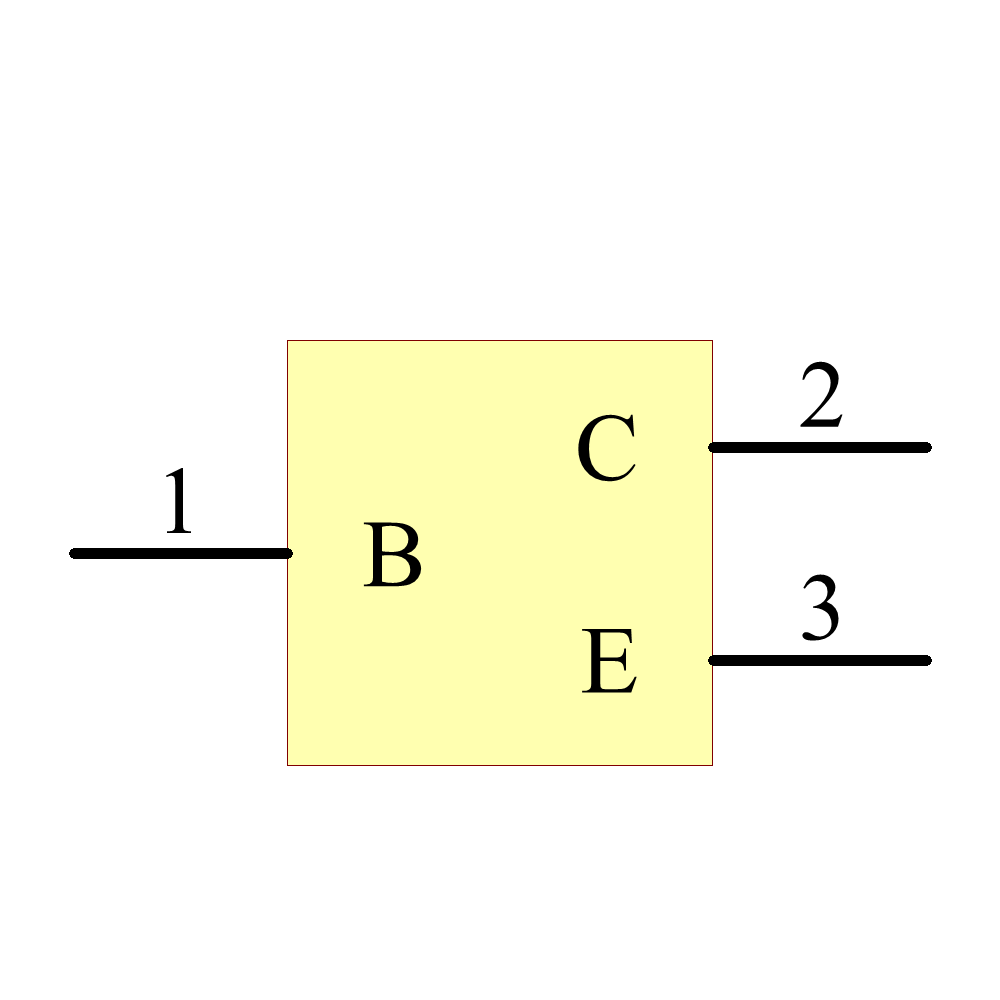

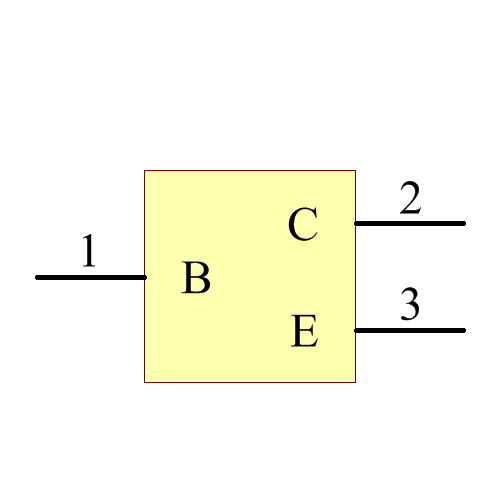

Symbol

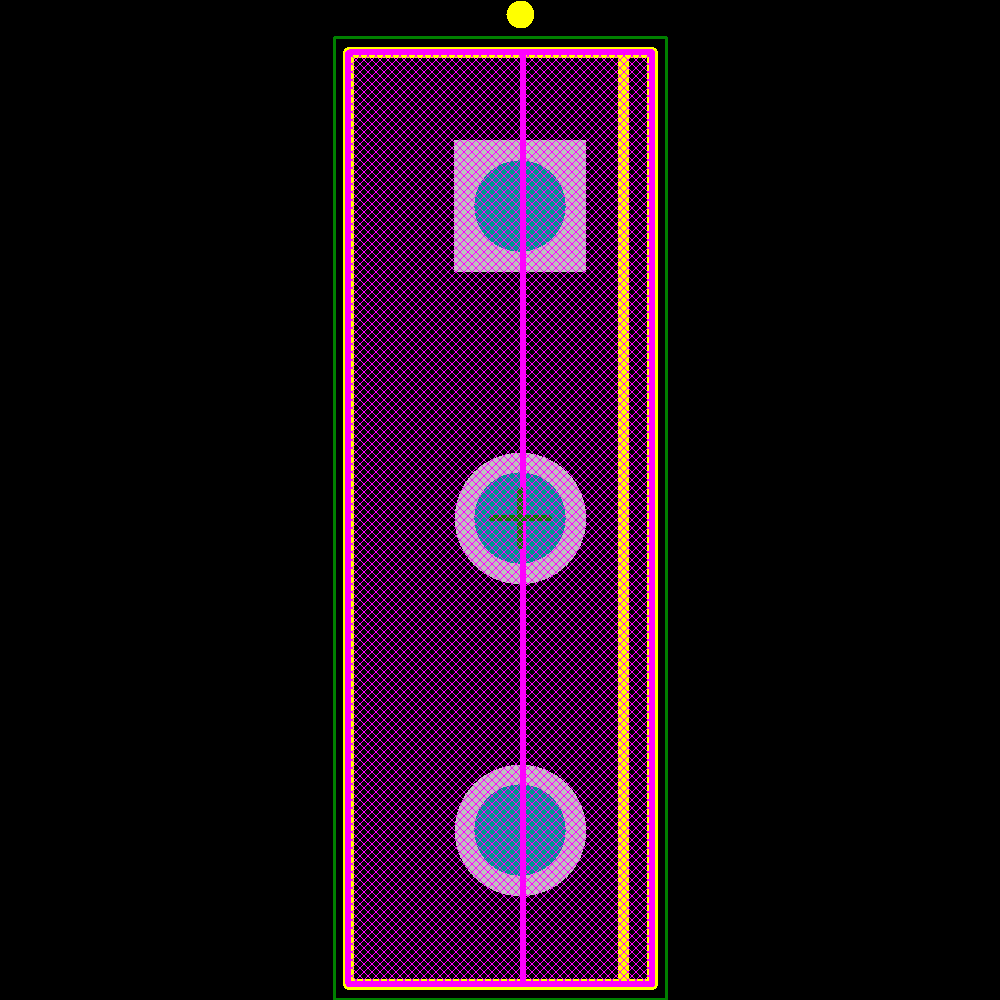

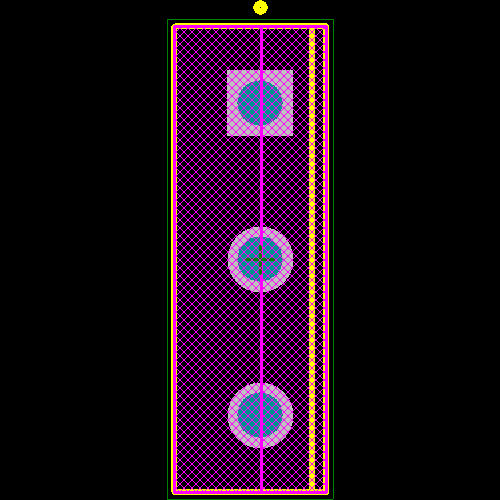

Footprint
