TIP36B - onsemi
Power Bipolar Transistor, 25A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-218, Plastic/Epoxy, 3 Pin
Technical Details
| Collector Emitter Voltage (VCEO) | 80V |
| hFE Min | 15 |
| Lifecycle Status | Obsolete |
| Max Collector Current | 25A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 125W |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Polarity | PNP |
| REACH SVHC | Yes |
| RoHS | Non-Compliant |
| Transition Frequency | 3MHz |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

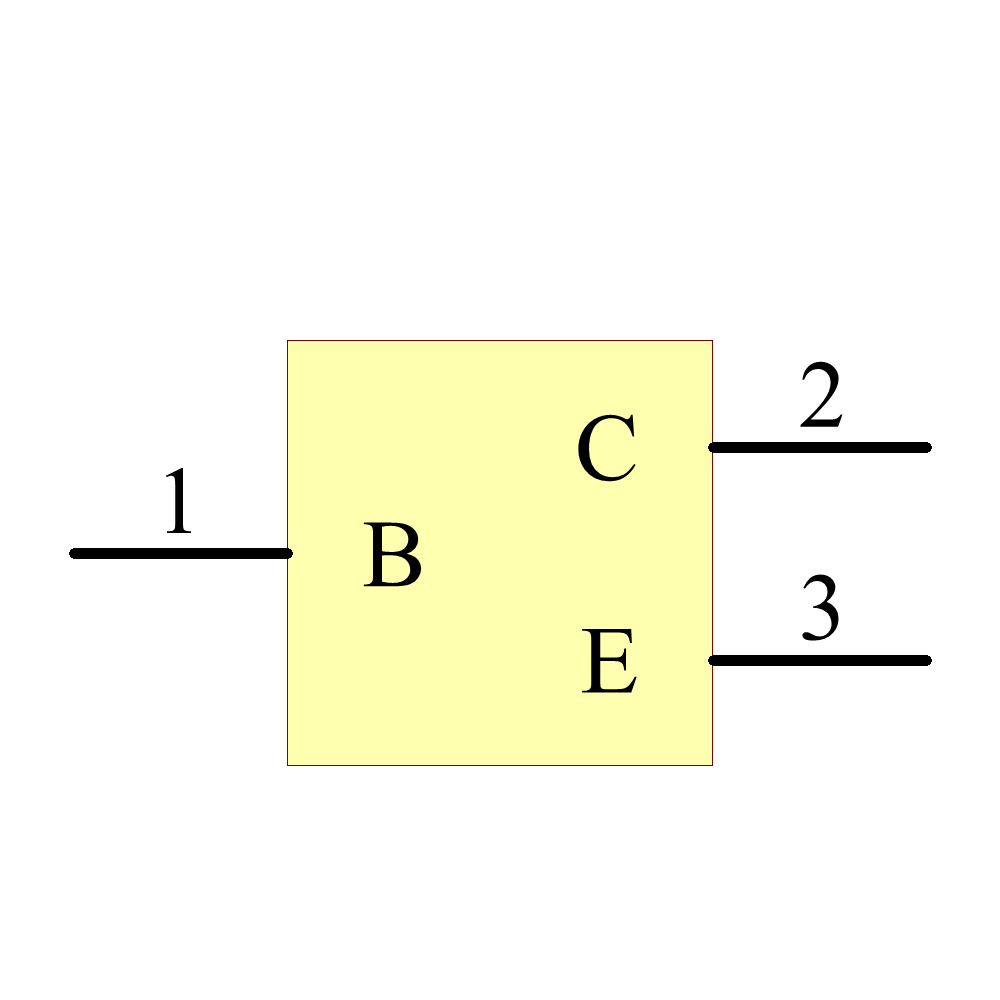

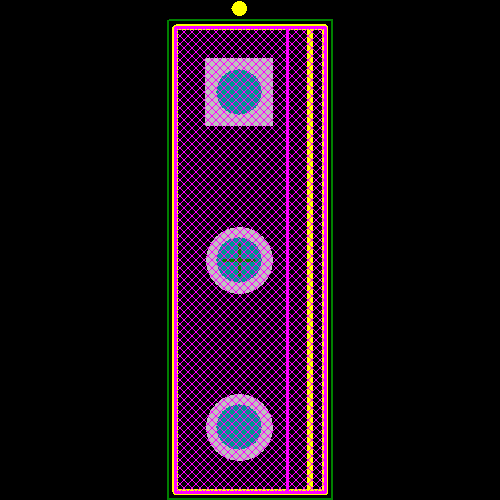

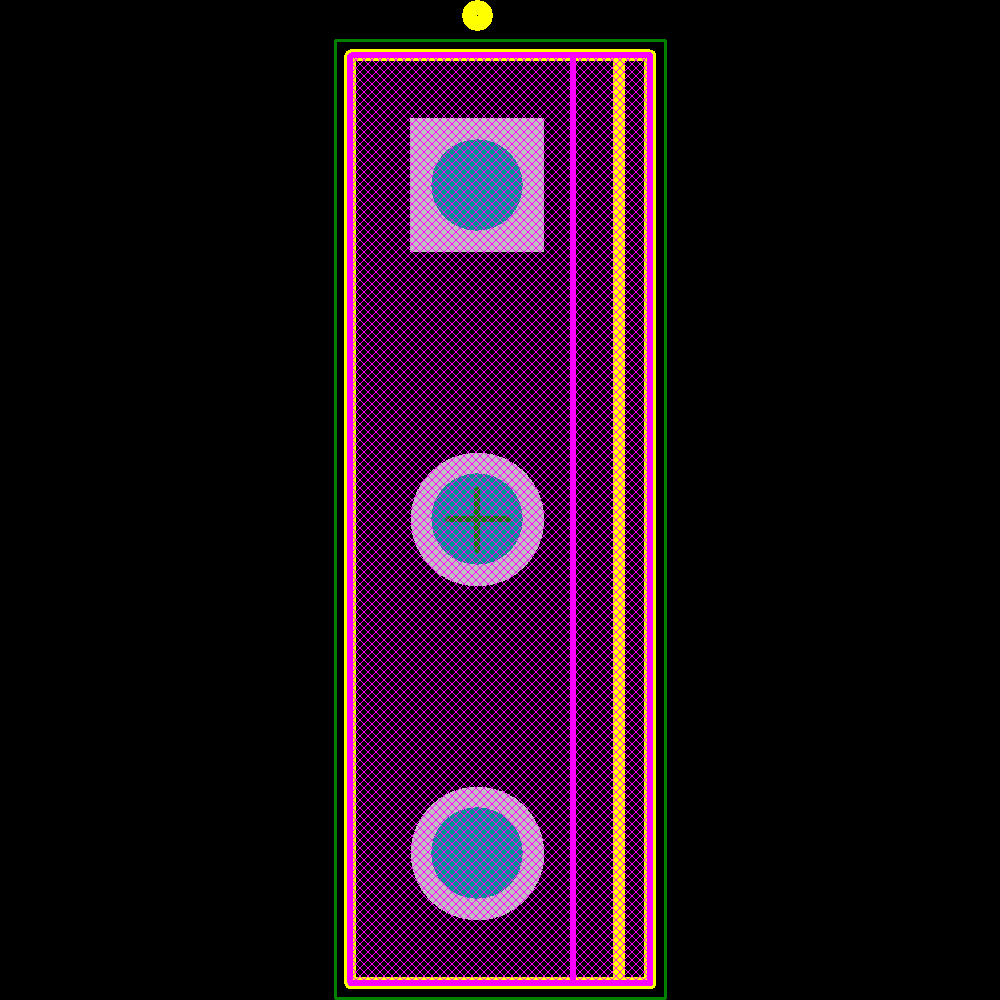

Images
