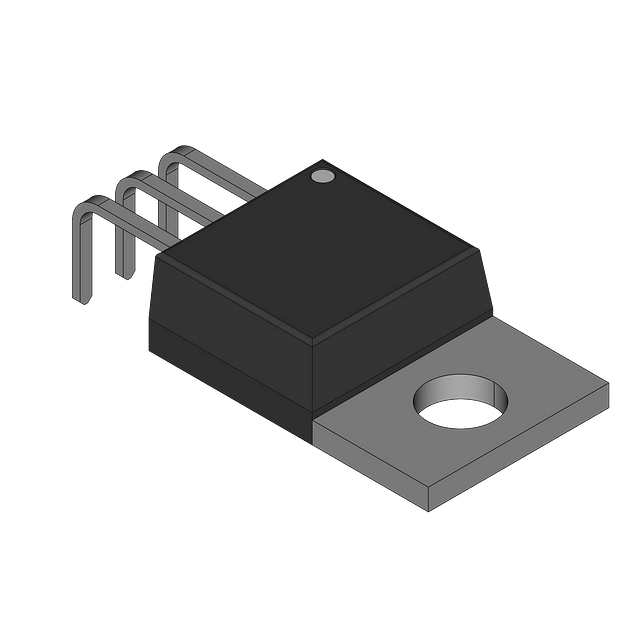

Case/Package	TO-220
China RoHS	Non-Compliant
Collector Base Voltage (VCBO)	-40V
Collector Emitter Breakdown Voltage	40V
Collector Emitter Saturation Voltage	1.5V
Collector Emitter Voltage (VCEO)	40V
Contact Plating	Tin
Country of Origin	Mainland China
Current Rating	-6A
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Emitter Base Voltage (VEBO)	-5V
Frequency	3MHz
Gain Bandwidth Product	3MHz
Height	6.35mm
hFE Min	15
Harmonized Tariff Schedule (HTS) Code	8541.29.00.95
Introduction Date	1993-03-03
Lead Free	Lead Free
Length	6.35mm
Lifecycle Status	Obsolete
Manufacturer Lifecycle Status	OBSOLETE
Max Breakdown Voltage	40V
Max Collector Current	6A
Max Frequency	3MHz
Max Operating Temperature	150°C
Max Power Dissipation	65W
Min Operating Temperature	-65°C
Mount	Through Hole
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Packaging	Bulk

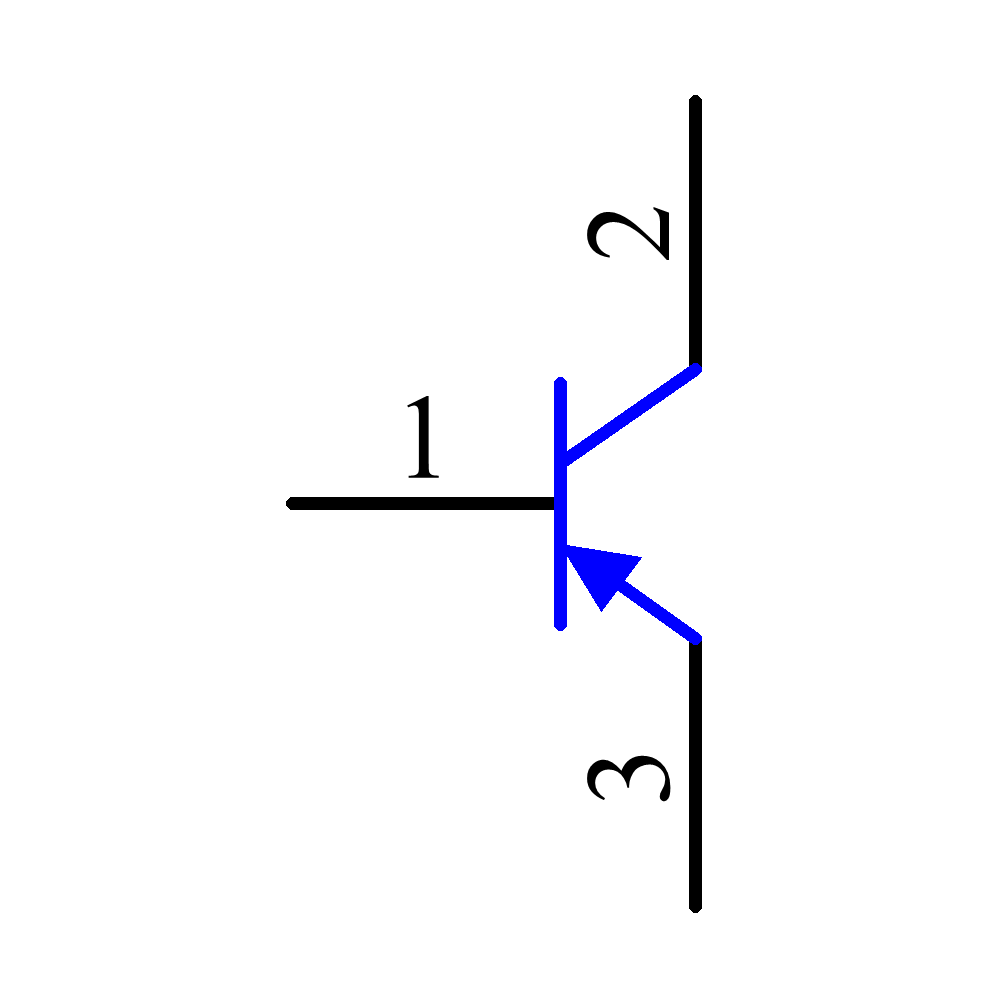

Polarity	PNP
Power Dissipation	2W
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Transition Frequency	3MHz
Voltage Rating (DC)	-40V
Weight	1.214g
Width	6.35mm

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
onsemi	TIP42G	EOL
Central Semiconductor	TIP42	Obsolete
Fairchild Semiconductor	KSB834	Obsolete
Fairchild Semiconductor	KSB707	Obsolete
onsemi	MJE5852	Obsolete
onsemi	D45VH10	Obsolete
Panasonic	2SB0945P	Obsolete
onsemi	MJE15033	Obsolete
onsemi	KSE2955T	Obsolete
onsemi	BD240BTU	Obsolete

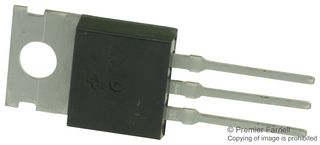

TIP42 - onsemi

Bipolar Junction Transistor (BJT) PNP 40V 6A 65W TO-220-3
